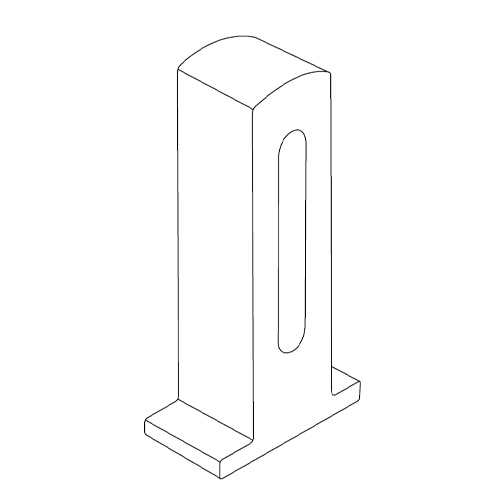

SILVER BULLET BASE PIN
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 014-0001 | Silver Bullet Base Pin | box | 500 | 16.00 | 10000 |

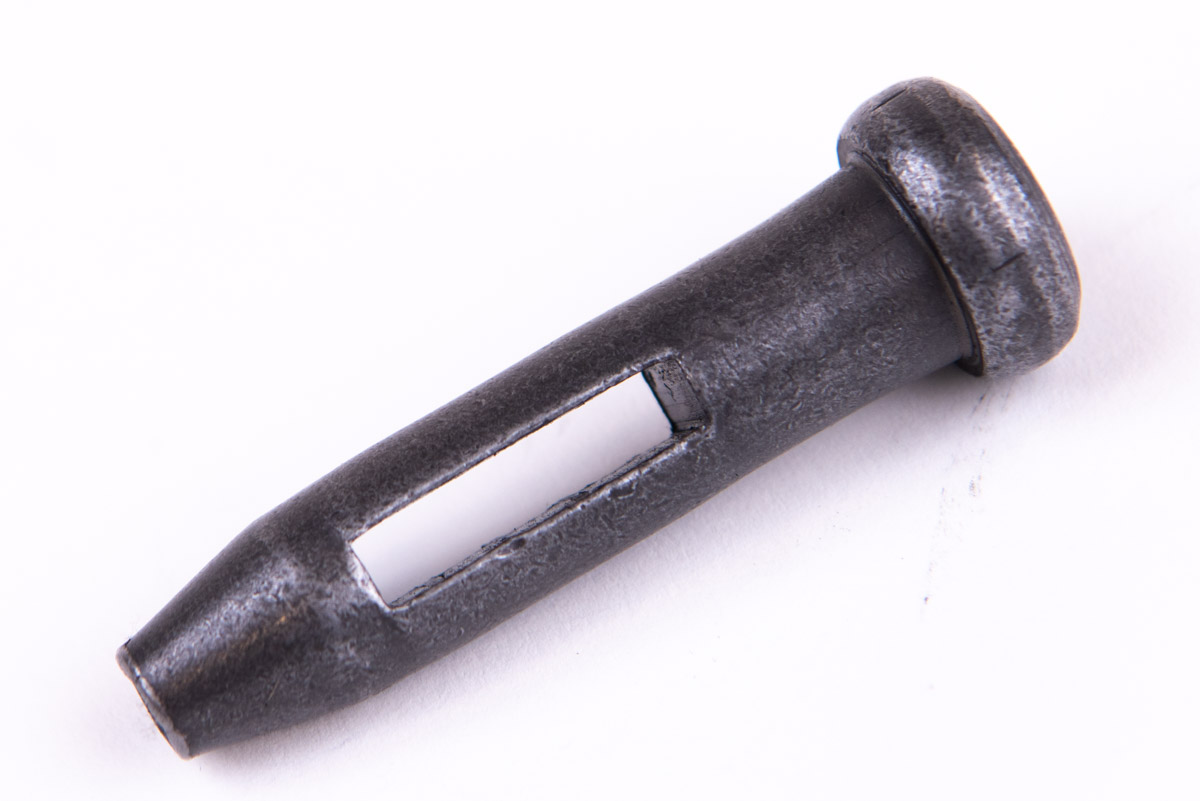

ROUND HEAD PIN
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 065-1002 | Standard Rnd Head Pin | pail | 250 | 58.00 | 9000 |

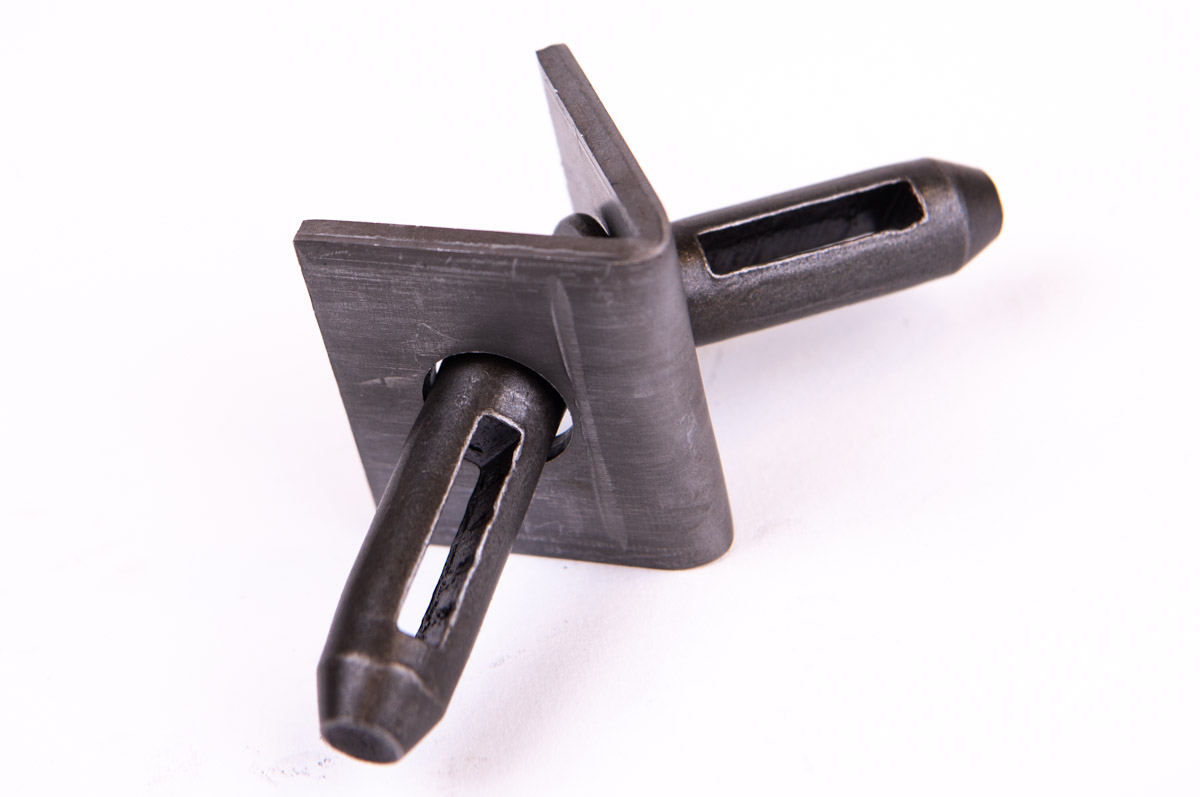

45° ANGLE PIN
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 043-1006 | 45 Angle Pin | pail | 50 | 30.00 | 3000 |

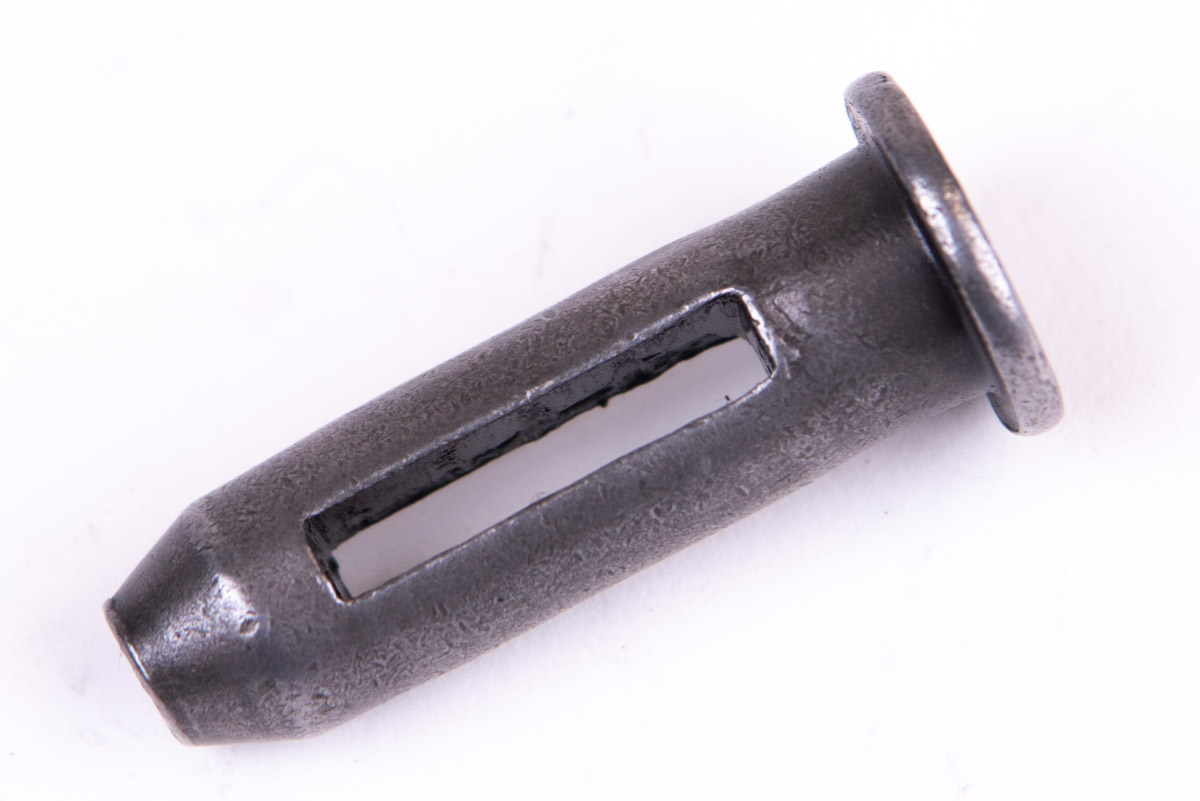

FLAT HEAD PIN
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 065-1001 | Flat Head Pin | pail | 250 | 38.00 | 5000 |

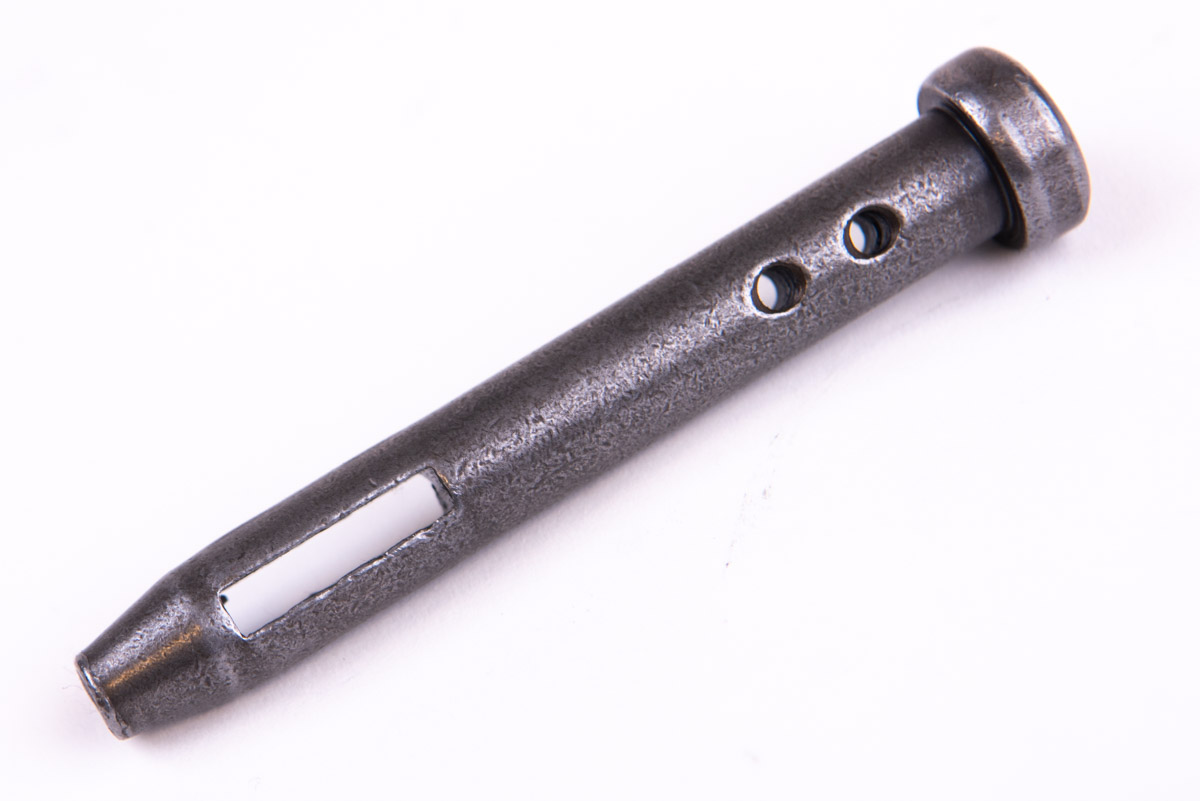

COMBO FILLER PIN
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 065-1003 | Combo Filler Pin | pail | 75 | 30.00 |

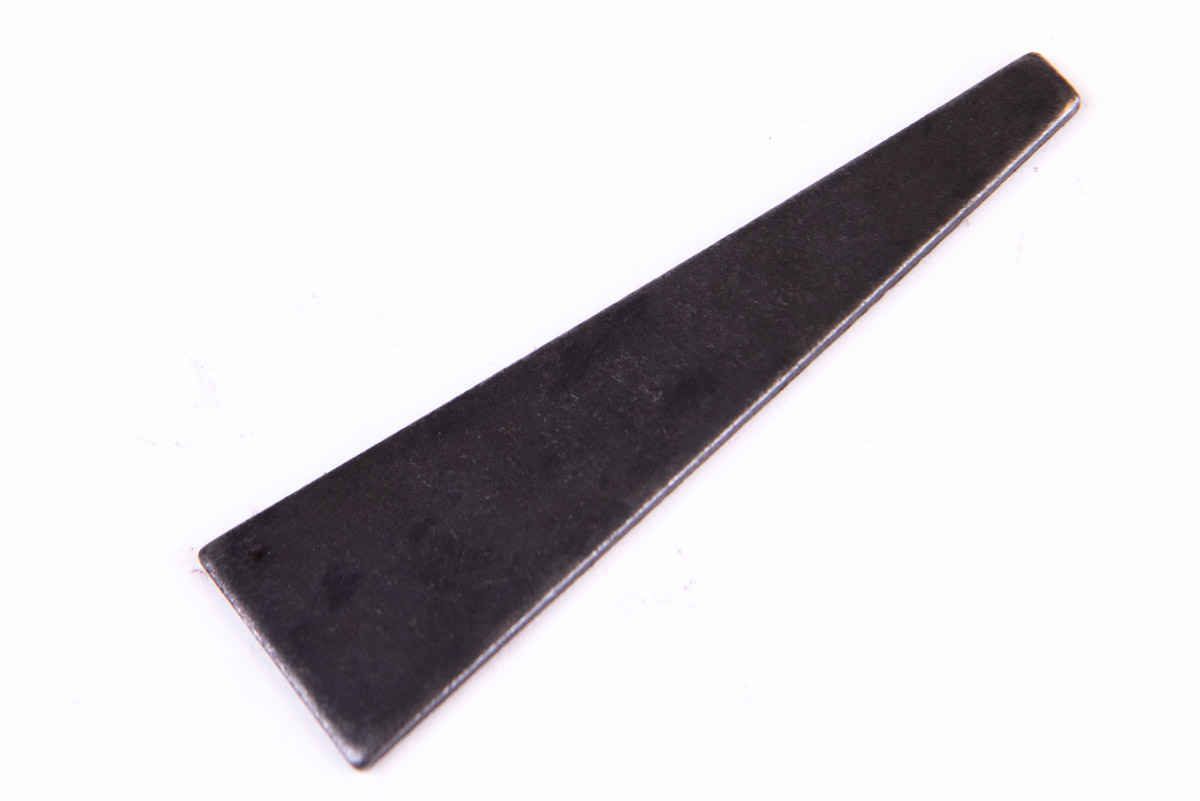

FLAT WEDGE
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 013-0003 | Flat Wedge | pail | 250 | 26.00 | 25000 |

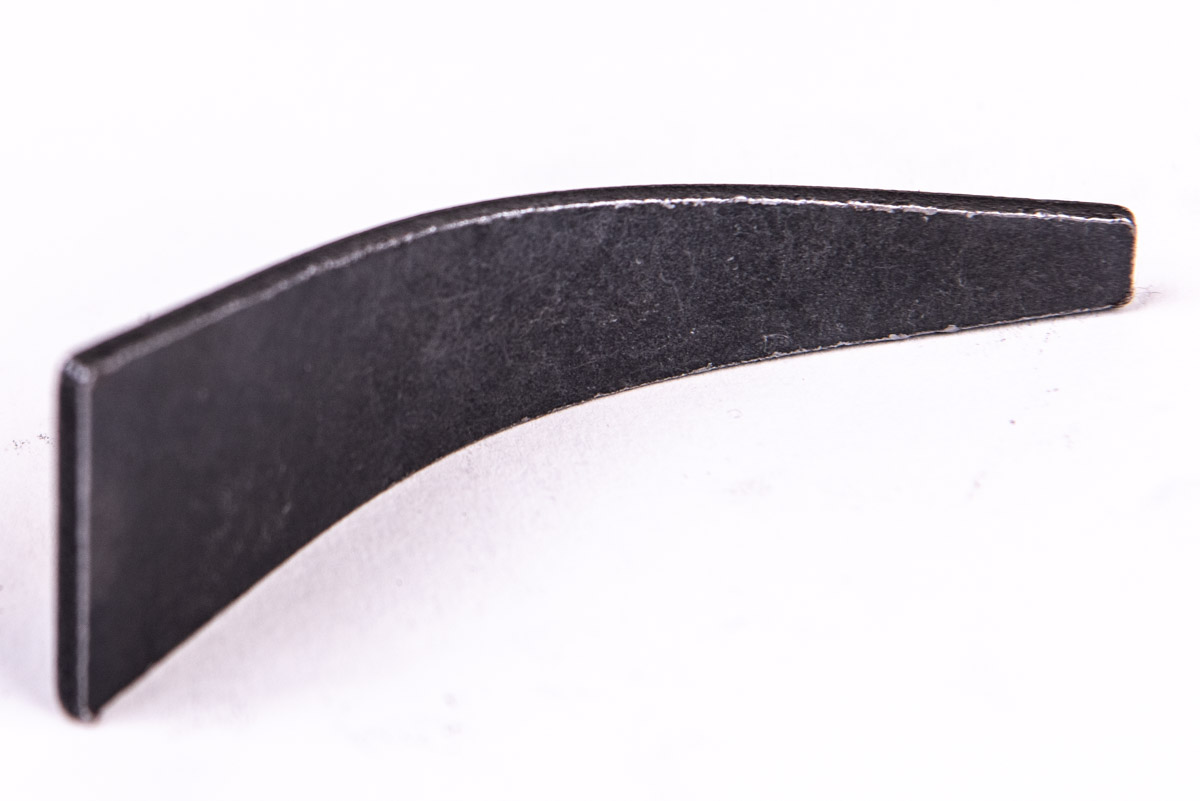

CURVED WEDGE
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 013-0003 | Flat Wedge | pail | 250 | 26.00 | 25000 |

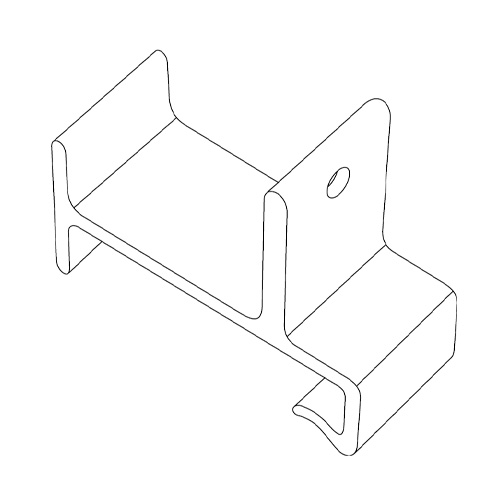

ALUMINUM CAP CLIP
The Steel/Plywood Cap Clip is used for extending the height of the forms. Simply snap cap clip to the top of forms, insert lumber into cap clip and drive screw through cap clip into lumber. Use one cap clip per form. Accepts 2x lumber.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 014-0002 | Aluminum Cap Clip | box | 100 | 8.00 | 5000 |

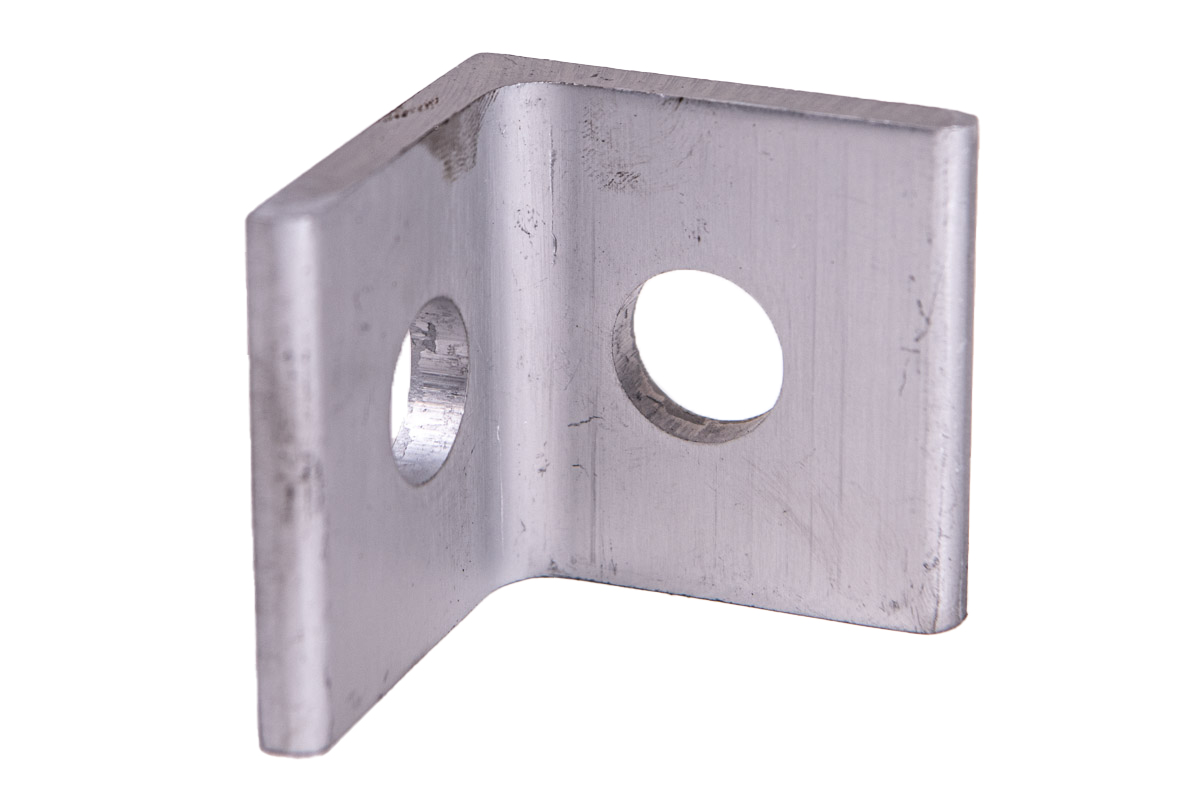

90° ANGLE CLIP
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 014-0003 | 90º Angle Clip | box | 100 | 17.00 | 5000 |

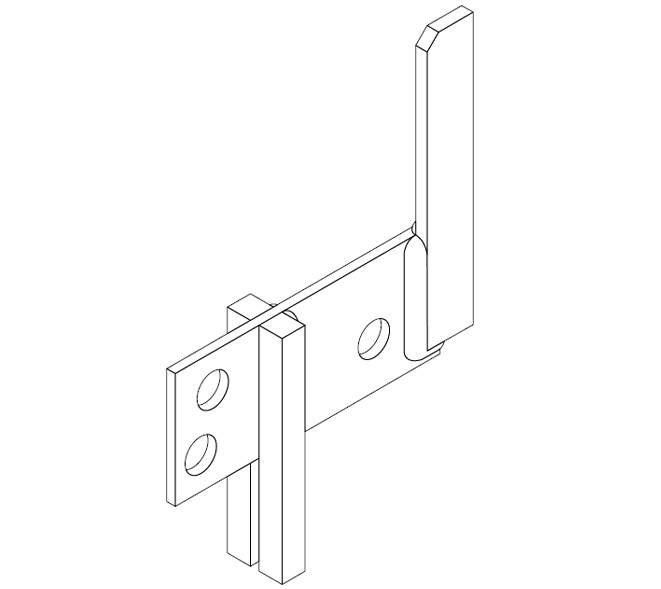

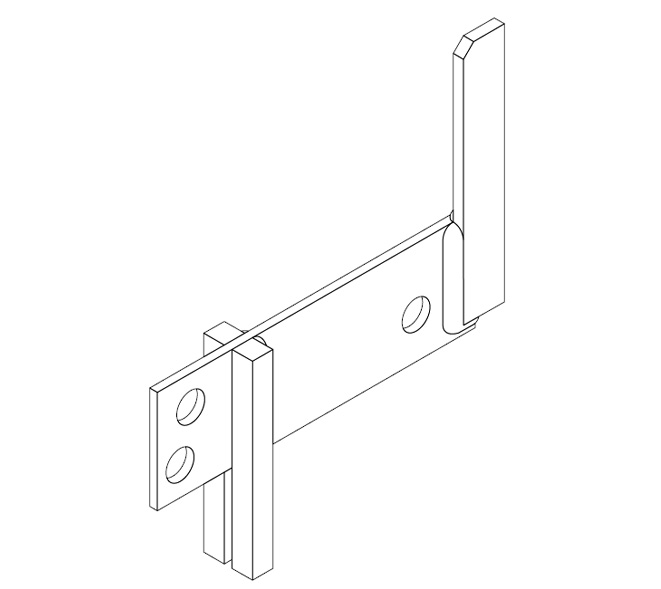

2x4 Waler Bracket
2x6 Waler Bracket

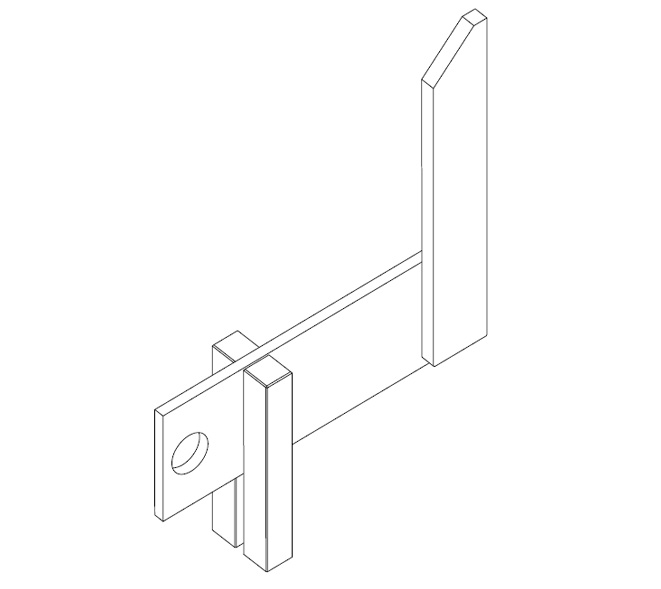

2x4 Single Hole Waler Bracket
WALER BRACKETS
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 066-1001 | 2 x 4 Waler Bracket | each | 1 | 1.60 | |
| 066-1101 | 2 x 4 Single Hole Waler Bracket | each | 1 | 1.60 | |
| 066-2001 | 2 x 6 Waler Bracket | each | 1 | 1.90 | |
| 066-3001 | 2 x 8 Waler Bracket | each | 1 | 2.30 | |
| 066-4001 | 2 x 10 Waler Bracket | each | 1 | 2.60 |

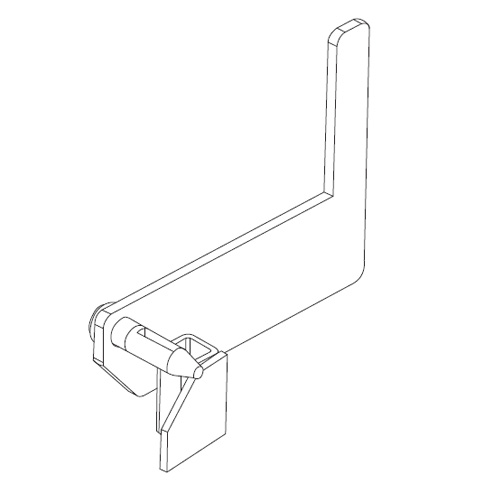

WEDGELESS WALER
Fast, self-locking, wedgeless waler for aluminum forms. Fewer wedges to use/lose.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 068-0006 | 6" Wedgeless Waler | each | 1 | 2.40 |

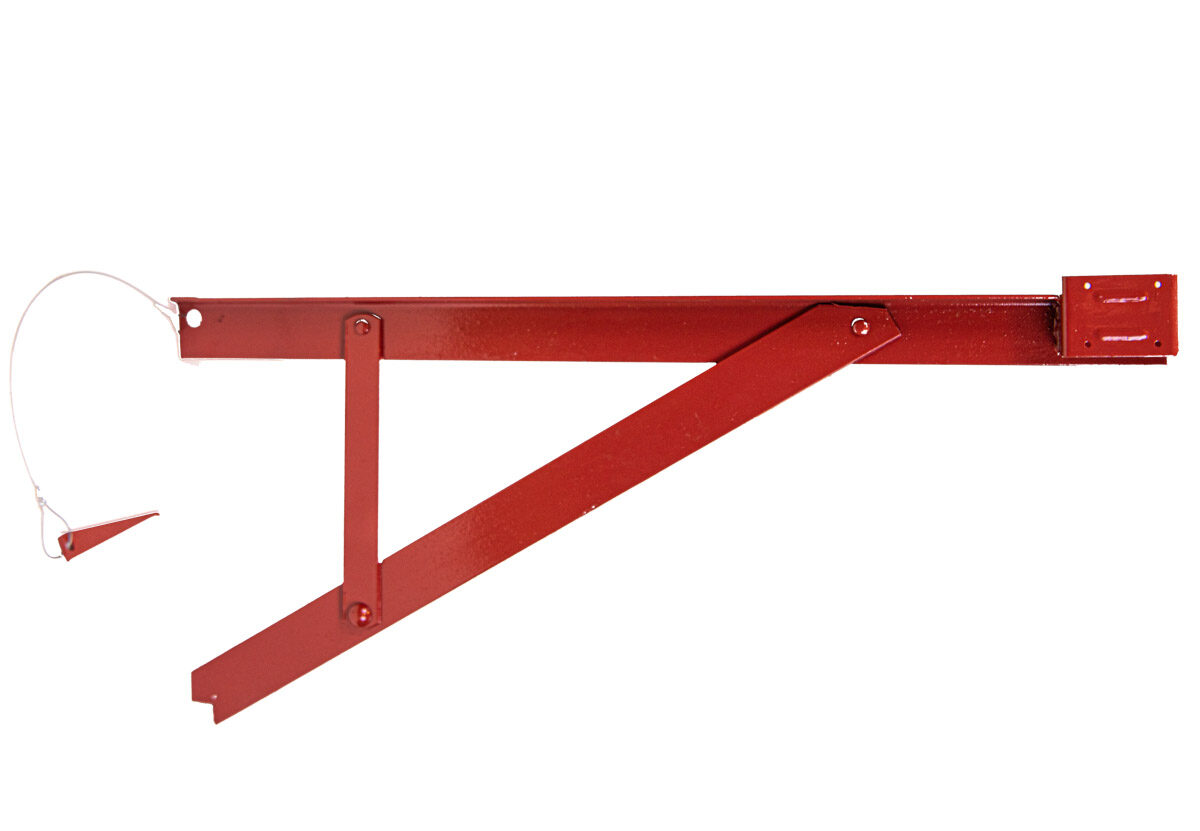

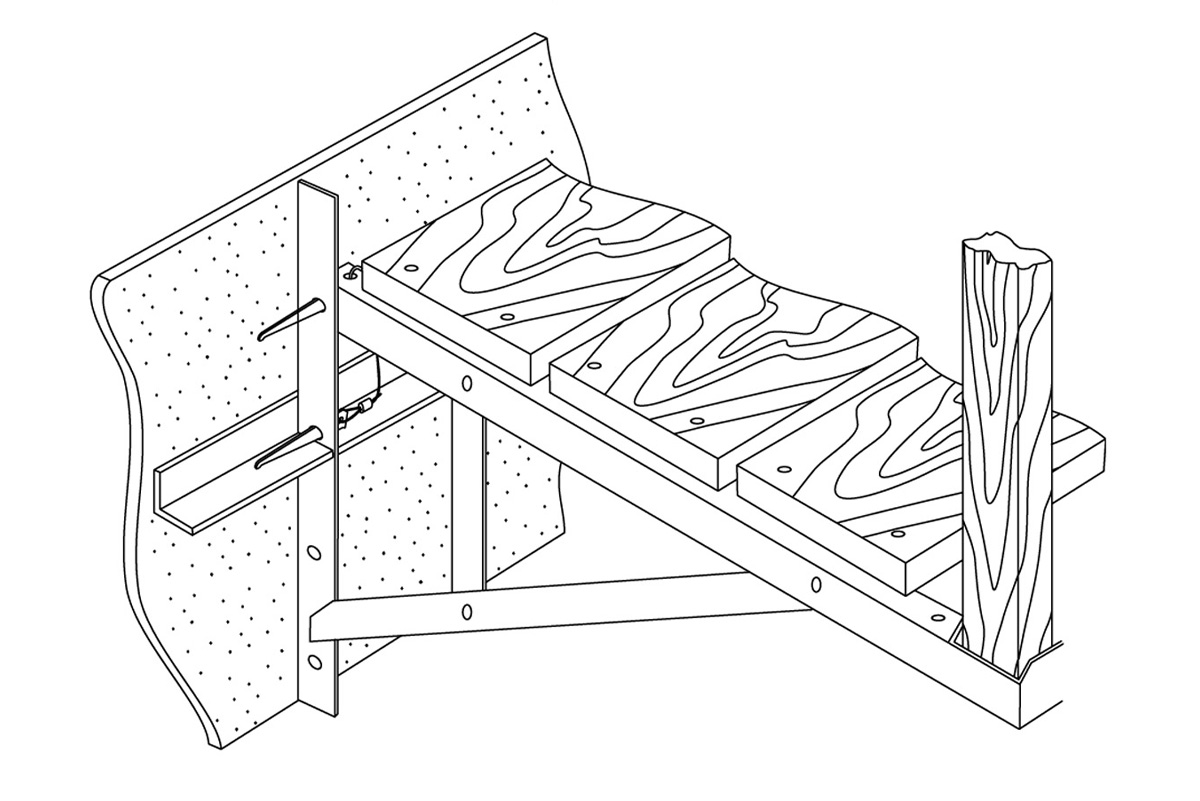

SCAFFOLD BRACKET
The Scaffold Bracket provides a safe working area for the contractor. The maximum safe load of the scaffold bracket is 500 lbs. (4-to-1 safety factor). Do not space more than 8 feet apart.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 062-7800 | Scaffold Bracket | each | 1 | 15.00 | 100 |

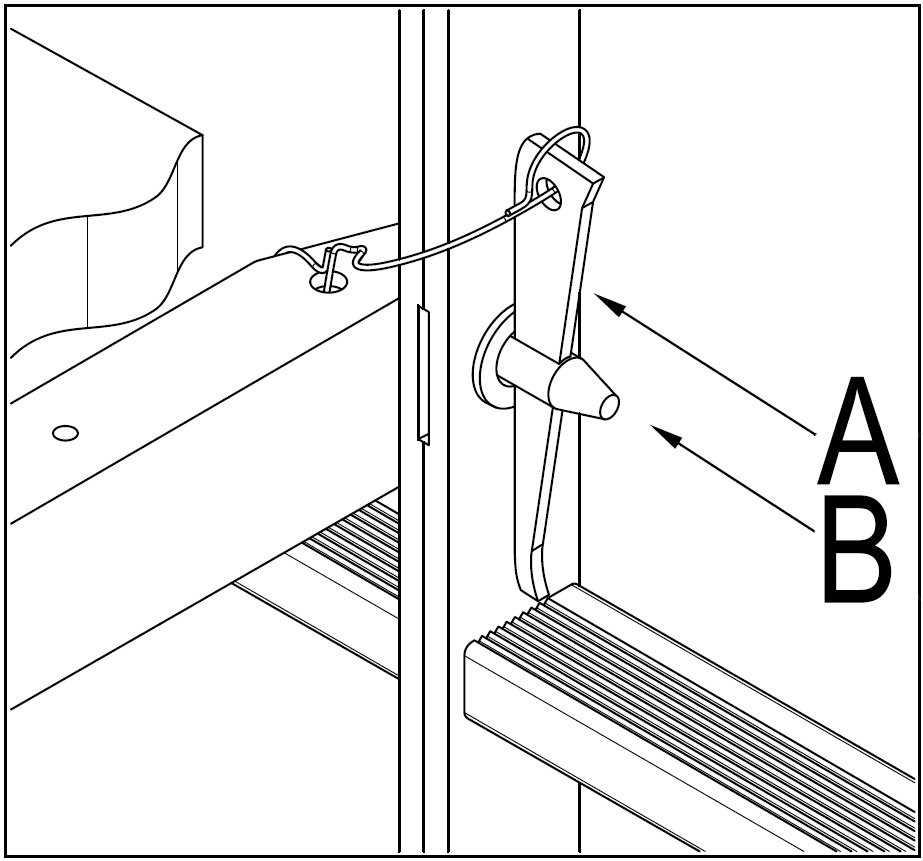

A= S-Wedge 054-2011 must be used
B= Round Head Pin
