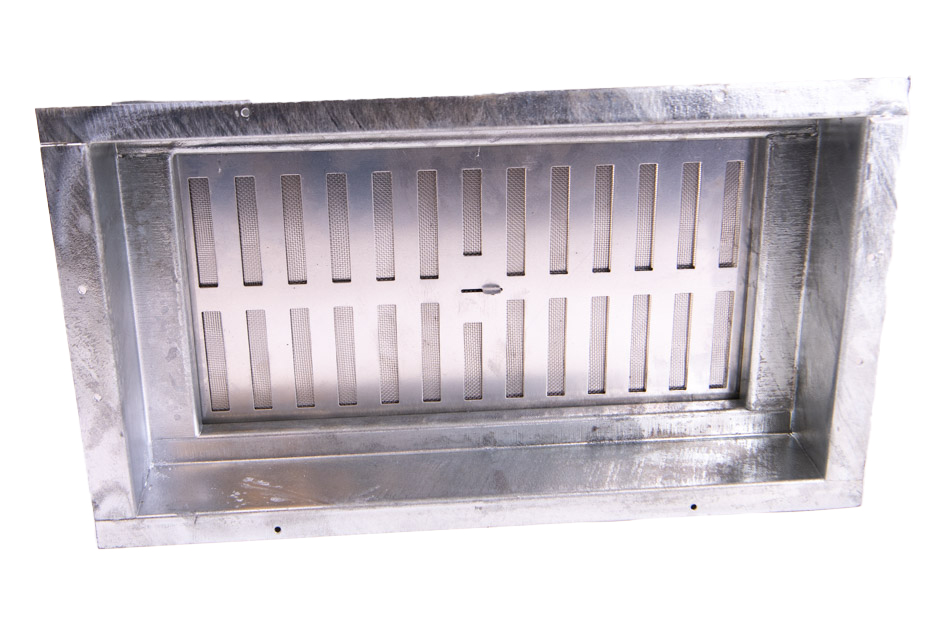

Foundation window vent
foundation window vent
This complete ventilation system is ready to install in a selfcontained frame for ease in adapting to any wall condition. Available in enamel or hot-dip galvanized finishes.
BAKED ON ENAMEL FINISH
- Steel main frame is finished with a durable baked on enamel finish or a hot-dip galvanized finish
OPENS AND CLOSE WITH EASE
- allowing ventilation in any season
STEEL FRAME
- rugged and dependable
BUILT FOR "TRUE WALL" INSTALLATION
ALUMINUM INSERT
| Description | Part Number | Unit | Sold As | Unit Wgt | Skid Qty |
|---|---|---|---|---|---|
| Steel 8" Nom Enamel | 511-011010008 | each | 1 | 10.80 | 80 |
| Steel 8" Full Enamel | 511-012010008 | each | 1 | 10.80 | 80 |
| Steel 8" Nom Galv. | 511-011020008 | each | 1 | 10.80 | 80 |
| Steel 8" Full Galv | 511-012020008 | each | 1 | 10.80 | 80 |
| Description | Part Number | Unit | Sold As | Unit Wgt | Skid Qty |
|---|---|---|---|---|---|
| Steel 10" Nom Enamel | 511-011010010 | each | 1 | 14.00 | 60 |
| Steel 10" Full Enamel | 511-012010010 | each | 1 | 14.00 | 60 |
| Steel 10" Nom Galv. | 511-011020010 | each | 1 | 14.00 | 60 |
| Steel 10" Full Galv. | 511-012020010 | each | 1 | 14.00 | 60 |
| Alum. Insert Only | 511-013000001 | each | 1 | 0.75 |
All 10" Nominal/Full galvanized and enamel vents will have a factory-installed galvanized extension on the inside of the vent.

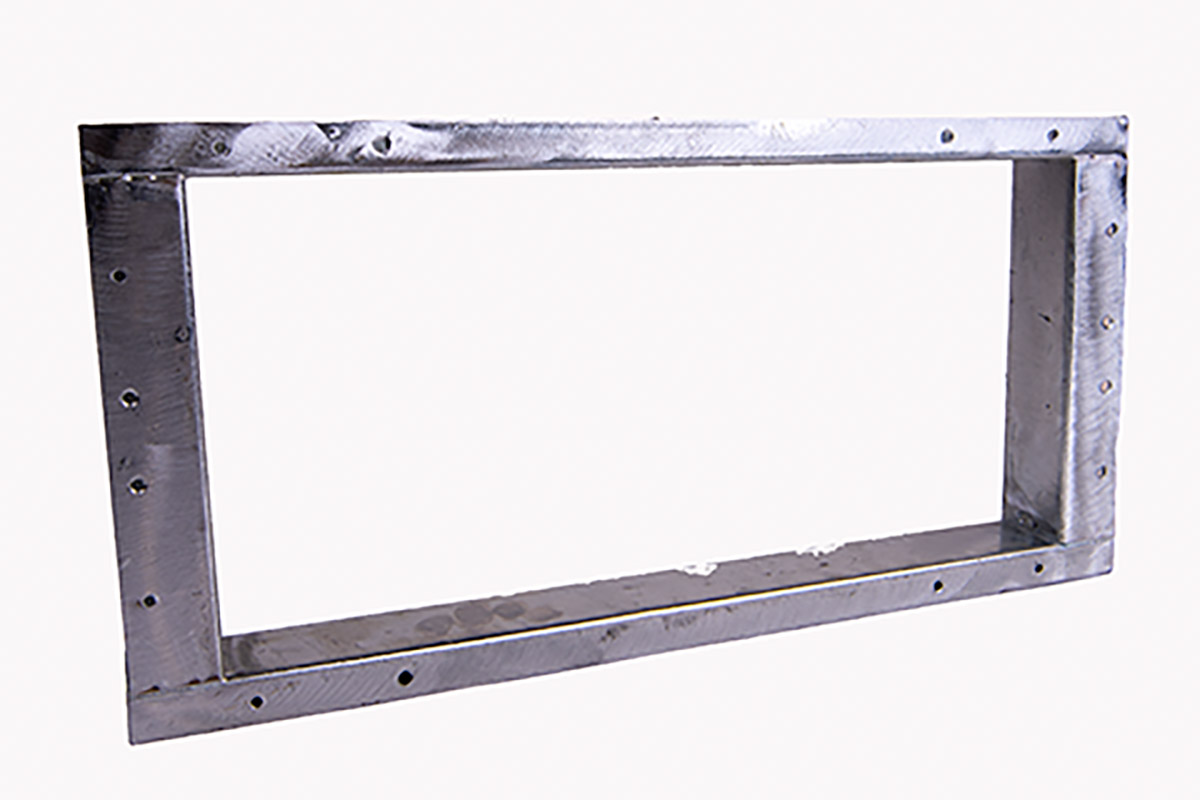

foundation vent EXTENSION
Foundation Vent Extension is used to make 10" Nominal and 10" Full Foundation Vents by attaching this extension to 8" Nominal and 8" Full Foundation Vents. The Extension is attached to the vents by using screws that are included with the purchase of an Extension. Extension is hot-dip galvanized.
| Description | Part Number | Unit | Sold As | Unit Wgt | Skid Qty |
|---|---|---|---|---|---|
| 2" Vent Ext.-Galv. | 511-013030205 | each | 1 | 3.00 |
