Elite Series Steel/Plywood Panels & Fillers w/ HDO

Winning Foundations start with elite Forming systems

Concrete professionals know Elite Forming Systems are the best tools for the job: setting more foundations in less time and with fewer issues. That's because Elite is built tough to exact standards. Rugged steel frames are robotically welded for consistent strength and fit across all panels, fillers and corners. Exclusive DuraCoat powder coating helps keep the frame rust-free under the harshest conditions. Top grade 1/2" HDO plywood is machine riveted to rugged 60,000 psi rolled steel frames for smooth, flat surfaces. Long-lasting performance makes the Elite Series a better investment.

Specs:

DuraCoat powder coated finish for faster clean-up, greater weatherability
Full line of panel heights, filler widths, corners, angles and metal fillers for creating virtually any form layout quickly and efficiently
Rugged 60,000 psi rolled steel frame exceeds industry standards
A full 2″ angle cross member assures unsurpassed frame strength and plywood support
Dado slots for tie placement are located at 12″ on center. A new feature of the Elite Series is Dado slots at 6″ and 18″ from each end of panel
Wedgebolt/accessory slots located at 6″ on center
EZ Lift handles for easier transport, set up and take down
Manufactured to precise dimensions, for consistent, accurate form alignment, with no grout leakage
No special tools required; fits most other systems
Backed by EMI world-class service
2-to-1 safety factor
Maximum pour pressure of 1,000 pounds per square foot

10' HEIGHT

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
24" x 10' Panel	149-2410	each	1	99.00	40
22" x 10' Filler	149-2210	each	1	94.00	40
20" x 10' Filler	149-2010	each	1	88.00	40
18" x 10' Filler	149-1810	each	1	82.00	40
16" x 10' Filler	149-1610	each	1	76.00	40
14" x 10' Filler	149-1410	each	1	70.00	40
12" x 10' Filler	149-1210	each	1	64.00	80
10" x 10' Filler	149-1010	each	1	58.00	80
8" x 10' Filler	149-0810	each	1	52.00	80
6" x 10' Filler	149-0610	each	1	46.00	80
5" x 10' Filler	149-0510	each	1	44.00	80
4" x 10' Filler	149-0410	each	1	42.00	80

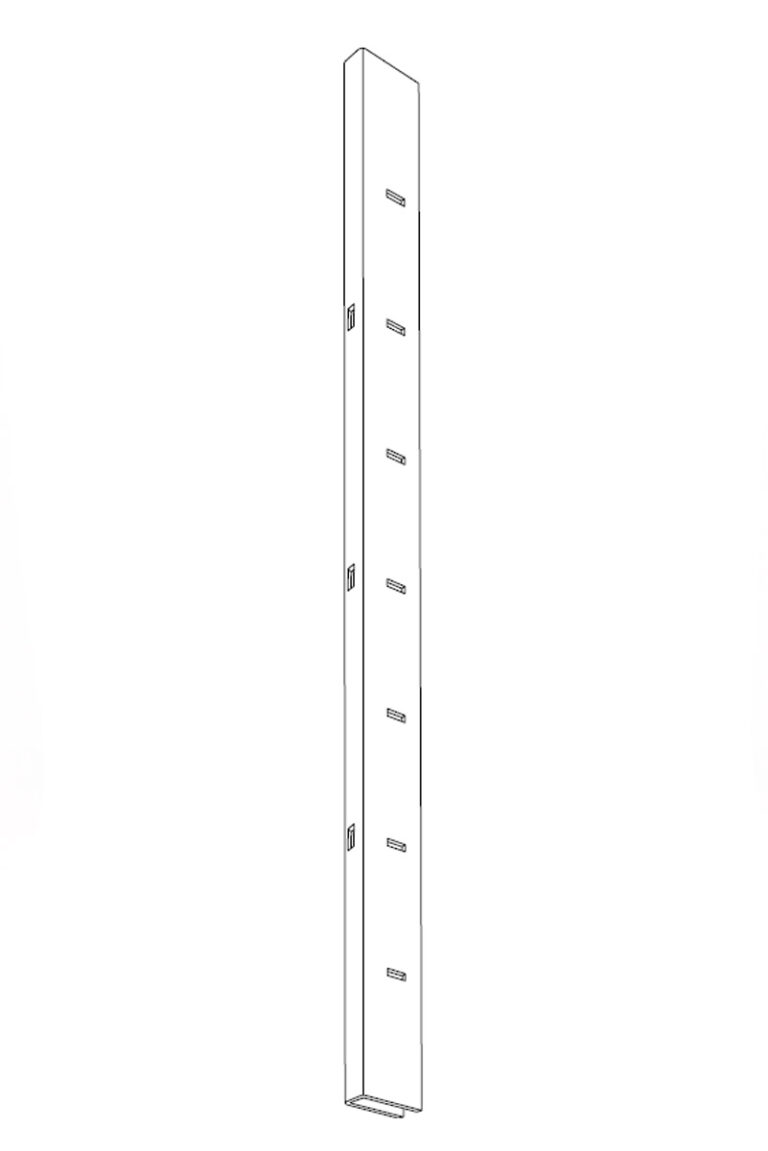

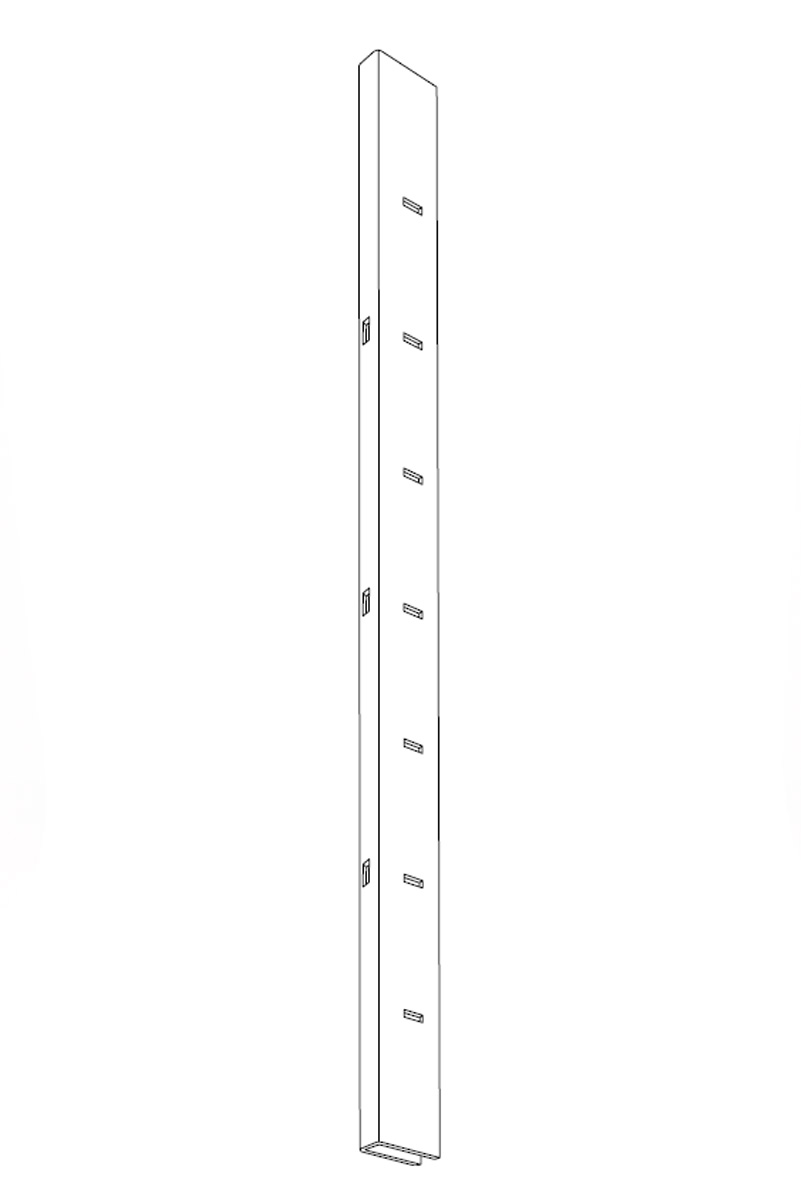

2"x 10' Metal Filler	058-0210	each	1	30.00	100
1 1/2"x 10' Metal Filler	058-0110	each	1	27.00	100
1" x 10' Metal Filler	058-0010	each	1	24.00	100

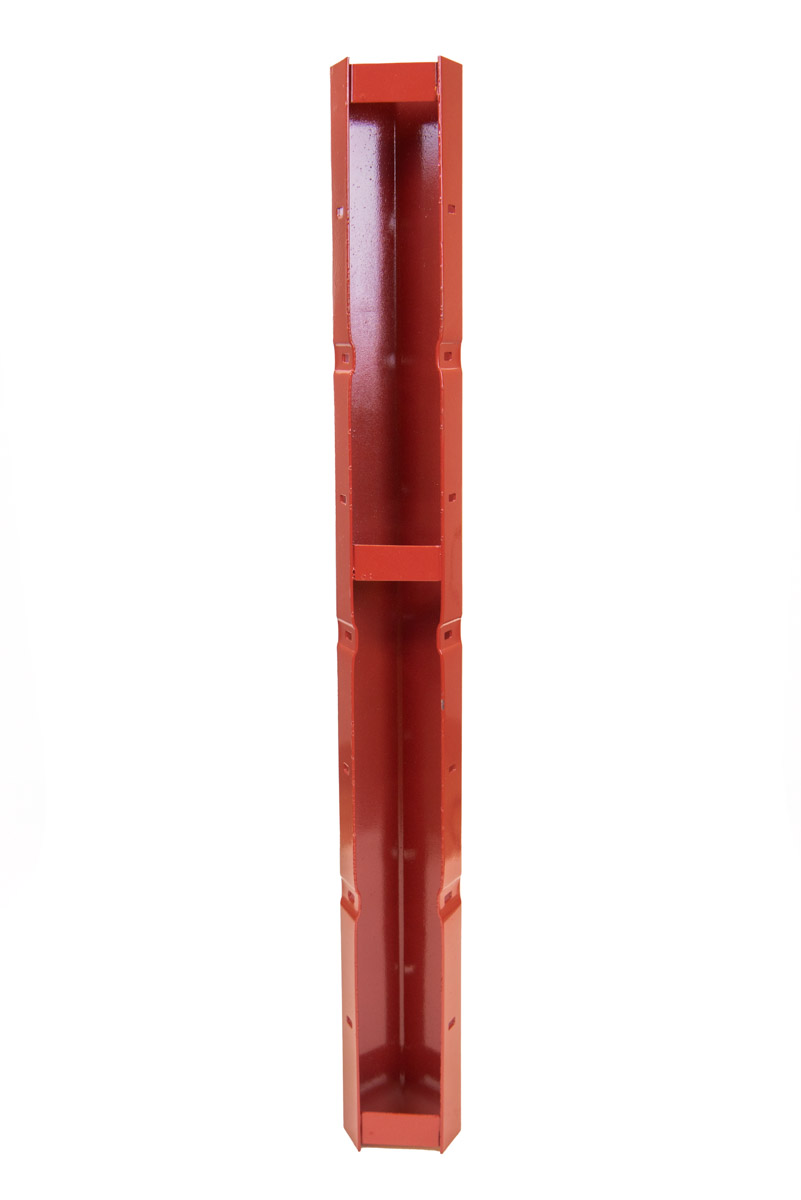

6"x10' Inside Corner	057-0610	each	1	82.00	48

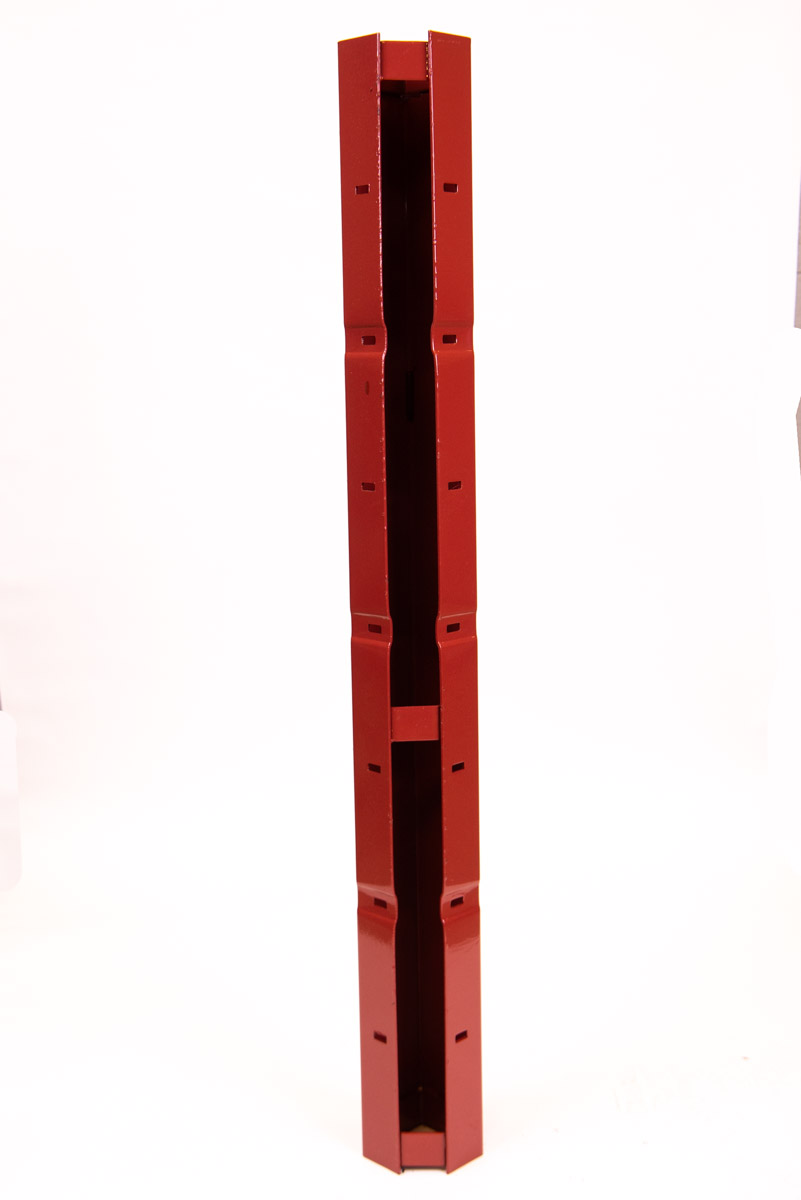

4"x10' Inside Corner	057-0410	each	1	62.00	60

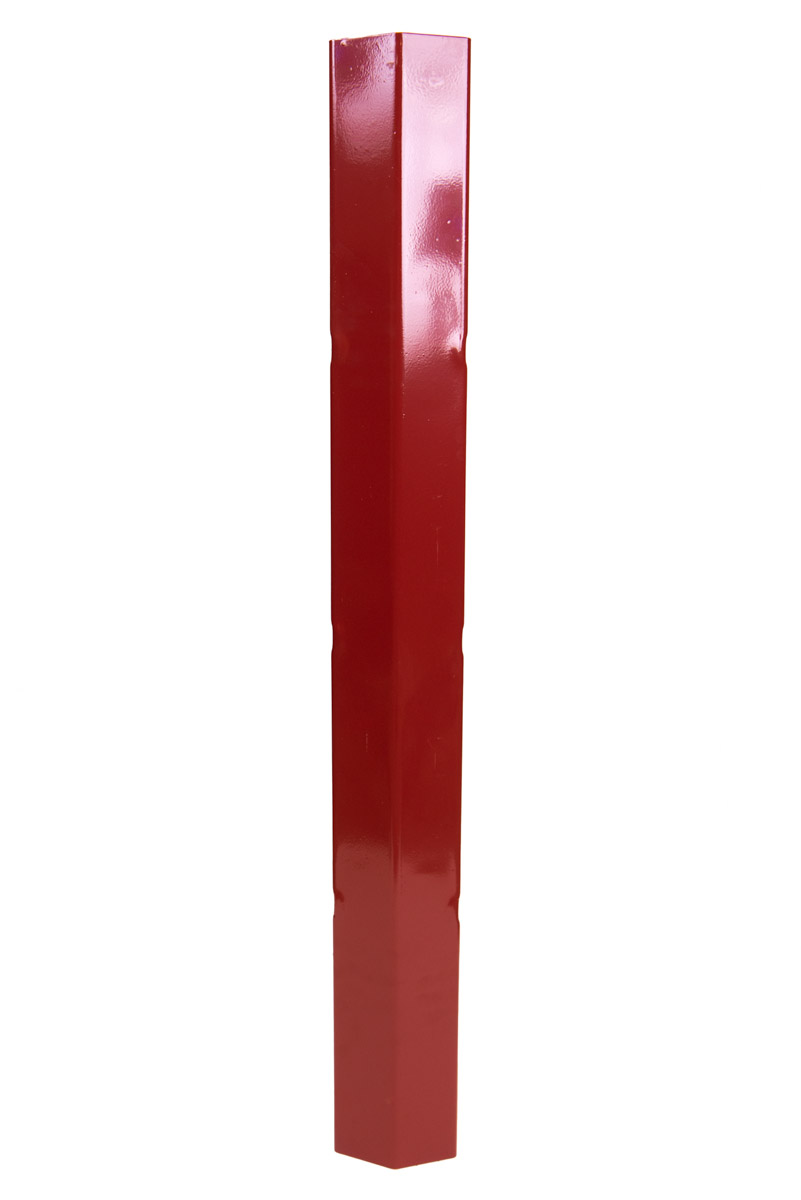

10' Inside Bay Corner	057-2010	each	1	43.00	64

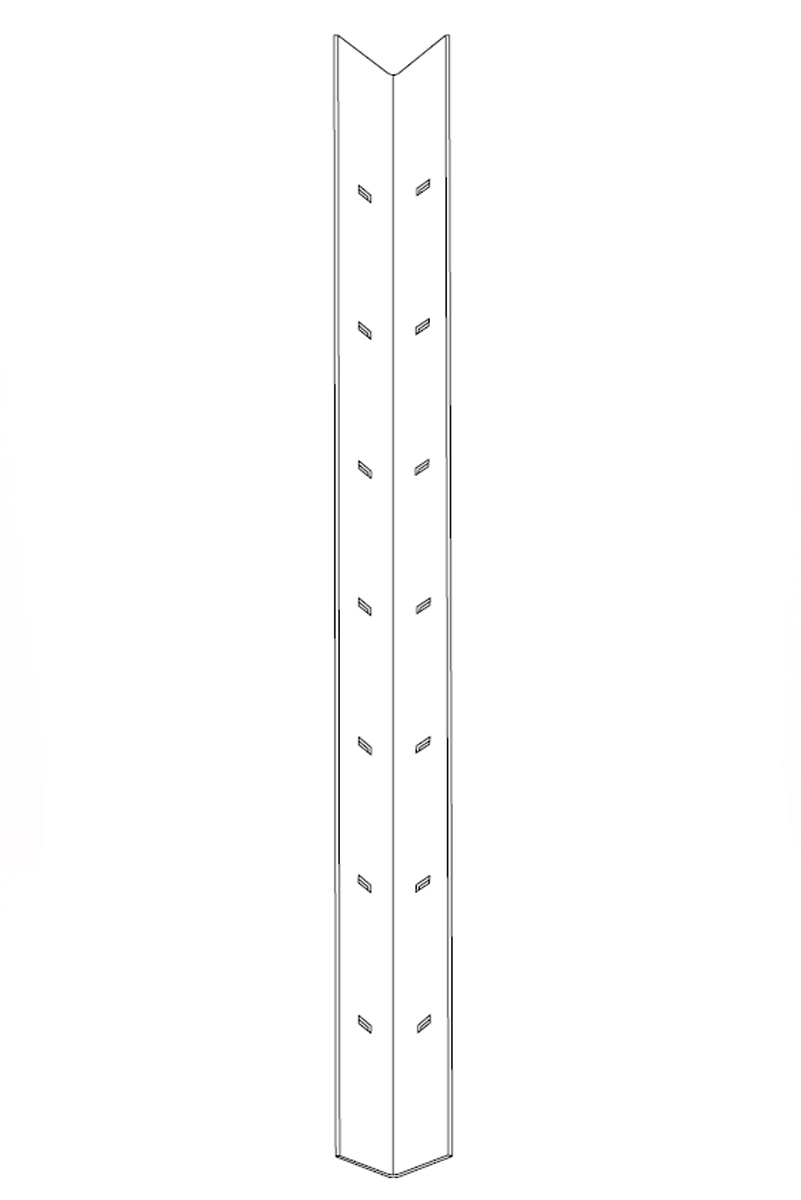

10' Outside Corner	059-0010	each	1	32.00	200

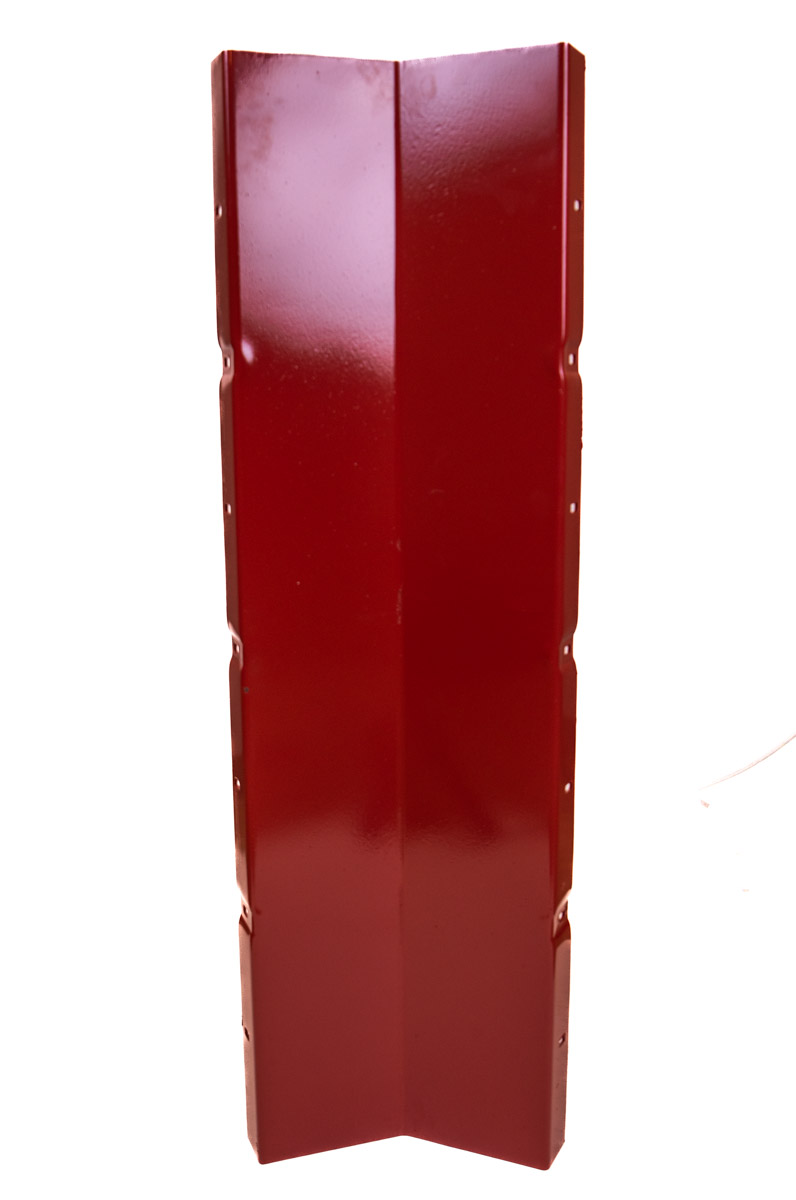

10' Outside Bay Corner	059-1110	each	1	98.00	24

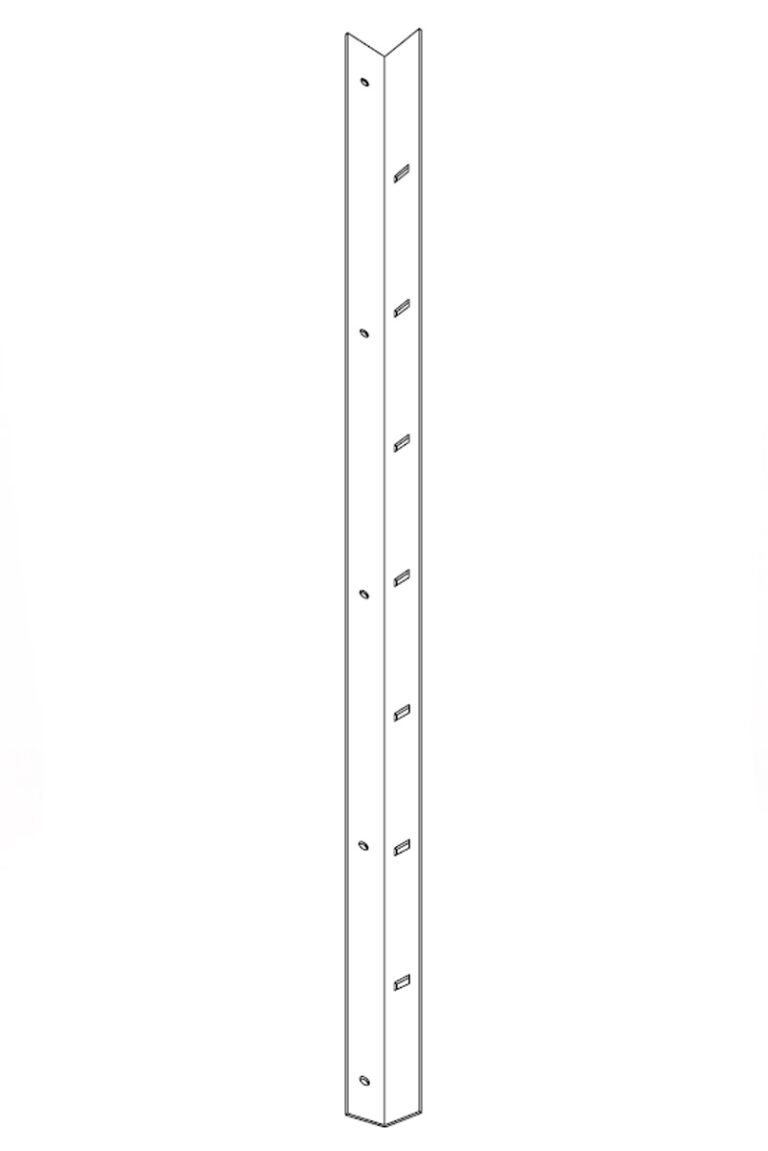

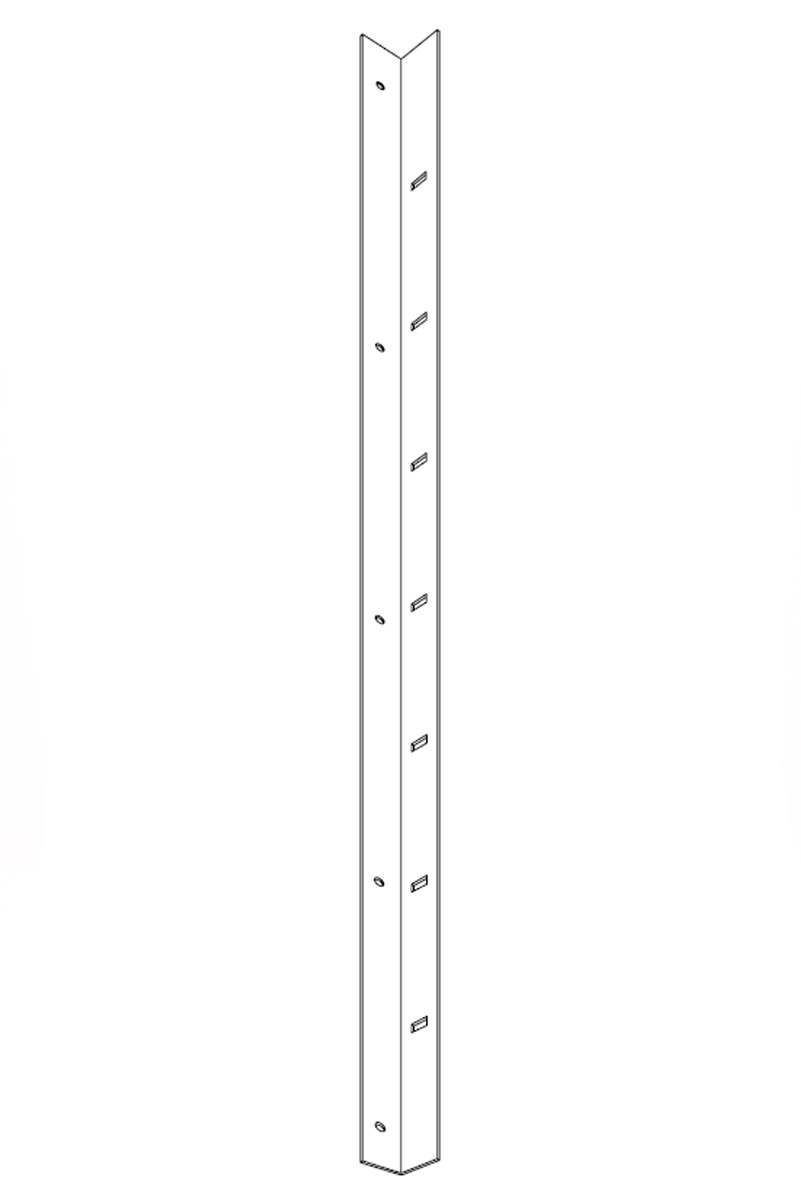

10' Filler Angle	056-0010	each	1	14.00	200

9' HEIGHT

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
24" x 9' Panel	149-2409	each	1	94.00	40
22" x 9' Filler	149-2209	each	1	84.00	40
20" x 9' Filler	149-2009	each	1	82.00	40
18" x 9' Filler	149-1809	each	1	80.00	40
16" x 9' Filler	149-1609	each	1	71.00	60
14" x 9' Filler	149-1409	each	1	68.00	60
12" x 9' Filler	149-1209	each	1	62.00	80
10" x 9' Filler	149-1009	each	1	55.00	80
8" x 9' Filler	149-0809	each	1	49.00	100
6" x 9' Filler	149-0609	each	1	44.00	100
5" x 9' Filler	149-0509	each	1	42.00	100
4" x 9' Filler	149-0409	each	1	39.00	100
2" x 9' Filler	058-0209	each	1	26.00	100
1-1/2" x 9' Metal Filler	058-0109	each	1	24.00	100
1" x 9' Metal Filler	058-0009	each	1	21.00	100
6" x 9' Inside Corner	057-0609	each	1	75.00	48
4" x 9' Inside Corner	057-0409	each	1	54.00	60

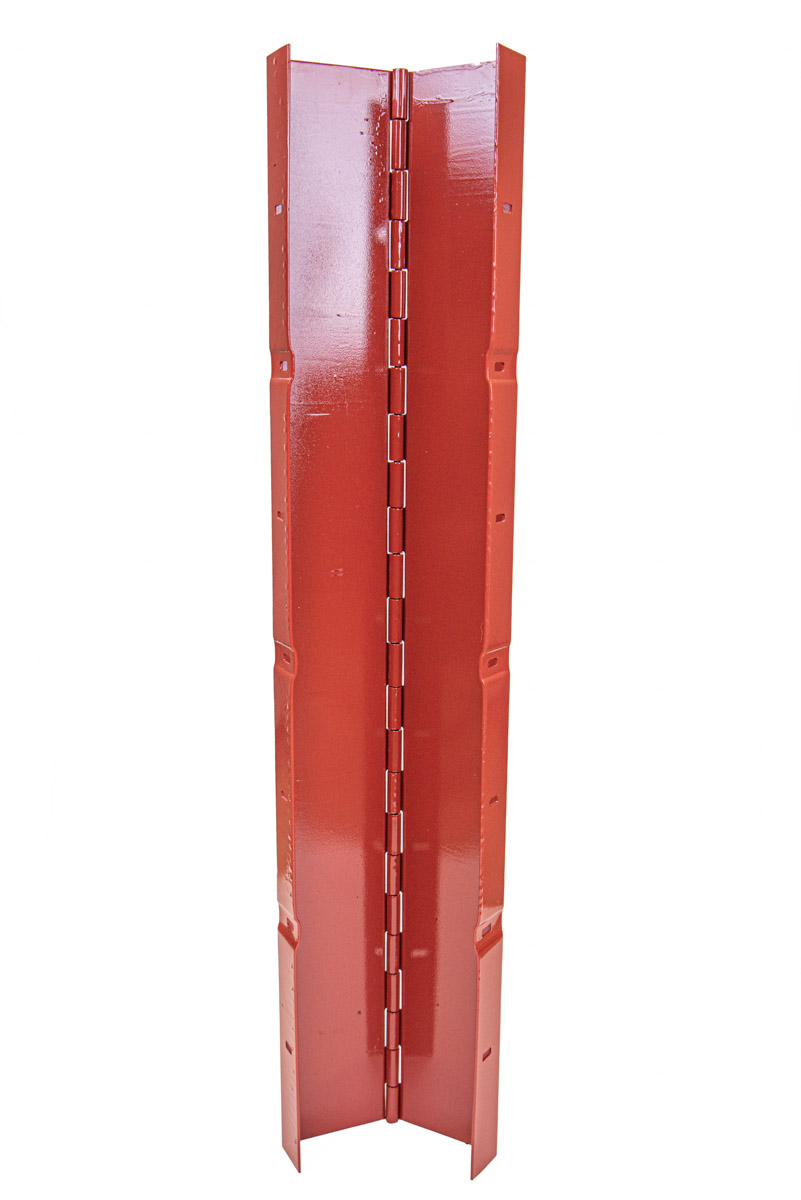

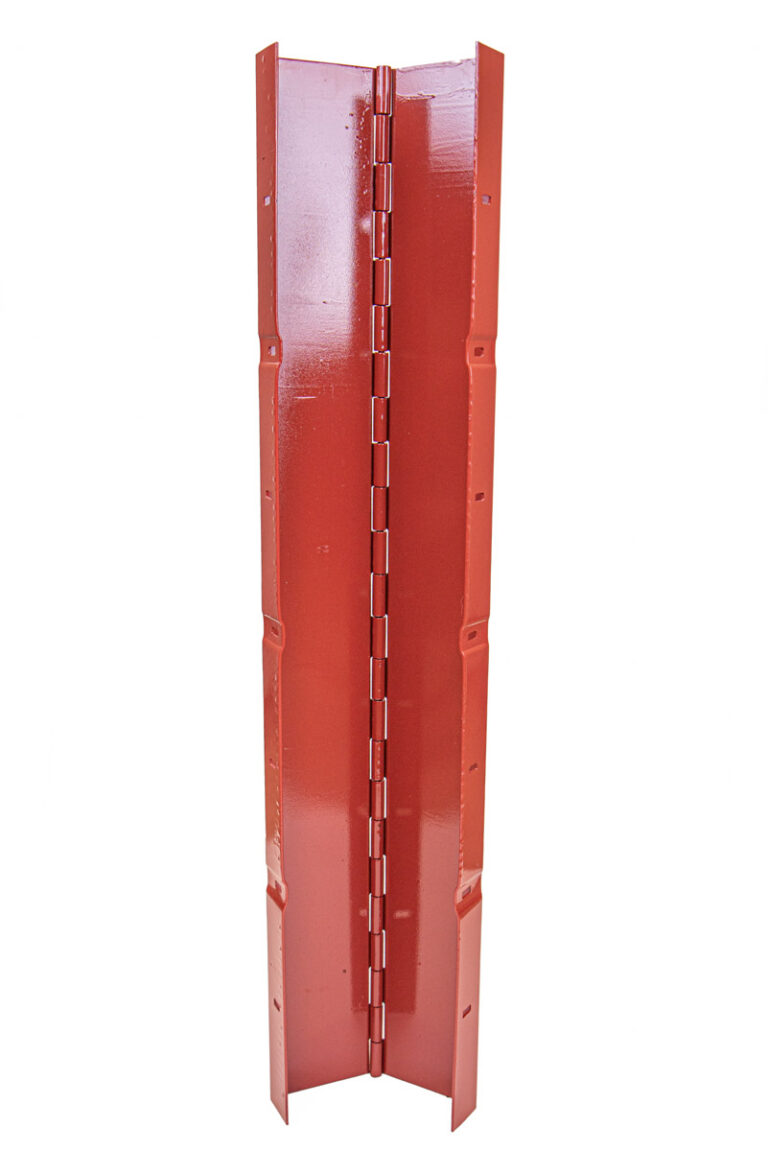

6" x 9' Inside Hinged	057-1609	each	1	73.00	50
9' Inside Bay Corner	057-2009	each	1	38.00	64
9' Outside Corner	059-0009	each	1	29.00	200

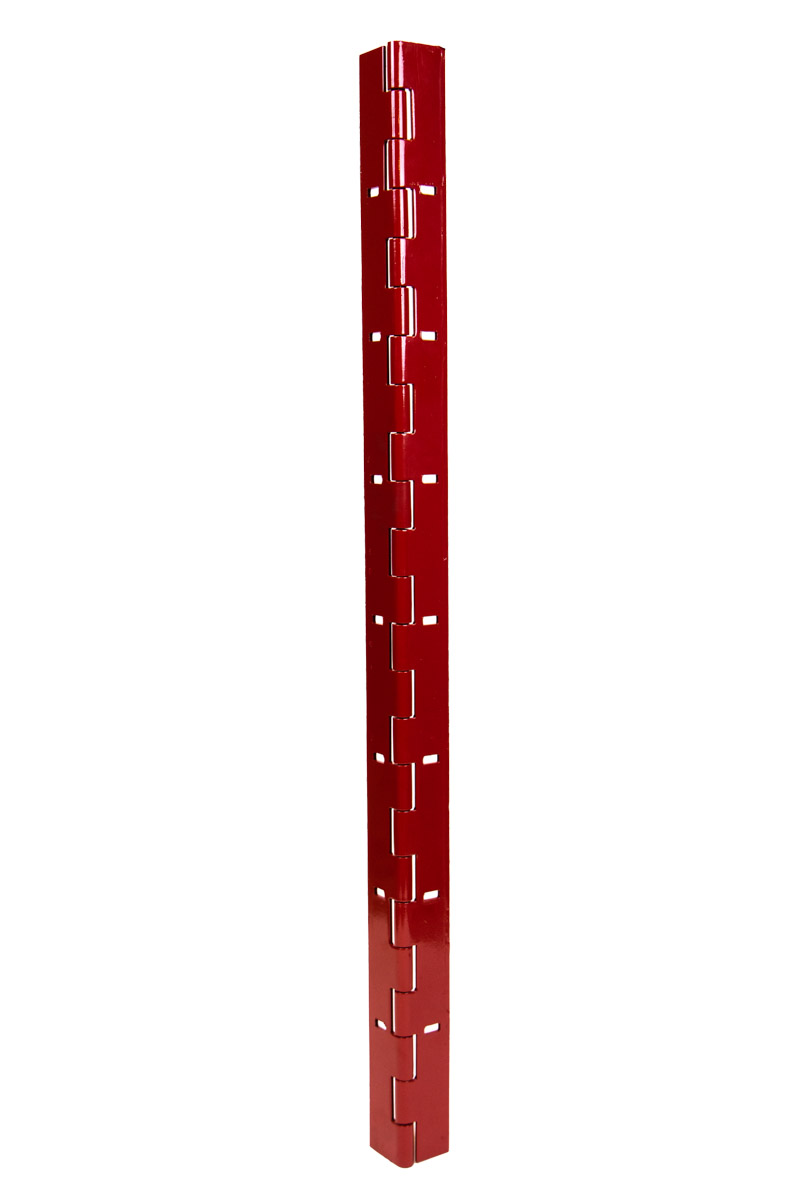

9' Outside Hinged	059-1009	each	1	32.00	100
9' Outside Bay Corner	059-1109	each	1	78.00	24
9' Filler Angle	056-0009	each	1	12.00	240
9' Collapsible Filler	061-1209	each	1	104.00	30

8' HEIGHT

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
24" x 8' Panel	149-2408	each	1	88.00	40
22" x 8' Filler	149-2208	each	1	78.00	40
20" x 8' Filler	149-2008	each	1	74.00	40
18" x 8' Filler	149-1808	each	1	69.00	40
16" x 8' Filler	149-1608	each	1	66.00	60
14" x 8' Filler	149-1408	each	1	61.00	60
12" x 8' Filler	149-1208	each	1	57.00	80
10" x 8' Filler	149-1008	each	1	51.00	80
8" x 8' Filler	149-0808	each	1	45.00	100
6" x 8' Filler	149-0608	each	1	41.00	100
5" x 8' Filler	149-0508	each	1	39.00	100
4" x 8' Filler	149-0408	each	1	36.00	100
2" x 8' Metal Filler	058-0208	each	1	23.00	150
1-1/2" x 8' Metal Filler	058-0108	each	1	21.00	150
1" x 8' Metal Filler	058-0008	each	1	18.00	150
6" x 8' Inside Corner	057-0608	each	1	68.00	48
4" x 8' Inside Corner	057-0408	each	1	46.00	60
6" x 8' Inside Hinged	057-1608	each	1	64.00	50
8' Inside Bay Corner	057-2008	each	1	34.00	64
8' Outside Corner	059-0008	each	1	26.00	200
8' Outside Hinged	059-1008	each	1	30.00	100
8' Outside Bay Corner	059-1108	each	1	60.00	39
8' Filler Angle	056-0008	each	1	11.00	300

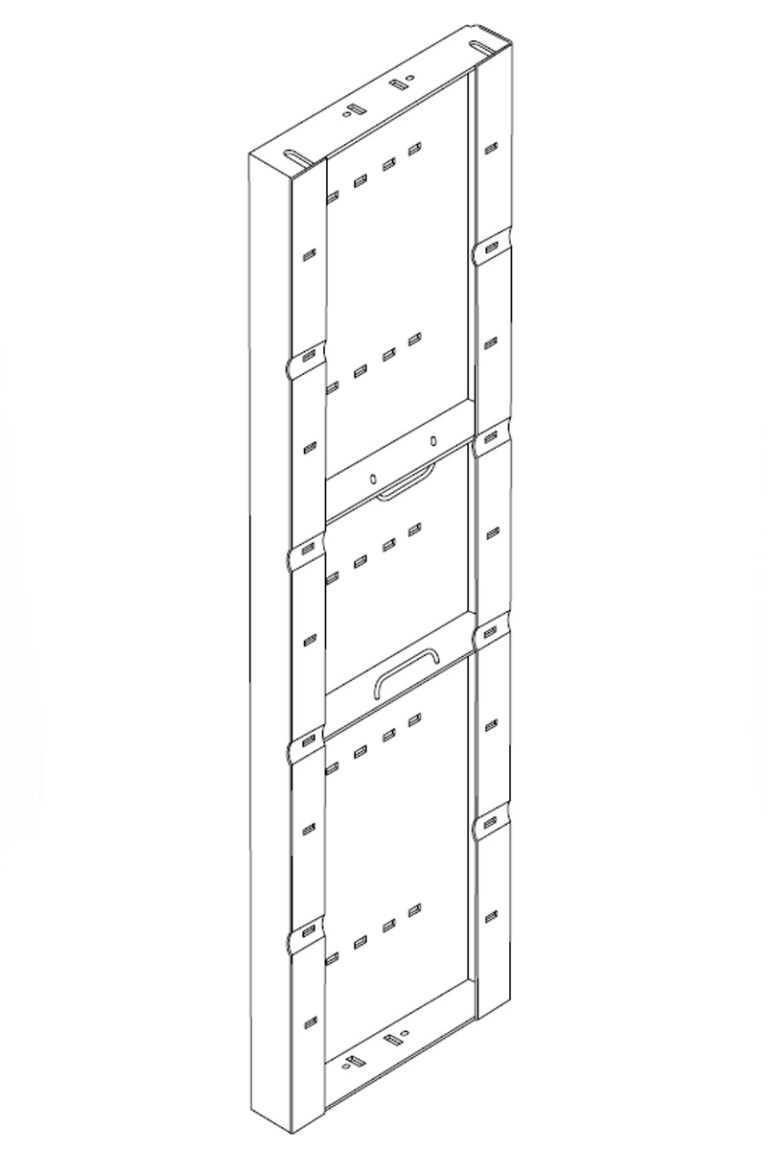

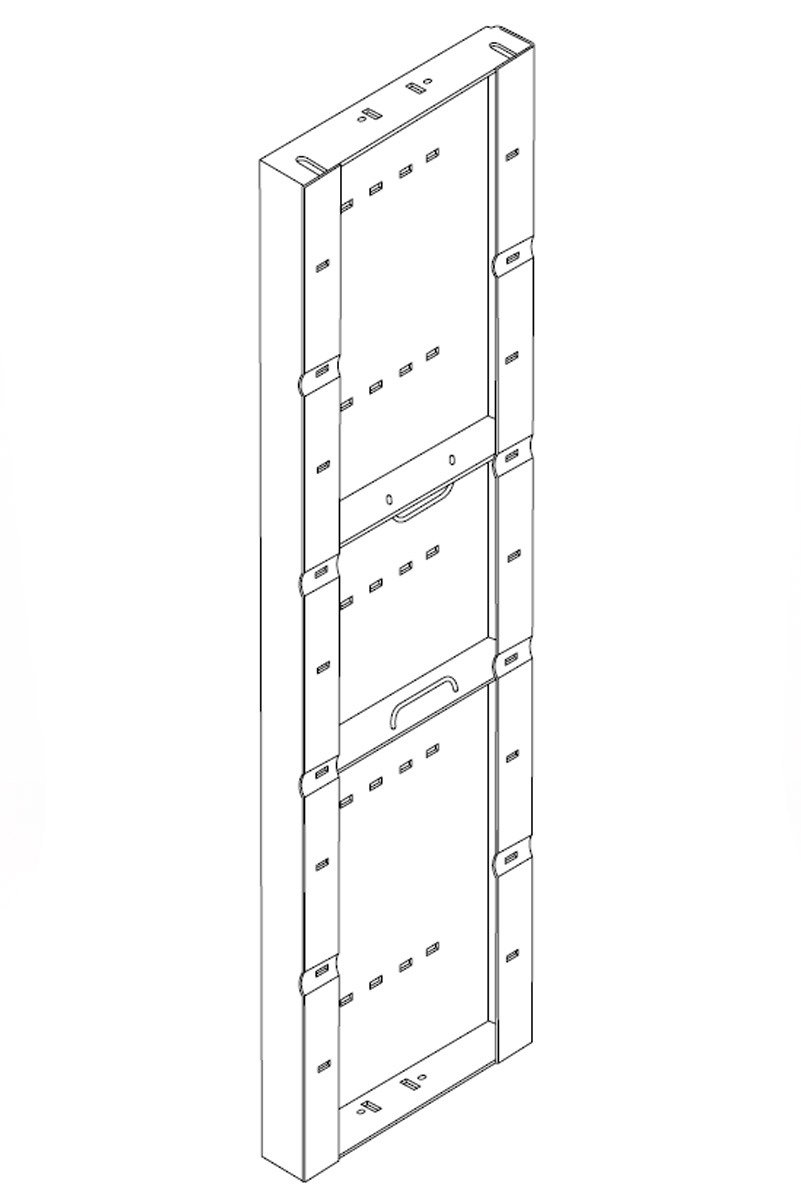

8' Pilaster Form	310-1608	each	1	86.00	24
8' Collapsible Filler	061-1208	each	1	91.00	30

6' HEIGHT

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
24" x 6' Panel	149-2406	each	1	63.00	40
22" x 6' Filler	149-2206	each	1	59.00	40
20" x 6' Filler	149-2006	each	1	58.00	40
18" x 6' Filler	149-1806	each	1	52.00	40
16" x 6' Filler	149-1606	each	1	51.00	60
14" x 6' Filler	149-1406	each	1	48.00	60
12" x 6' Filler	149-1206	each	1	44.00	80
10" x 6' Filler	149-1006	each	1	39.00	80
8" x 6' Filler	149-0806	each	1	36.00	100
6" x 6' Filler	149-0606	each	1	32.00	100
5" x 6' Filler	149-0506	each	1	30.00	100
4" x 6' Filler	149-0406	each	1	27.00	100
2" x 6' Metal Filler	058-0206	each	1	17.00	150
1-1/2" x 6' Metal Filler	058-0106	each	1	15.00	200
1" x 6' Metal Filler	058-0006	each	1	13.00	200
6" x 6' Inside Corner	057-0606	each	1	52.00	48
4" x 6' Inside Corner	057-0406	each	1	37.00	60
6" x 6' Inside Hinged	057-1606	each	1	47.00	50
6' Inside Bay Corner	057-2006	each	1	25.00	64
6' Outside Corner	059-0006	each	1	18.00	200
6' Outside Hinged	059-1006	each	1	23.00	100
6' Outside Bay Corner	059-1106	each	1	46.00	45
6' Filler Angle	056-0006	each	1	8.00	300
6' Pilaster Form	310-1606	each	1	65.00	40
6' Collapsible Filler	061-1206	each	1	68.00	30

5' HEIGHT

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
24" x 5' Panel	149-2405	each	1	55.00	40
22" x 5' Filler	149-2205	each	1	52.00	40
20" x 5' Filler	149-2005	each	1	49.00	40
18" x 5' Filler	149-1805	each	1	46.00	40
16" x 5' Filler	149-1605	each	1	43.00	60
14" x 5' Filler	149-1405	each	1	40.00	60
12" x 5' Filler	149-1205	each	1	36.00	80
10" x 5' Filler	149-1005	each	1	32.00	80
8" x 5' Filler	149-0805	each	1	27.00	100
6" x 5' Filler	149-0605	each	1	26.00	100
5" x 5' Filler	149-0505	each	1	24.00	100
4" x 5' Filler	149-0405	each	1	22.00	100
2" x 5' Metal Filler	058-0205	each	1	15.00	200
1-1/2" x 5' Metal Filler	058-0105	each	1	13.00	200
1" x 5' Metal Filler	058-0005	each	1	11.00	200
6" x 5' Inside Corner	057-0605	each	1	43.00	48
4" x 5' Inside Corner	057-0405	each	1	31.00	60
6" x 5' Inside Hinged	057-1605	each	1	42.00	50
5' Inside Bay Corner	057-2005	each	1	20.00	64
5' Outside Corner	059-0005	each	1	16.00	200
5' Outside Hinged	059-1005	each	1	19.00	100
5' Outside Bay Corner	059-1105	each	1	37.00	45
5' Filler Angle	056-0005	each	1	7.00	300
5' Pilaster Form	310-1605	each	1	52.00	50
5' Collapsible Filler	061-1205	each	1	58.00	30

4' HEIGHT

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
24" x 4' Panel	149-2404	each	1	43.00	40
22" x 4' Filler	149-2204	each	1	40.00	40
20" x 4' Filler	149-2004	each	1	39.00	40
18" x 4' Filler	149-1804	each	1	38.00	40
16" x 4' Filler	149-1604	each	1	34.00	60
14" x 4' Filler	149-1404	each	1	32.00	60
12" x 4' Filler	149-1204	each	1	29.00	80
10" x 4' Filler	149-1004	each	1	27.00	80
8" x 4' Filler	149-0804	each	1	23.00	100
6" x 4' Filler	149-0604	each	1	21.00	100
5" x 4' Filler	149-0504	each	1	20.00	100
4" x 4' Filler	149-0404	each	1	18.00	100
2" x 4' Metal Filler	058-0204	each	1	11.00	200
1-1/2" x 4' Metal Filler	058-0104	each	1	10.00	200
1" x 4' Metal Filler	058-0004	each	1	9.00	200
6" x 4' Inside Corner	057-0604	each	1	34.00	48
4" x 4' Inside Corner	057-0404	each	1	25.00	60
6" x 4' Inside Hinged	057-1604	each	1	31.00	50
4' Inside Bay Corner	057-2004	each	1	17.00	64
4' Outside Corne	059-0004	each	1	14.00	200
4' Outside Hinged	059-1004	each	1	16.00	100
4' Outside Bay Corner	059-1104	each	1	30.00	51
4' Filler Angle	056-0004	each	1	5.00	300
4' Pilaster Form	310-1604	each	1	42.00	50
4' Collapsible Filler	061-1204	each	1	45.00	30

3' HEIGHT

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
24" x 3' Panel	149-2403	each	1	36.00	40
22" x 3' Filler	149-2203	each	1	31.00	40
20" x 3' Filler	149-2003	each	1	28.00	40
18" x 3' Filler	149-1803	each	1	27.00	40
16" x 3' Filler	149-1603	each	1	25.00	60
14" x 3' Filler	149-1403	each	1	22.00	60
12" x 3' Filler	149-1203	each	1	21.00	80
10" x 3' Filler	149-1003	each	1	20.00	80
8" x 3' Filler	149-0803	each	1	17.00	100
6" x 3' Filler	149-0603	each	1	15.00	100
5" x 3' Filler	149-0503	each	1	14.00	100
4" x 3' Filler	149-0403	each	1	13.00	100
2" x 3' Metal Filler	058-0203	each	1	9.00	200
1-1/2" x 3' Metal Filler	058-0103	each	1	8.00	200
1" x 3' Metal Filler	058-0003	each	1	7.00	200
6" x 3' Inside Corner	057-0603	each	1	27.00	48
4" x 3' Inside Corner	057-0403	each	1	20.00	60
6" x 3' Inside Hinged	057-1603	each	1	25.00	50
3' Inside Bay Corner	057-2003	each	1	13.00	64
3' Outside Corner	059-0003	each	1	10.00	200
3' Outside Hinged	059-1003	each	1	11.00	100
3' Outside Bay Corner	059-1103	each	1	23.00	51
3' Filler Angle	056-0003	each	1	4.00	300
3' Pilaster Form	310-1603	each	1	34.00	50
3' Collapsible Filler	061-1203	each	1	36.00	30

2' HEIGHT

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
24" x 2' Panel	149-2402	each	1	30.00	40
22" x 2' Filler	149-2202	each	1	26.00	40
20" x 2' Filler	149-2002	each	1	23.00	40
18" x 2' Filler	149-1802	each	1	19.00	40
16" x 2' Filler	149-1602	each	1	17.00	60
14" x 2' Filler	149-1402	each	1	16.00	60
12" x 2' Filler	149-1202	each	1	15.00	80
10" x 2' Filler	149-1002	each	1	14.00	80
8" x 2' Filler	149-0802	each	1	12.00	100
6" x 2' Filler	149-0602	each	1	11.00	100
5" x 2' Filler	149-0502	each	1	10.00	100
4" x 2' Filler	149-0402	each	1	8.00	100
2" x 2' Metal Filler	058-0202	each	1	6.00	200
1-1/2" x 2' Metal Filler	058-0102	each	1	5.00	200
1" x 2' Metal Filler	058-0002	each	1	4.00	200
6" x 2' Inside Corner	057-0602	each	1	18.00	48
4" x 2' Inside Corner	057-0402	each	1	13.00	60
2' Outside Corner	059-0002	each	1	7.00	200
2' Filler Angle	056-0002	each	1	3.00	300
