Plywood Forming Accessories

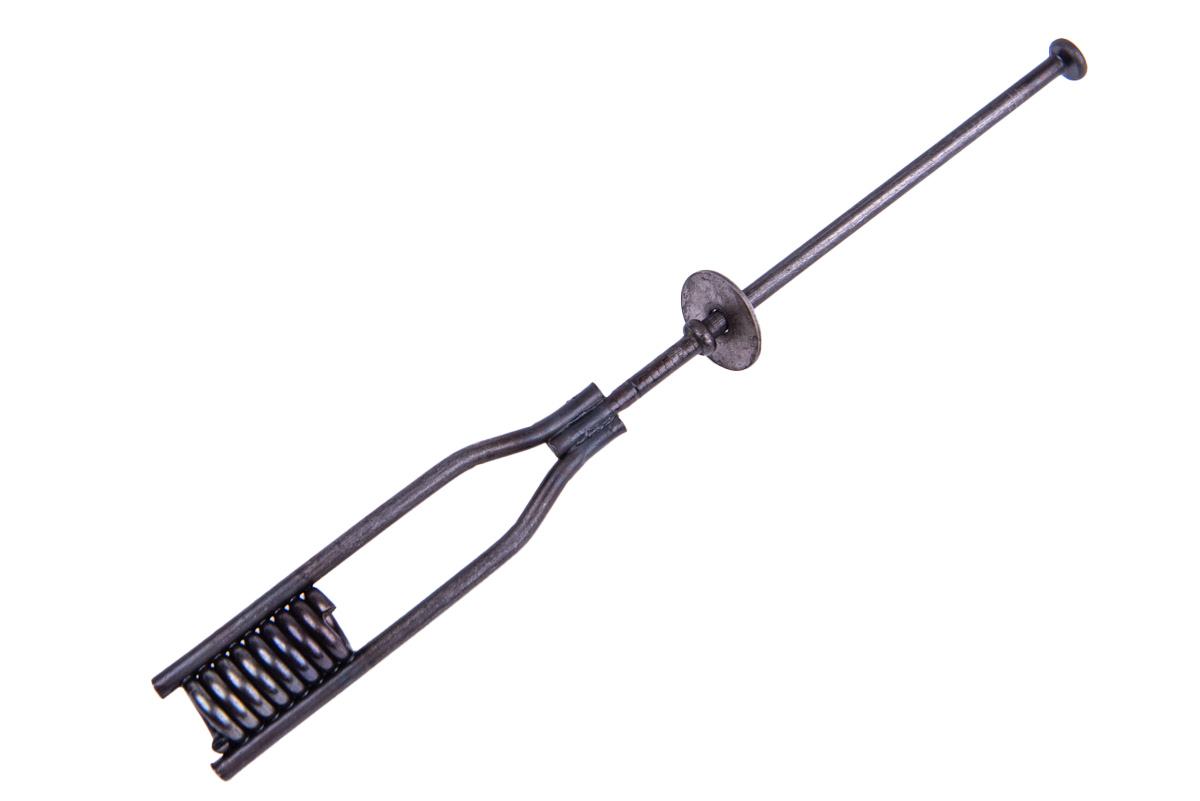

Transition Snap Tie
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 191-0321004 | 4" - 4-3/4" End Snap Tran. Tie w/ Cone | box | 100 | 30.00 | 0 |
| 191-0321006 | 6" - 4-3/4" End Snap Tran. Tie w/ Cone | box | 100 | 35.00 | 0 |
| 191-0361004 | 4" - 8-1/4" End Snap Tran. Tie w/ Cone | box | 100 | 35.00 | 0 |
| 191-0361006 | 6" - 8-1/4" End Snap Tran. Tie w/ Cone | box | 100 | 40.00 | 0 |
- Available with washer
- Additional sizes available

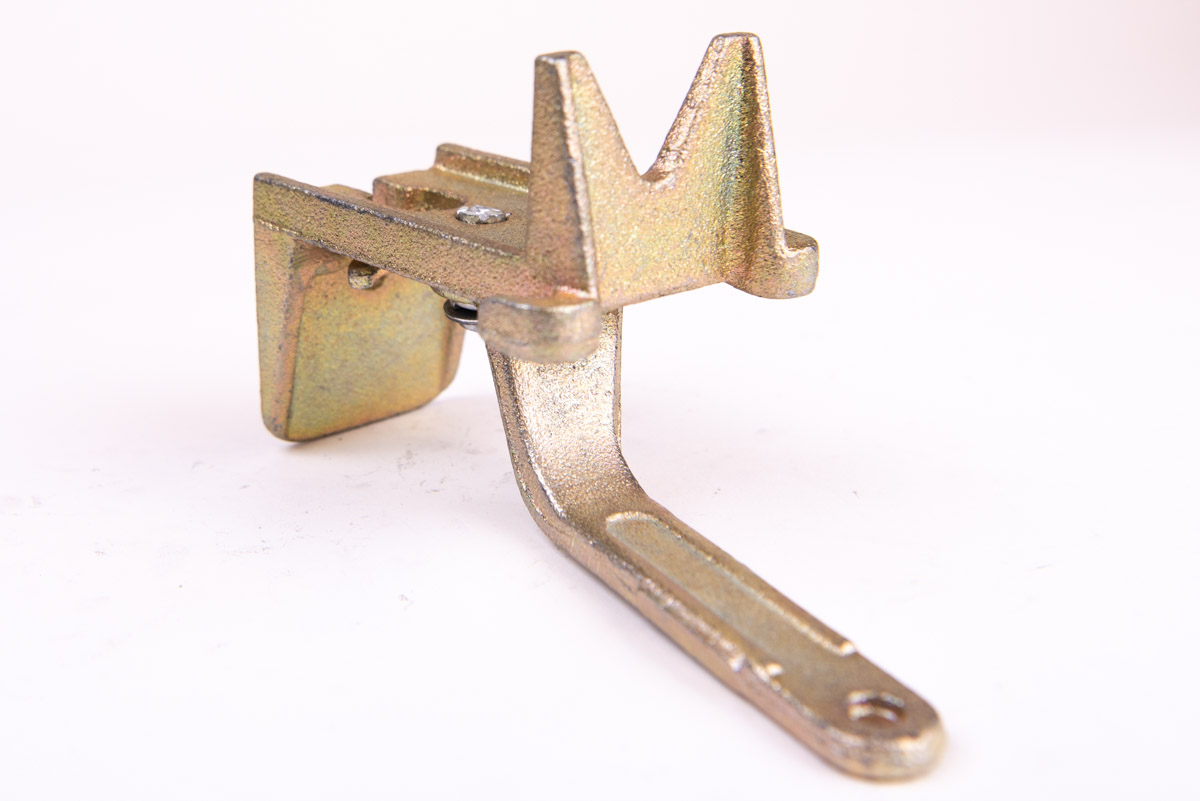

PLYLock Waler Bracket/Cam
The Ply Lock Waler Bracket/Cam secures a single 2"x4" horizontal waler to the 3/4" plywood stick built system. Used with EMI’s ply tie or compatible with Gates self-centering loop tie.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 051-8002 | Ply Lock Waler Bracket/Cam | box | 25 | 39.00 | 1250 |
- Compatible with the Gates Forming System

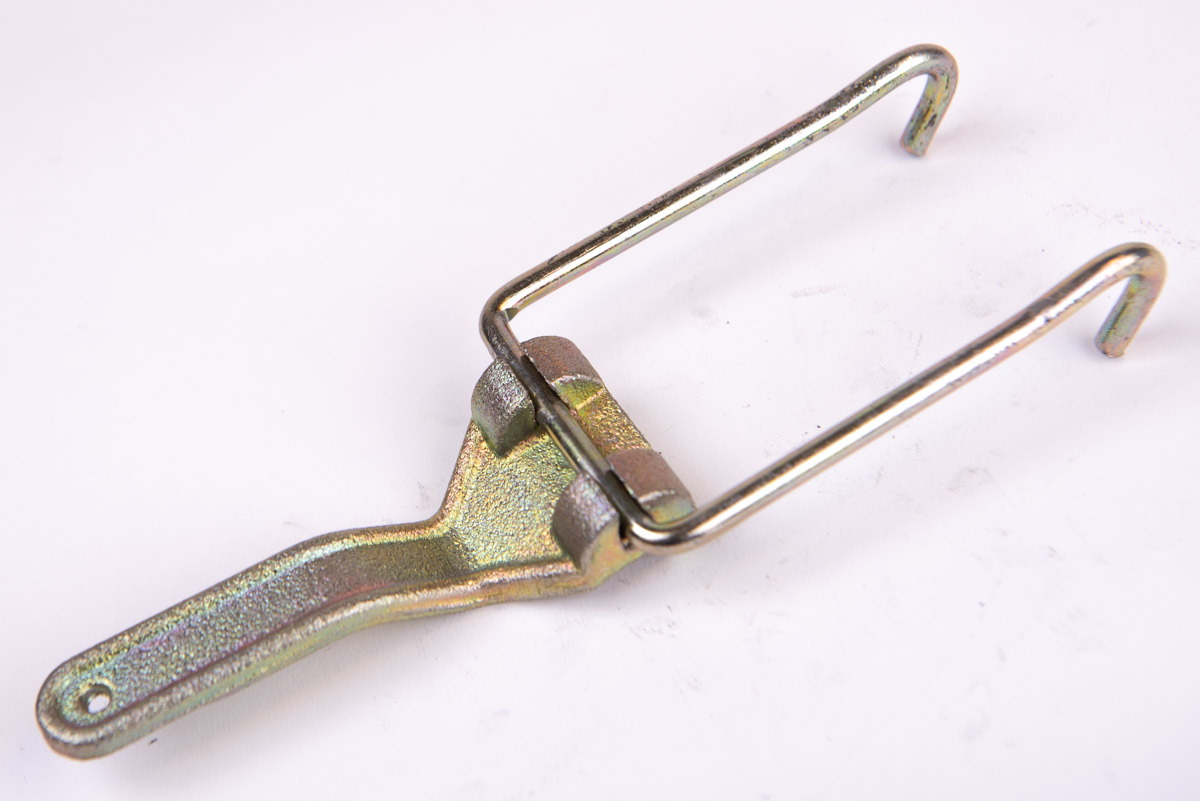

PLYLock Strongback
The Ply Lock Strong Back secures a single 2"x4" vertical strong back to the 3/4" plywood stick built system. Attaches to the hooks on the back of the Ply Lock Waler Bracket/Cam.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 051-8001 | Ply Lock Strongback | box | 25 | 33.00 | 4000 |
- Compatible with the Gates Forming System

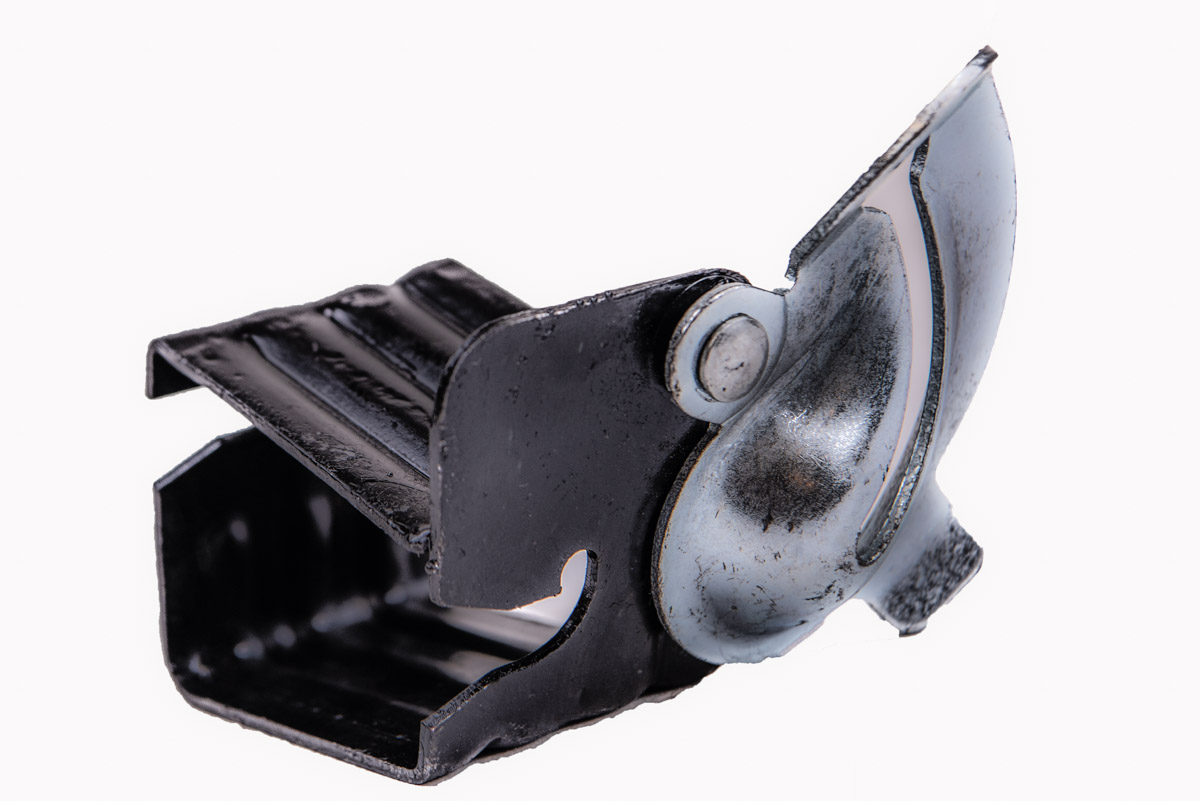

"A" Bracket
The A Bracket is used for holding a single 2"x4" horizontal waler on stick built forms using short end snap ties.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 052-0000 | “A” Bracket | box | 25 | 38.00 | 1000 |

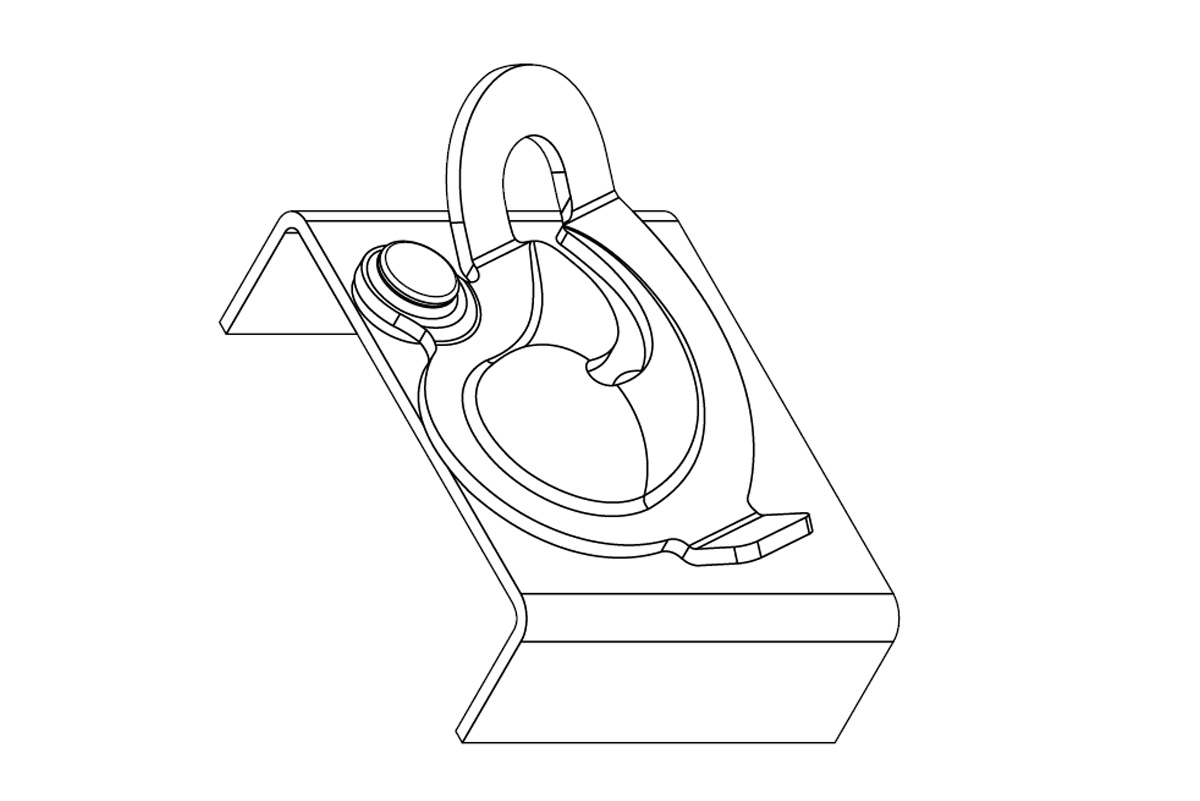

"C" Bracket
The C Bracket is used for holding double 2"x4" vertical strong backs on stick built forms using long end snap ties.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 052-0011 | “C” Bracket | box | 50 | 55.00 |

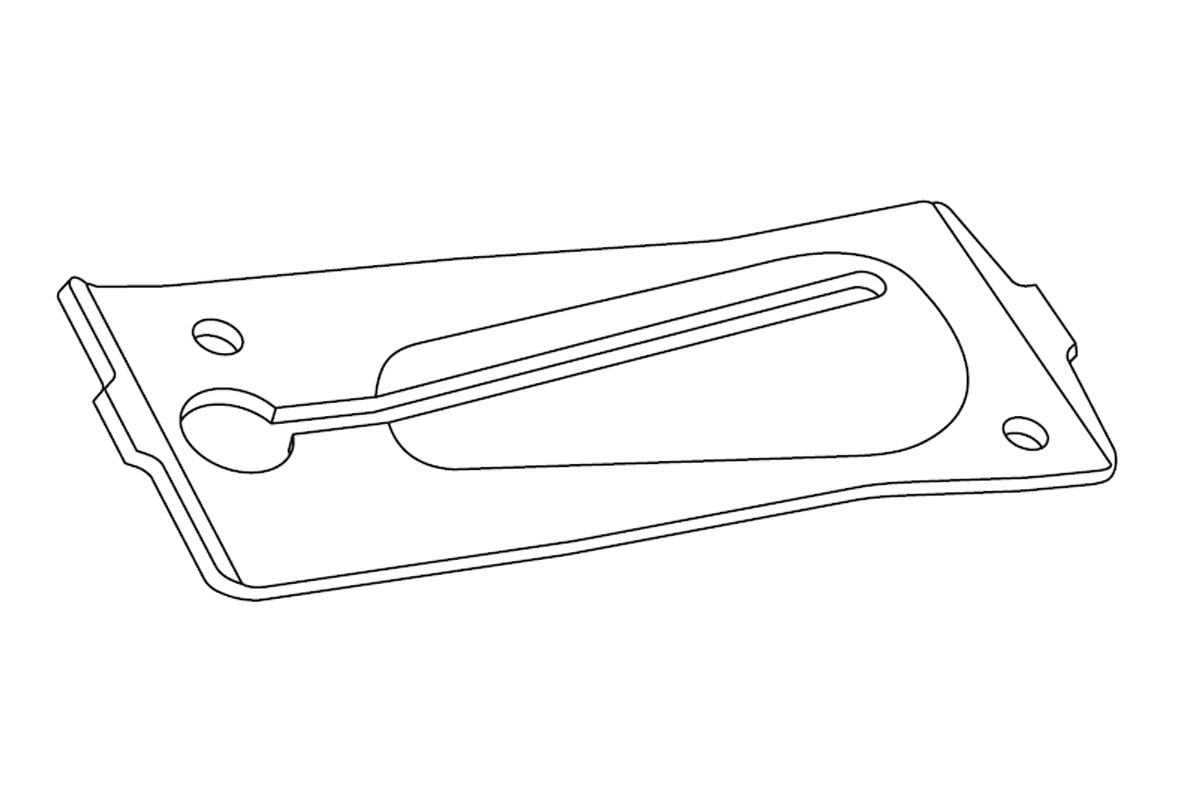

Snap Tie Wedge
The Snap Tie Wedge is used with short and long end snap ties on stick built forms. Used with double 2"x4" horizontal walers and double 2"x4" vertical strong backs.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 052-0001 | Snap Tie Wedge | box | 100 | 45.00 | 5000 |

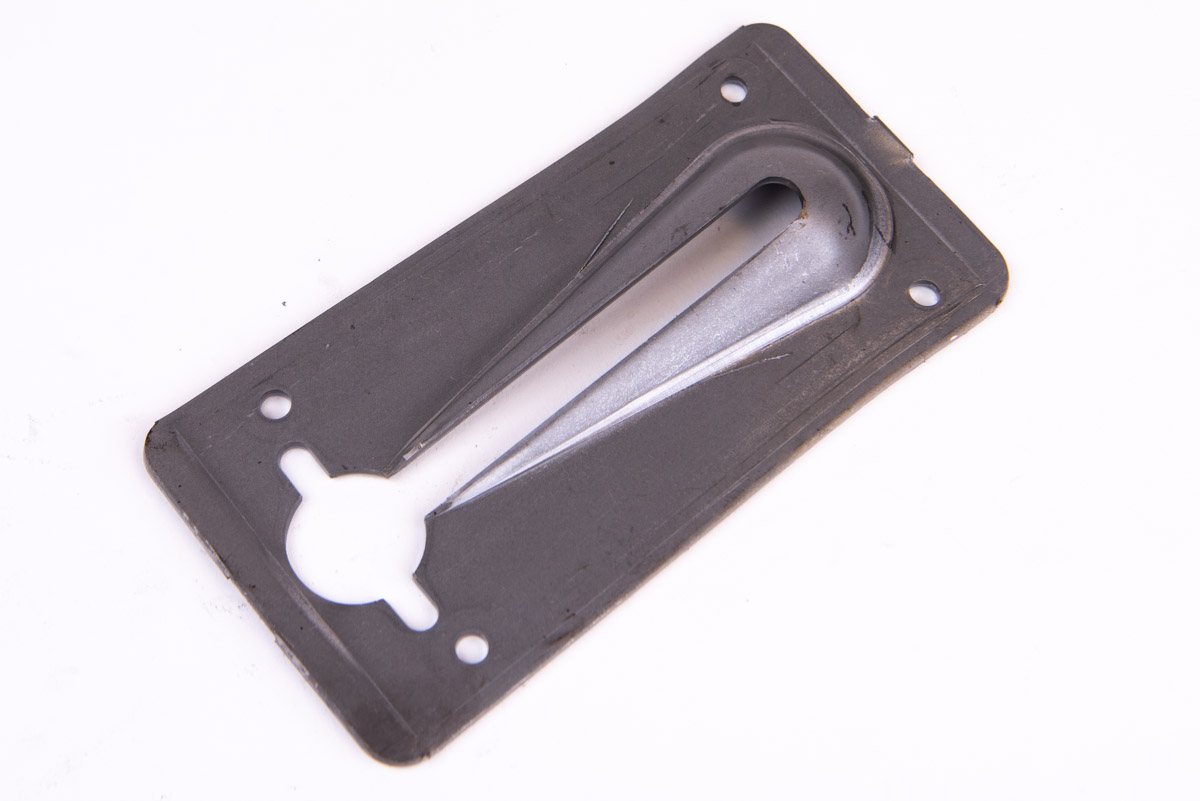

Stacking Wedge
The Stacking Wedge is used with the Stacking Tie with 1 1/8" plywood.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 043-0041 | Stacking Wedge | box | 50 | 35.00 | 5000 |
