Aluminum Form Ties

Home
Aluminum Forming
Aluminum Form Ties

NOMINAL WALL TIES

with standard break back

ultimate load

7500 lbs

safety factor rating

2.0-to-1 (3750 lbs)

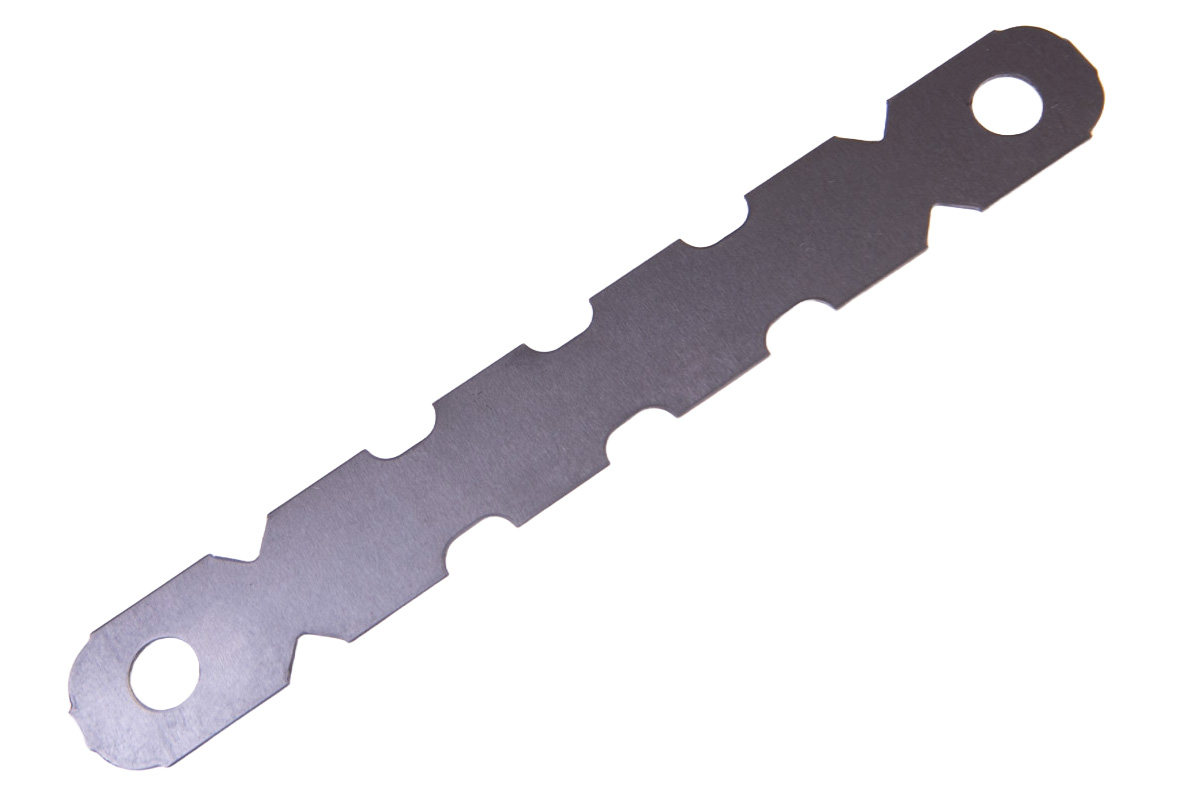

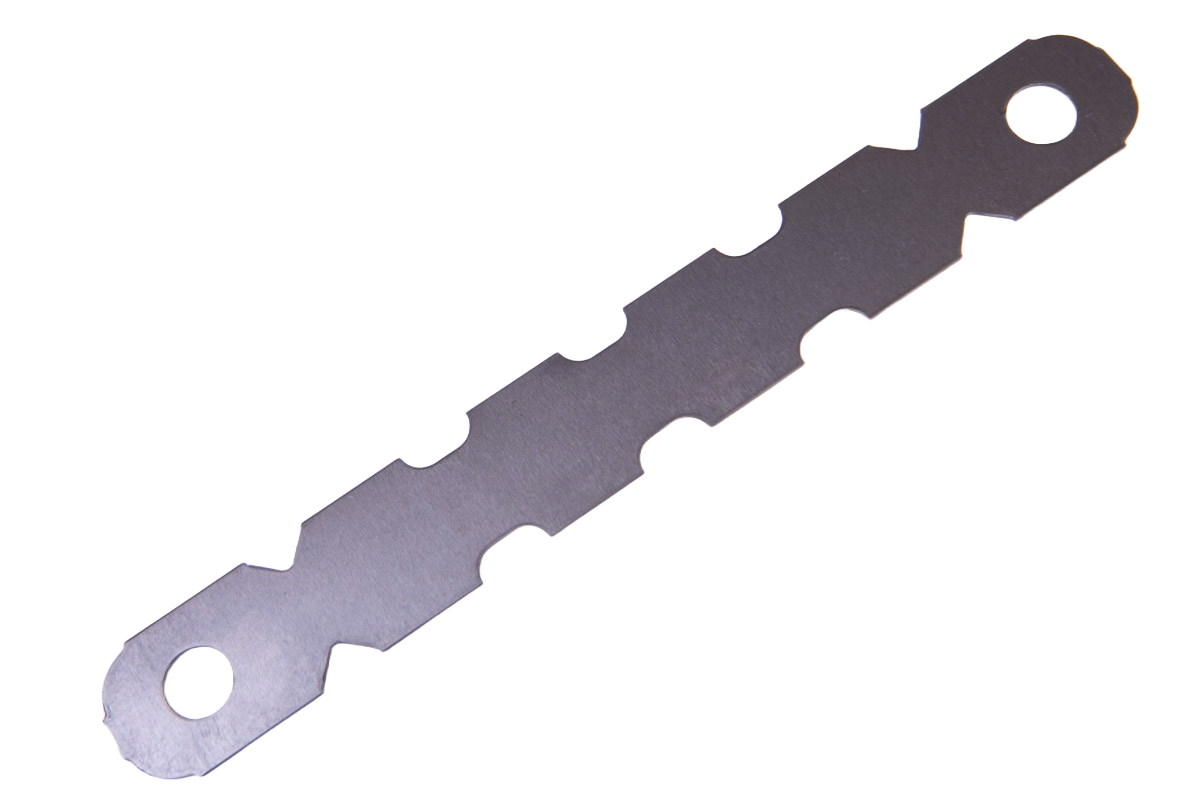

NOMINAL ROUND END TIE

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
4" Nominal Tie	007-0004	bundle	100	22.00	10000
6" Nominal Tie	007-0006	bundle	100	28.00	5000
8" Nominal Tie	007-0008	bundle	100	33.00	5000
10" Nominal Tie	007-0010	bundle	100	39.00	5000
12" Nominal Tie	007-0012	bundle	100	45.00	5000
14" Nominal Tie	007-0014	bundle	50	27.00	5000
16" Nominal Tie	007-0016	bundle	50	30.00	5000
18" Nominal Tie	007-0018	bundle	50	34.00	5000
20" Nominal Tie	007-0020	bundle	50	37.00	2500
22" Nominal Tie	007-0022	bundle	50	43.00	2500
24" Nominal Tie	007-0024	bundle	50	43.00	2500

NOMINAL SQUARE END TIE

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
6" Nominal Tie (Square End)	017-1006	bundle	100	28.00	5000
8" Nominal Tie (Square End)	017-1008	bundle	100	33.00	5000
10" Nominal Tie (Square End)	017-1010	bundle	100	39.00	5000
12" Nominal Tie (Square End)	017-1012	bundle	100	45.00	5000

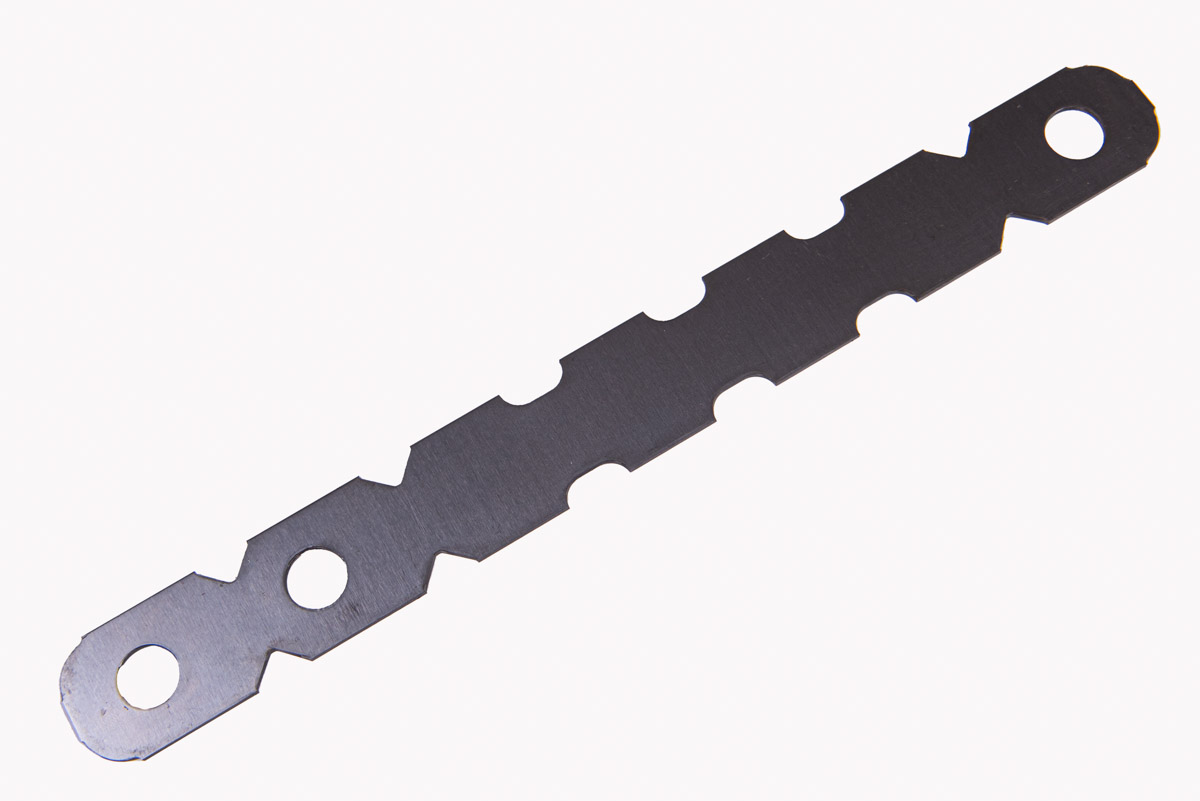

NOMINAL TWO COMBO TIE

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
6-8" Nominal Tie	007-0208	bundle	100	33.00	10000
8-10" Nominal Tie	007-0210	bundle	100	37.00	10000
10-12" Nominal Tie	007-0212	bundle	100	44.00	10000
12-14" Nominal Tie	007-0214	bundle	50	28.00	5000
14-16" Nominal Tie	007-0216	bundle	50	30.00	5000
16-18" Nominal Tie	007-0218	bundle	50	34.00	5000
18-20" Nominal Tie	007-0220	bundle	50	36.00	2500
20-22" Nominal Tie	007-0222	bundle	50	39.00	2500
22-24" Nominal Tie	007-0224	bundle	50	42.00	2500

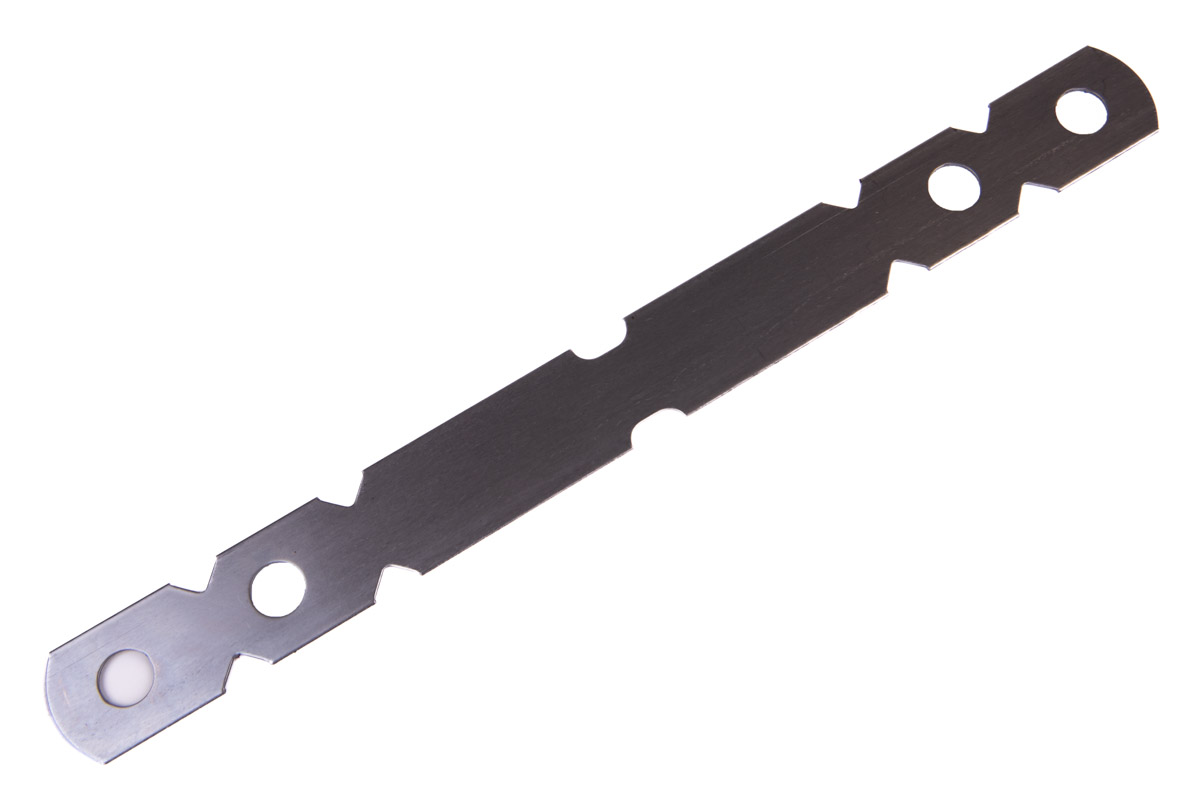

NOMINAL THREE COMBO TIE

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
6-8-10" Nominal Tie	007-0310	bundle	100	37.00	10000
8-10-12" Nominal Tie	007-0312	bundle	100	44.00	10000
10-12-14" Nominal Tie	007-0314	bundle	50	28.00	5000
12-14-16" Nominal Tie	007-0316	bundle	50	30.00	5000
14-16-18" Nominal Tie	007-0318	bundle	50	33.00	5000
16-18-20" Nominal Tie	007-0320	bundle	50	36.00	2500
18-20-22" Nominal Tie	007-0322	bundle	50	37.00	2500
20-22-24" Nominal Tie	007-0324	bundle	50	40.00	2500

FULL WALL TIES

with standard break back

ultimate load

7500 lbs

safety factor rating

2.0-to-1 (3750 lbs)

FULL ROUND END TIE

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
4" Full Tie	008-0004	bundle	100	24.00	10000
6" Full Tie	008-0006	bundle	100	29.00	5000
8" Full Tie	008-0008	bundle	100	34.00	5000
10" Full Tie	008-0010	bundle	100	40.00	5000
12" Full Tie	008-0012	bundle	100	46.00	5000
14" Full Tie	008-0014	bundle	50	28.00	5000
16" Full Tie	008-0016	bundle	50	31.00	5000
18" Full Tie	008-0018	bundle	50	35.00	5000
20" Full Tie	008-0020	bundle	50	38.00	2500
22" Full Tie	008-0022	bundle	50	41.00	2500
24" Full Tie	008-0024	bundle	50	44.00	2500

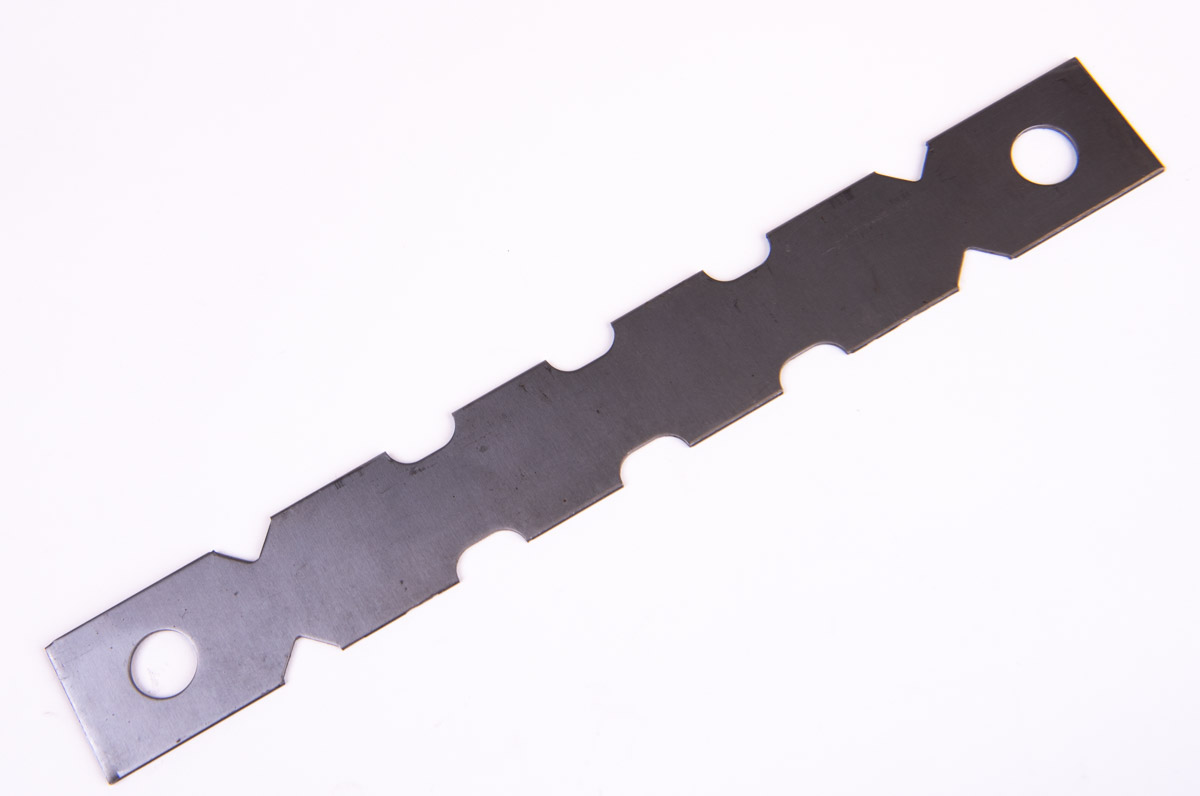

FULL SQUARE END TIE

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
6" Full Tie (Square End)	018-1006	bundle	100	29.00	5000
8" Full Tie (Square End)	018-1008	bundle	100	34.00	5000
10" Full Tie (Square End)	018-1010	bundle	100	40.00	5000
12" Full Tie (Square End)	018-1012	bundle	100	46.00	5000

FULL TWO COMBO TIE

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
6-8" Full Tie	008-0208	bundle	100	34.00	10000
8-10" Full Tie	008-0210	bundle	100	38.00	10000
10-12" Full Tie	008-0212	bundle	100	45.00	10000
12-14" Full Tie	008-0214	bundle	50	29.00	5000
14-16" Full Tie	008-0216	bundle	50	31.00	5000
16-18" Full Tie	008-0218	bundle	50	35.00	5000
18-20" Full Tie	008-0220	bundle	50	37.00	2500
20-22" Full Tie	008-0222	bundle	50	40.00	2500
22-24" Full Tie	008-0224	bundle	50	43.00	2500

FULL THREE COMBO TIE

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
6-8-10" Full Tie	008-0310	bundle	100	38.00	10000
8-10-12" Full Tie	008-0312	bundle	100	45.00	10000
10-12-14" Full Tie	008-0314	bundle	50	29.00	5000
12-14-16" Full Tie	008-0316	bundle	50	31.00	5000
14-16-18" Full Tie	008-0318	bundle	50	34.00	5000
16-18-20" Full Tie	008-0320	bundle	50	37.00	2500
18-20-22" Full Tie	008-0322	bundle	50	38.00	2500
20-22-24" Full Tie	008-0324	bundle	50	41.00	2500

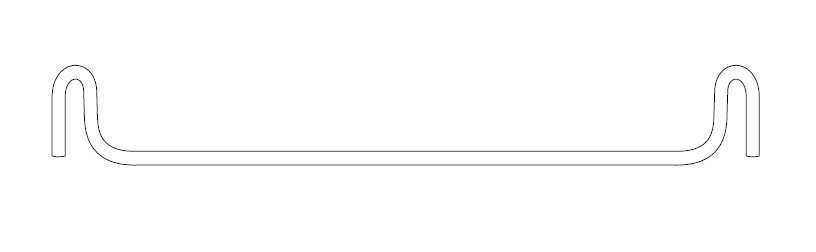

BASE TIES

ultimate load

3000 lbs

safety factor rating

2.0-to-1 (1500 lbs)

Nominal

*Additional sizes available

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
6" Nominal Base Tie	011-0006	box	100	14.00	10000
8" Nominal Base Tie	011-0008	box	100	16.00	10000
10" Nominal Base Tie	011-0010	box	100	18.00	10000
12" Nominal Base Tie	011-0012	box	100	21.00	10000
14" Nominal Base Tie	011-0014	box	100	23.00	7500
16" Nominal Base Tie	011-0016	box	100	25.00	7500
18" Nominal Base Tie	011-0018	box	100	28.00	5000
20" Nominal Base Tie	011-0020	box	100	30.00	5000

FULL

*Additional sizes available

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
6" Full Base Tie	010-0006	box	100	15.00	10000
8" Full Base Tie	010-0008	box	100	17.00	10000
10" Full Base Tie	010-0010	box	100	18.00	10000
12" Full Base Tie	010-0012	box	100	21.00	10000
14" Full Base Tie	010-0014	box	100	23.00	7500
16" Full Base Tie	010-0016	box	100	25.00	7500
18" Full Base Tie	010-0018	box	100	28.00	5000
20" Full Base Tie	010-0020	box	100	30.00	5000

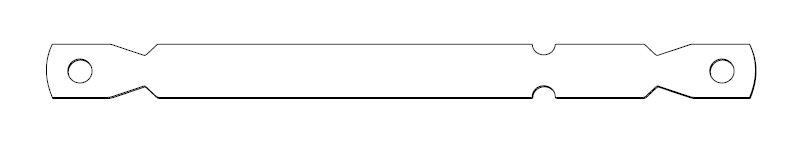

1" break back ties

ultimate load

3000 lbs

safety factor rating

2.0-to-1 (1500 lbs)

Nominal

*Additional sizes available

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
6" Nom 1" Break Back	007-4006	bundle	100	28.00	5000
8" Nom 1" Break Back	007-4008	bundle	100	35.00	5000
10" Nom 1" Break Back	007-4010	bundle	100	42.00	5000
12" Nom 1" Break Back	007-4012	bundle	100	49.00	5000
14" Nom 1" Break Back	007-4014	bundle	50	25.00	5000

FULL

*Additional sizes available

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
6" Full 1" Break Back	008-4006	bundle	100	29.00	5000
8" Full 1" Break Back	008-4008	bundle	100	36.00	5000
10" Full 1" Break Back	008-4010	bundle	100	43.00	5000
12" Full 1" Break Back	008-4012	bundle	100	50.00	5000
14" Full 1" Break Back	008-4014	bundle	50	27.00	5000

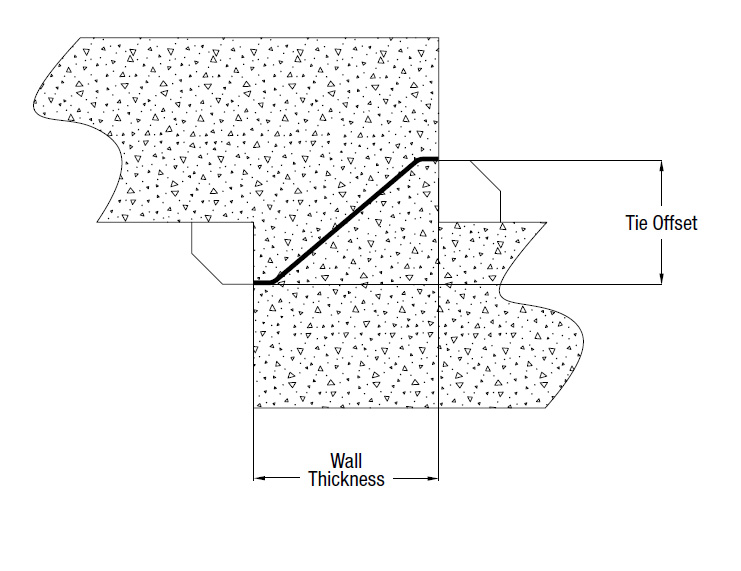

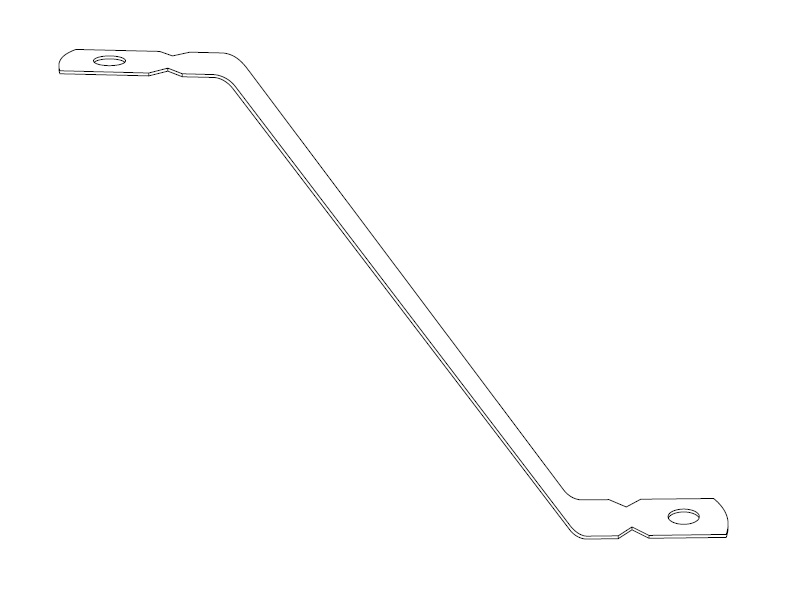

offset tie

ultimate load

3000 lbs

safety factor rating

2.0-to-1 (1500 lbs)

Nominal

*Additional sizes available

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
6" Nom (4" OS)	007-0406-OS	bundle	50	19.00	5000
6" Nom (6" OS)	007-0606-OS	bundle	50	22.00	5000
6" Nom (8" OS)	007-0806-OS	bundle	50	25.00	4000
6" Nom (10" OS)	007-1006-OS	bundle	50	28.00	4000
6" Nom (12" OS)	007-1206-OS	bundle	50	31.00	3500
8" Nom (4" OS)	007-0408-OS	bundle	50	22.00	5000
8" Nom (6" OS)	007-0608-OS	bundle	50	23.00	4500
8" Nom (8" OS)	007-0808-OS	bundle	50	26.00	4000
8" Nom (10" OS)	007-1008-OS	bundle	50	29.00	3500
8" Nom (12" OS)	007-1208-OS	bundle	50	32.00	3500
10" Nom (4" OS)	007-0410-OS	bundle	50	24.00	4500
10" Nom (6" OS)	007-0610-OS	bundle	50	26.00	4000
10" Nom (8" OS)	007-0810-OS	bundle	50	28.00	4000
10" Nom (10" OS)	007-1010-OS	bundle	50	31.00	3500
10" Nom (12" OS)	007-1210-OS	bundle	50	33.00	3000

12" Nom (4" OS)	007-0412-OS	bundle	50	27.00	4000
12" Nom (6" OS)	007-0612-OS	bundle	50	28.00	4000
12" Nom (8" OS)	007-0812-OS	bundle	50	30.00	3500
12" Nom (10" OS	007-1012-OS	bundle	50	33.00	3500
12" Nom (12" OS)	007-1212-OS	bundle	50	35.00	3000

FULL

*Additional sizes available

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
6" Full (4" OS)	008-0406-OS	bundle	50	19.00	5000
6" Full (6" OS)	008-0606-OS	bundle	50	22.00	5000
6" Full (8" OS)	008-0806-OS	bundle	50	25.00	4000
6" Full (10" OS)	008-1006-OS	bundle	50	28.00	4000
6" Full (12" OS)	008-1206-OS	bundle	50	31.00	3500
8" Full (4" OS)	008-0408-OS	bundle	50	21.00	5000
8" Full (6" OS)	008-0608-OS	bundle	50	24.00	4500
8" Full (8" OS)	008-0808-OS	bundle	50	26.00	4000
8" Full (10" OS)	008-1008-OS	bundle	50	29.00	3500
8" Full (12" OS)	008-1208-OS	bundle	50	32.00	3500
10" Full (4" OS)	008-0410-OS	bundle	50	24.00	4500
10" Full (6" OS)	008-0610-OS	bundle	50	26.00	4000
10" Full (8" OS)	008-0810-OS	bundle	50	28.00	4000
10" Full (10" OS)	008-1010-OS	bundle	50	31.00	3500
10" Full (12" OS)	008-1210-OS	bundle	50	33.00	3000
12" Full (4" OS)	008-0412-OS	bundle	50	27.00	4000
12" Full (6" OS)	008-0612-OS	bundle	50	29.00	4000
12" Full (8" OS)	008-0812-OS	bundle	50	31.00	3500
12" Full (10" OS)	008-1012-OS	bundle	50	33.00	3000
12" Full (12" OS)	008-1212-OS	bundle	50	35.00	3000

- Prevents corner(s) from kinking

- Economical – same vertical spacing as regular ties

- Eliminates additional bracing

- Breaks off horizontally to the wall for a clean finish

- Provides a better water seal

* EMI will not be responsible for ties bent or altered after shipment.

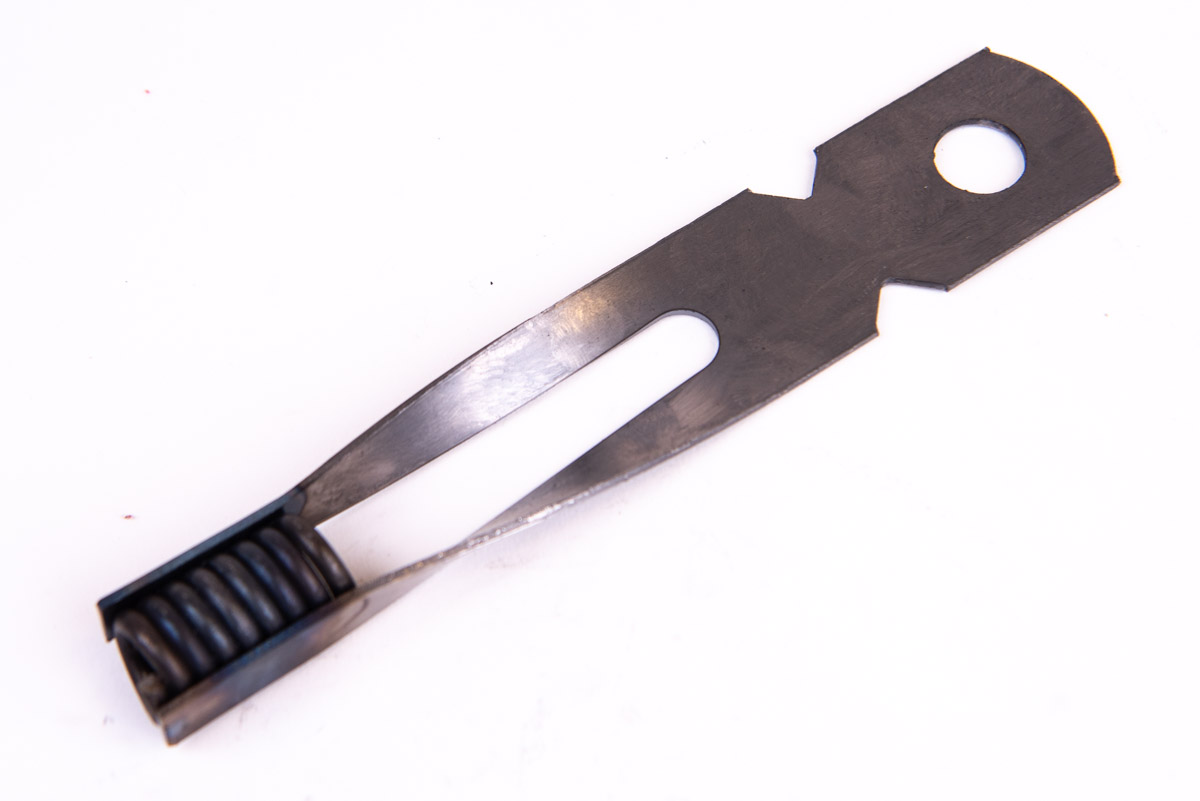

Transition Tie

Part Number	Description	Unit	Sold As	Unit Wgt (lbs.)	Skid Qty
013-0003	Flat Wedge	pail	250	26.00	25000
