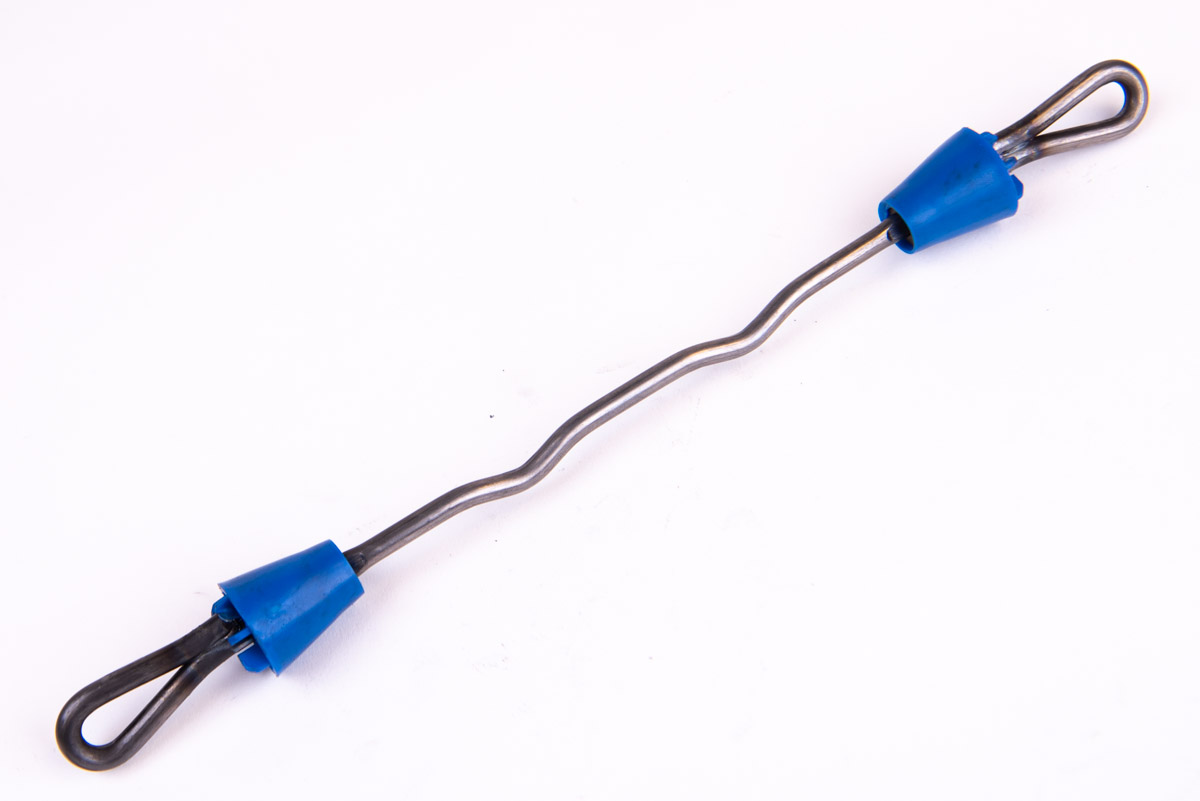

| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 030-2006 | 6" Ply-Tie | box | 100 | 19.00 | 5000 |
| 030-2008 | 8" Ply-Tie | box | 100 | 21.00 | 5000 |
| 030-2010 | 10" Ply-Tie | box | 100 | 23.00 | 5000 |
| 030-2012 | 12" Ply-Tie | box | 100 | 25.00 | 5000 |
| 030-2014 | 14" Ply-Tie | box | 100 | 27.00 | 5000 |
| 030-2016 | 16" Ply-Tie | box | 100 | 29.00 | 5000 |
| 030-2018 | 18" Ply-Tie | box | 100 | 31.00 | 5000 |
| 030-2020 | 20" Ply-Tie | box | 100 | 33.00 | 5000 |
| 030-2022 | 22" Ply-Tie | box | 100 | 35.00 | 5000 |
| 030-2024 | 24" Ply-Tie | box | 100 | 37.00 | 5000 |
ultimate load
4500 lbs
safety factor rating
2.0-to-1 (2250 lbs)

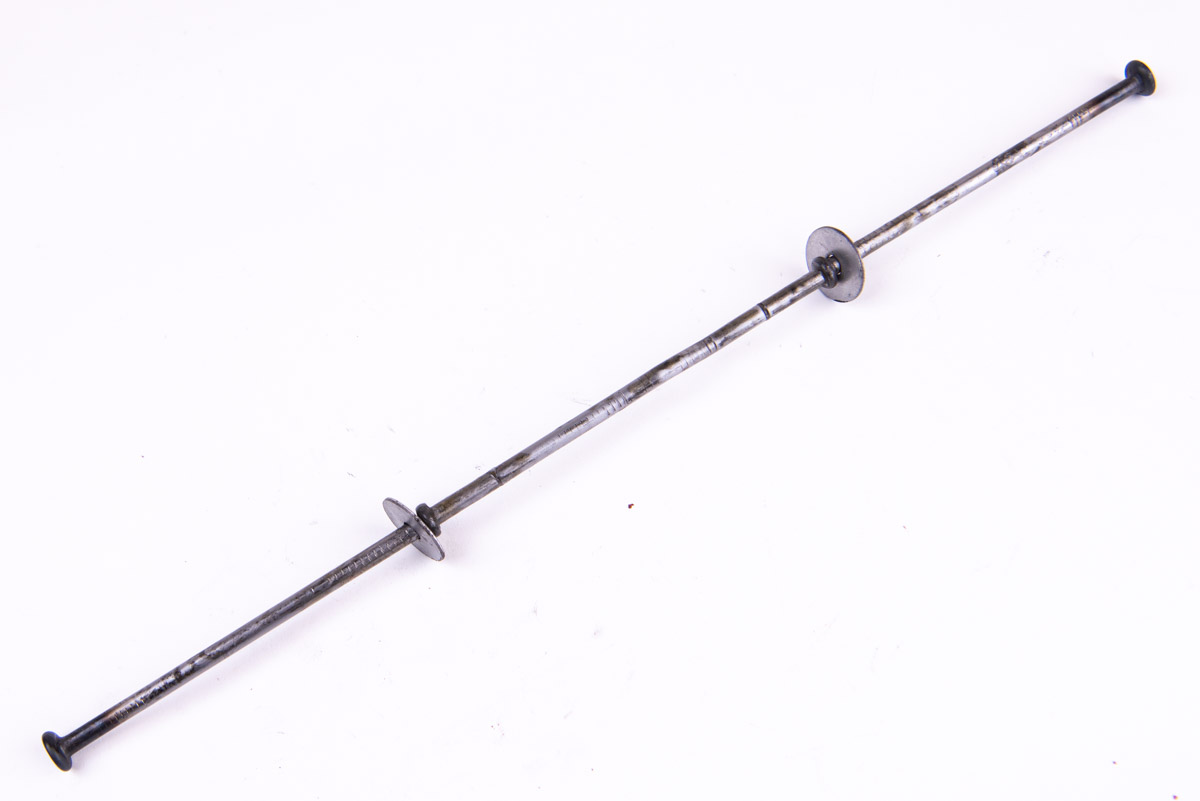

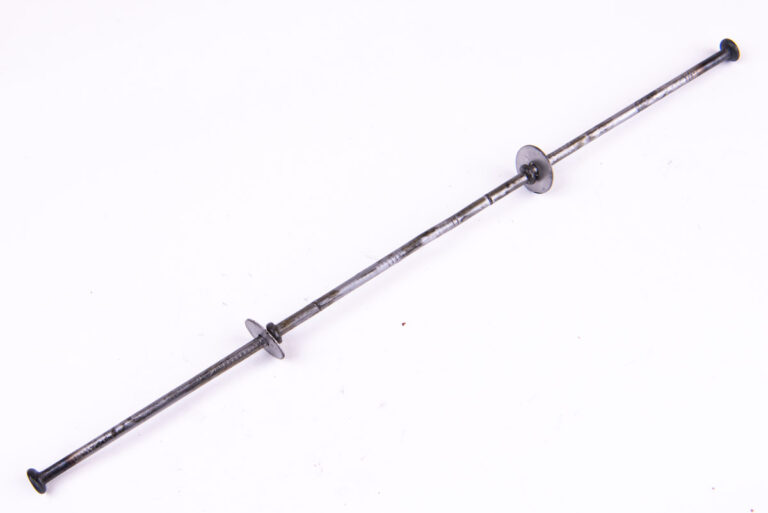

snap tie w/ washers

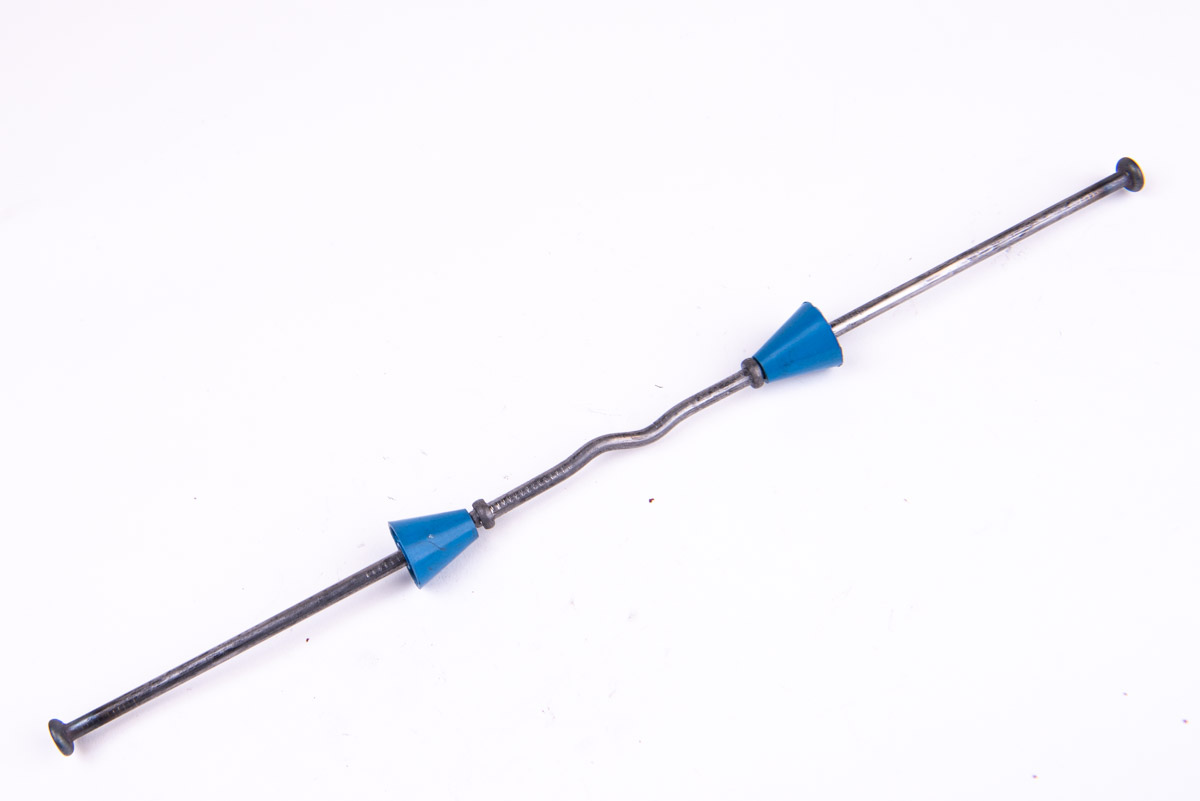

snap tie w/ cones
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 032-0006 | 6" Snap Tie 4-3/4" (washer) | box | 100 | 23.00 | 4200 |
| 032-0008 | 8" Snap Tie 4-3/4" (washer) | box | 100 | 24.00 | 3000 |
| 032-0010 | 10" Snap Tie 4-3/4" (washer) | box | 100 | 27.00 | 3000 |
| 032-0012 | 12" Snap Tie 4-3/4" (washer) | box | 100 | 30.00 | 3000 |
| 032-0014 | 14" Snap Tie 4-3/4" (washer) | box | 100 | 32.00 | 3000 |
| 032-1006 | 6" Snap Tie 4-3/4" (cone) | box | 100 | 23.00 | 4200 |
| 032-1008 | 8" Snap Tie 4-3/4" (cone) | box | 100 | 24.00 | 3000 |
| 032-1010 | 10" Snap Tie 4-3/4" (cone) | box | 100 | 27.00 | 3000 |
| 032-1012 | 12" Snap Tie 4-3/4" (cone) | box | 100 | 30.00 | 3000 |
| 032-1014 | 14" Snap Tie 4-3/4" (cone) | box | 100 | 32.00 | 3000 |
ultimate load
4500 lbs
safety factor rating
2.0-to-1 (2250 lbs)

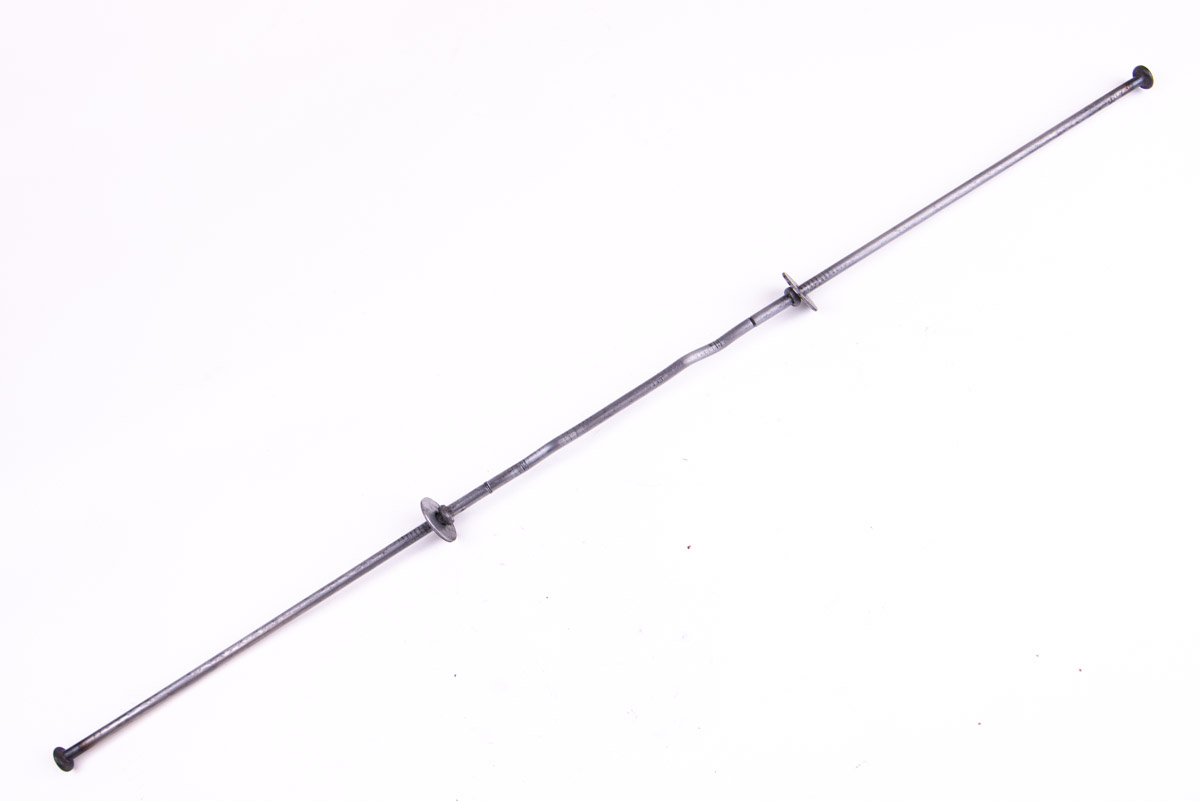

snap tie w/ washers

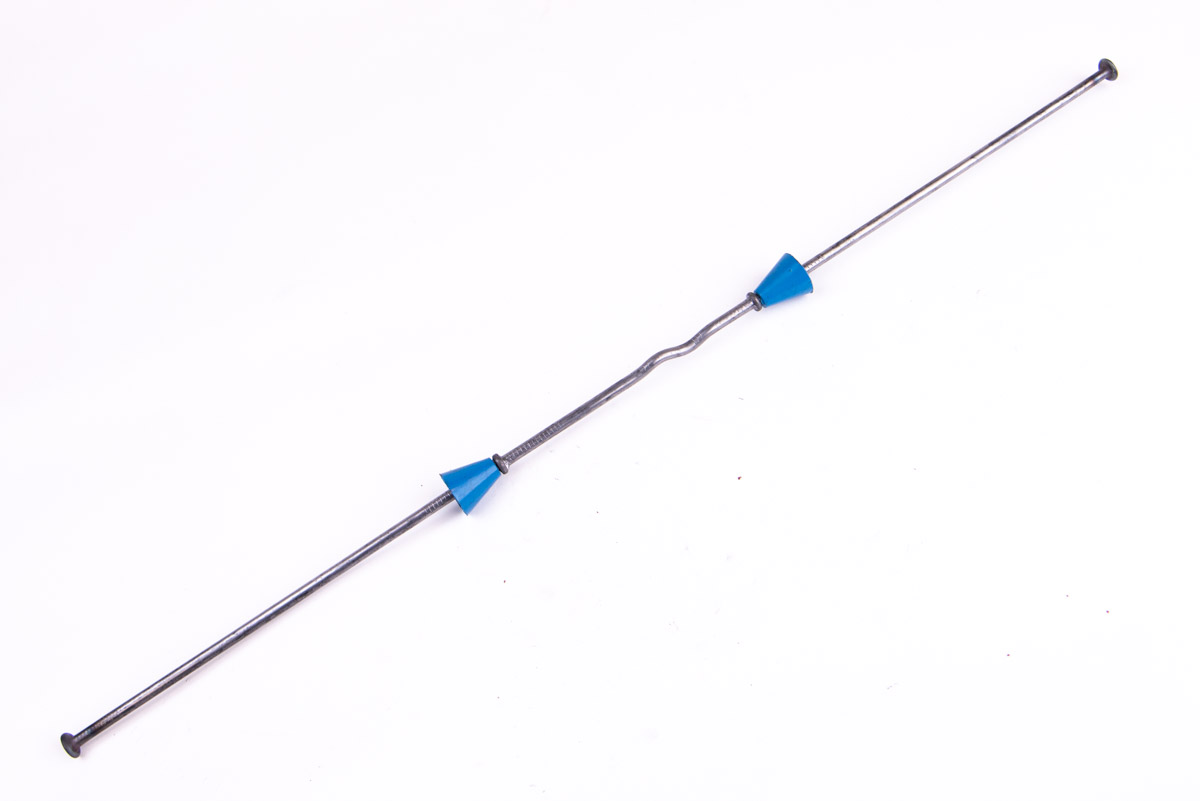

snap tie w/ cones
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 036-0006 | 6" Snap Tie 8-1/4" (washer) | box | 100 | 32.00 | 3000 |
| 036-0008 | 8" Snap Tie 8-1/4" (washer) | box | 100 | 34.00 | 2100 |
| 036-0010 | 10" Snap Tie 8-1/4" (washer) | box | 100 | 36.00 | 2100 |
| 036-0012 | 12" Snap Tie 8-1/4" (washer) | box | 100 | 38.00 | 2100 |
| 036-0014 | 14" Snap Tie 8-1/4" (washer) | box | 100 | 41.00 | 1800 |
| 036-1006 | 6" Snap Tie 8-1/4" (cone) | box | 100 | 32.00 | 3000 |
| 036-1008 | 8" Snap Tie 8-1/4" (cone) | box | 100 | 34.00 | 2100 |
| 036-1010 | 10" Snap Tie 8-1/4" (cone) | box | 100 | 36.00 | 2100 |
| 036-1012 | 12" Snap Tie 8-1/4" (cone) | box | 100 | 38.00 | 2100 |
| 036-1014 | 14" Snap Tie 8-1/4" (cone) | box | 100 | 41.00 | 1800 |

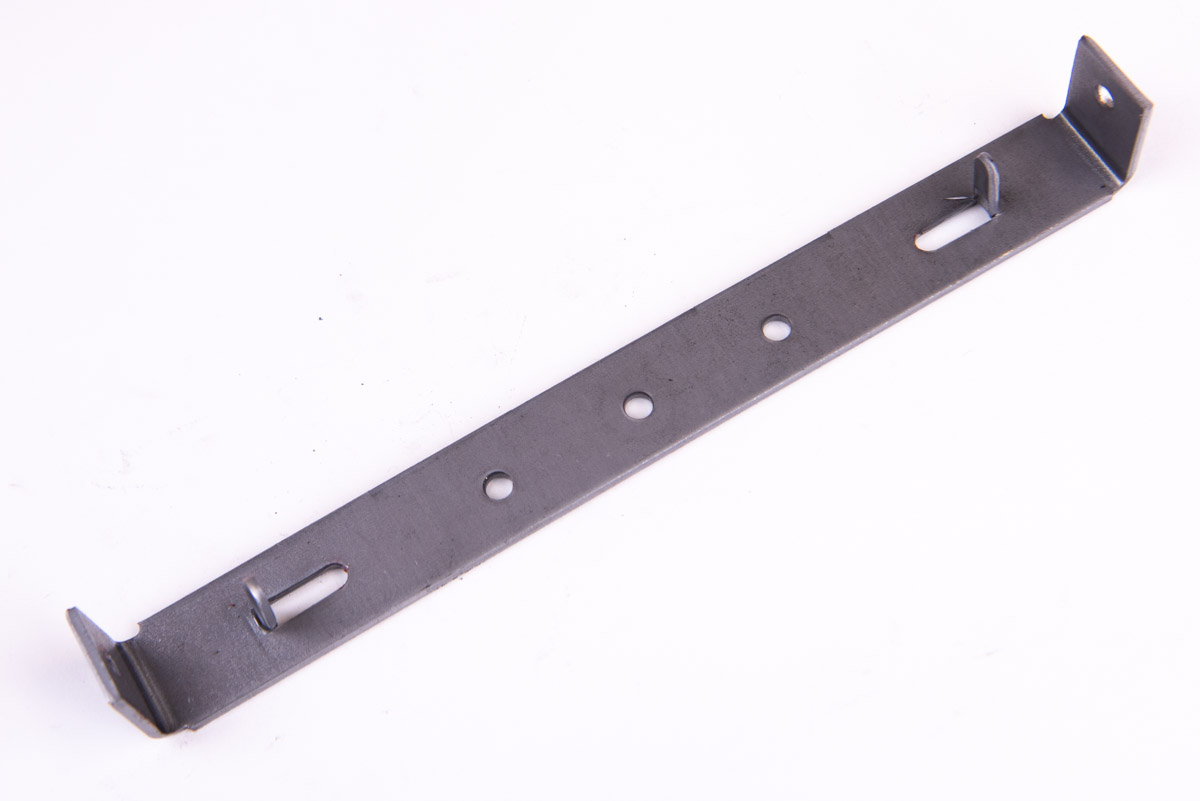

| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 028-1006 | 6" Ply Spacer 3/4" | box | 100 | 38.00 | 4200 |
| 028-1008 | 8" Ply Spacer 3/4" | box | 100 | 45.00 | 3000 |
| 028-1010 | 10" Ply Spacer 3/4" | box | 100 | 54.00 | 3000 |
| 028-1012 | 12" Ply Spacer 3/4" | box | 100 | 60.00 | 3000 |
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 029-0006 | 6" Ply Spacer 1-1/8" | box | 100 | 39.00 | 4200 |
| 029-0008 | 8" Ply Spacer 1-1/8" | box | 100 | 46.00 | 3000 |
| 029-0010 | 10" Ply Spacer 1-1/8" | box | 100 | 55.00 | 3000 |
| 029-0012 | 12" Ply Spacer 1-1/8" | box | 100 | 61.00 | 3000 |

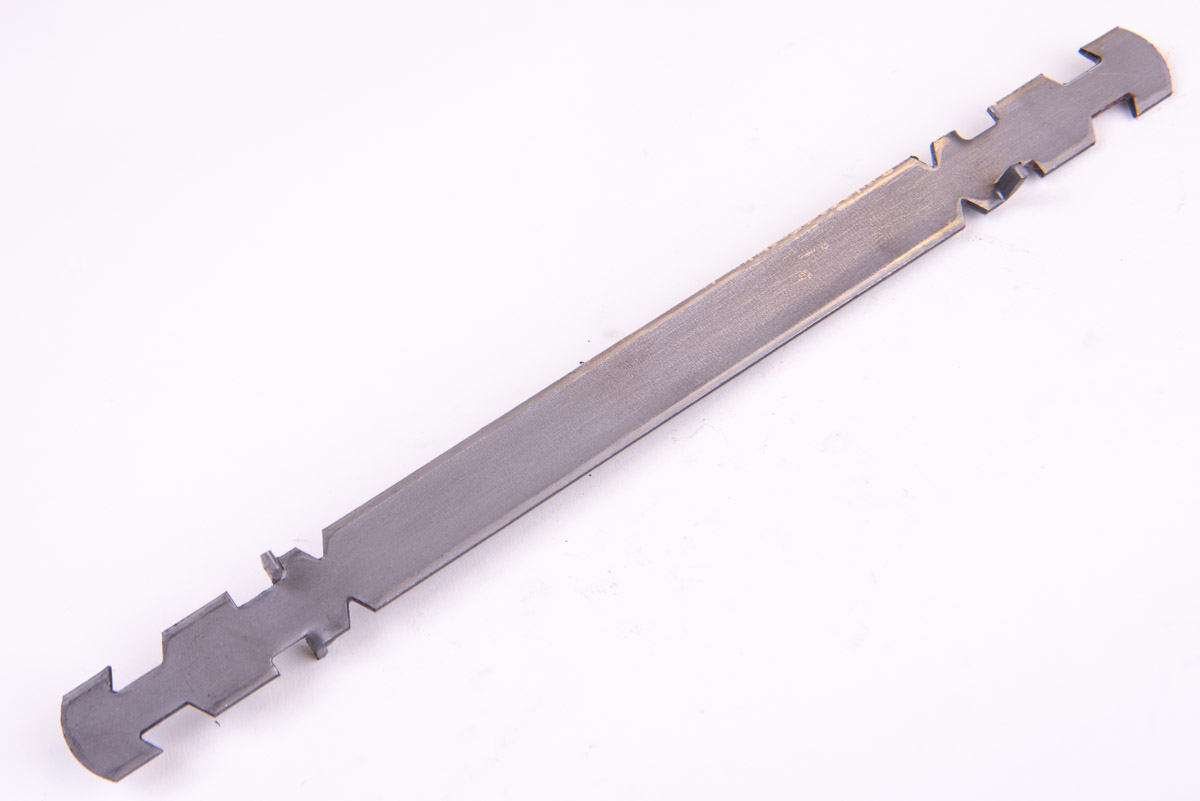

| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 041-0006 | 6" Stacking Tie | box | 100 | 29.00 | 7500 |
| 041-0008 | 8" Stacking Tie | box | 100 | 34.00 | 7500 |
| 041-0010 | 10" Stacking Tie | box | 100 | 40.00 | 7500 |
| 041-0012 | 12" Stacking Tie | box | 100 | 46.00 | 7500 |
| 041-0014 | 14" Stacking Tie | box | 100 | 52.00 | 3500 |
