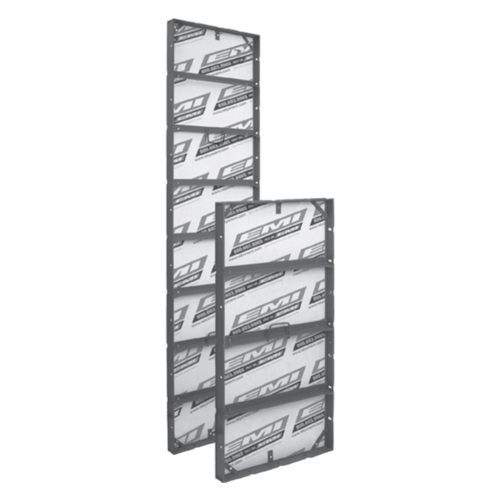

1. Elite series steel/Plywood Panels & Fillers

Winning Foundations start with elite Forming systems

Concrete professionals know Elite Forming Systems are the best tools for the job: setting more foundations in less time and with fewer issues. That's because Elite is built tough to exact standards. Rugged steel frames are robotically welded for consistent strength and fit across all panels, fillers and corners. Exclusive DuraCoat powder coating helps keep the frame rust-free under the harshest conditions. Top grade 1/2" HDO plywood is machine riveted to rugged 60,000 psi rolled steel frames for smooth, flat surfaces. Long-lasting performance makes the Elite Series a better investment.

Specs:

DuraCoat powder coated finish for faster clean-up, greater weatherability
Full line of panel heights, filler widths, corners, angles and metal fillers for creating virtually any form layout quickly and efficiently
Rugged 60,000 psi rolled steel frame exceeds industry standards
A full 2″ angle cross member assures unsurpassed frame strength and plywood support
Dado slots for tie placement are located at 12″ on center. A new feature of the Elite Series is Dado slots at 6″ and 18″ from each end of panel
Wedgebolt/accessory slots located at 6″ on center
EZ Lift handles for easier transport, set up and take down
Manufactured to precise dimensions, for consistent, accurate form alignment, with no grout leakage
No special tools required; fits most other systems
Backed by EMI world-class service
2-to-1 safety factor
Maximum pour pressure of 1,000 pounds per square foot

Elite series steel/Plywood Panels & Fillers Variations

2. Elite Series Steel/Plywood Panels & Fillers w/ Birch

Specs:

DuraCoat red powder-coated finish for faster clean-up, greater weatherability. Additional colors may be available. Call for details.
100% Birch panel offering LONG and SHORT GRAIN face directional veneer
Standard 220/220 Finnish PSF (Phenolic Saturated Film)
Exceptionally smooth uniform surface virtually eliminating grain transfer
Engineered multi-ply lay-up, which provides exceptional panel flatness
Top two layers are fully wood patched, effectively eliminates veneer collapse
Offers the lowest cost per pour of any architectural panel available

Elite Series Steel/Plywood Panels & Fillers w/ Birch Variations

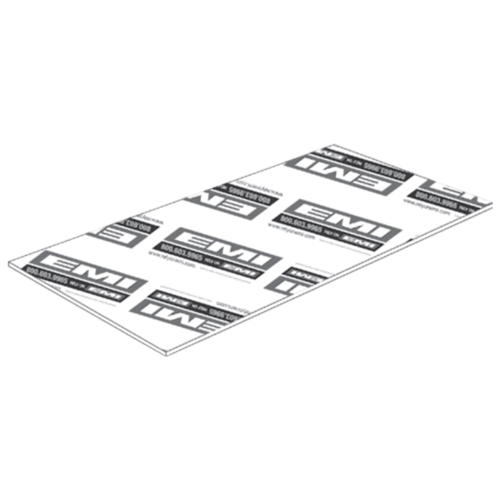

3. HDO Plywood rePlaCeMent FaCing

Cleaner Facing, smoother Pours

EMI Elite 1/2" HDO 5-Ply premium plywood features a strong, long-lasting, smooth pouring surface that releases cleanly and resists chipping and nail breakout. Edges are sealed, resisting moisture, oil, alkali, and concrete adhesion.

Specs:

5-ply premium plywood n 1/2″ thick
100/30 spc. HDO
All four edges sealed and squared
Special sizes available
5/8″ thick available – 50/Skid

HDO Plywood Replacement Facing Variations

4. Birch Plywood Replacement Facing

Cleaner Facing, smoother Pours

1/2" Xact2form® plywood offers a two-sided 220/220 PSF finish. Manufactured from 100% birch, slow grown in the chilly Siberian forests, this wood species is chosen for its tight grain cell structure and unprecedented strength characteristics. Xact2form® is a 100% birch panel offering LONG and SHORT GRAIN face directional veneer in a multi-ply construction.

Specs:

9-ply premium plywood n 1/2″ thick
220/220 Overlay – Good 2 Sides
All four edges sealed and squared
Special sizes available
Standard 220/220 Finnish PSF (Phenolic Saturated Film)
Produced in a two-step lay-up manufacturing process that gives an exceptionally smooth uniform surface, virtually eliminating grain transfer more commonly found in a one-step process
Engineered multi-ply lay-up, which provides exceptional panel flatness
Top two layers on each face are fully wood patched, effectively eliminating surface degradation after multiple reuses due to face veneer collapse
Offers the lowest cost per pour of any architectural panel available today
Used in free form, gang form or engineered frame system

Birch Plywood Replacement Facing Variations

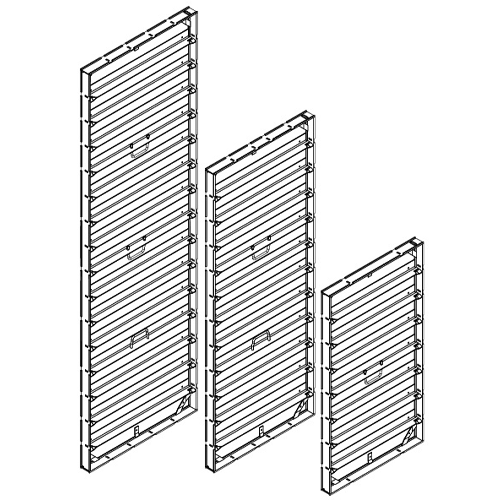

5. Elite Heavy Duty Form

The Elite Heavy Duty Form will help today’s contractor increase his productivity and at the same time improve the quality of his workmanship. With 2"x2" cross bracing every 6", the Elite Heavy Duty Form reduces pillowing and safely allows for increased rate of pour. These forms are ideal for column forming and also for larger jobs when gang forming is advantageous.

Specs:

DuraCoat powder-coated finish resists rust and decreases clean up time
Rugged 60,000 psi rolled steel frame exceeds industry standards
2″x2″ angle iron cross bracing every 6″ allows for increased rate of pour
Dado slots for tie placement are located at 12″ on center
Wedge bolt and accessory slots located at 6″ on center
Manufactured to precise dimensions for consistent, accurate form alignment with no grout leakage
Backed by EMI world-class service
Allows for 2000 PSF pour rate up to 24″ and 1000 PSF for 36″ columns
Cross braces every 6″

Elite Heavy Duty Form Variations

5. Elite Heavy Duty Form

The Elite Heavy Duty Form will help today’s contractor increase his productivity and at the same time improve the quality of his workmanship. With 2"x2" cross bracing every 6", the Elite Heavy Duty Form reduces pillowing and safely allows for increased rate of pour. These forms are ideal for column forming and also for larger jobs when gang forming is advantageous.

Specs:

DuraCoat powder-coated finish resists rust and decreases clean up time
Rugged 60,000 psi rolled steel frame exceeds industry standards
2″x2″ angle iron cross bracing every 6″ allows for increased rate of pour
Dado slots for tie placement are located at 12″ on center
Wedge bolt and accessory slots located at 6″ on center
Manufactured to precise dimensions for consistent, accurate form alignment with no grout leakage
Backed by EMI world-class service
Allows for 2000 PSF pour rate up to 24″ and 1000 PSF for 36″ columns
Cross braces every 6″

Elite Heavy Duty Form Variations

6. EMI Edge Seal

The Elite Heavy Duty Form will help today’s contractor increase his productivity and at the same time improve the quality of his workmanship. With 2"x2" cross bracing every 6", the Elite Heavy Duty Form reduces pillowing and safely allows for increased rate of pour. These forms are ideal for column forming and also for larger jobs when gang forming is advantageous.

Specs:

DuraCoat powder-coated finish resists rust and decreases clean up time
Rugged 60,000 psi rolled steel frame exceeds industry standards
2″x2″ angle iron cross bracing every 6″ allows for increased rate of pour
Dado slots for tie placement are located at 12″ on center
Wedge bolt and accessory slots located at 6″ on center
Manufactured to precise dimensions for consistent, accurate form alignment with no grout leakage
Backed by EMI world-class service
Allows for 2000 PSF pour rate up to 24″ and 1000 PSF for 36″ columns
Cross braces every 6″

EMI Edge Seal Variations

7. Steel Plywood Accessories

The Elite Heavy Duty Form will help today’s contractor increase his productivity and at the same time improve the quality of his workmanship. With 2"x2" cross bracing every 6", the Elite Heavy Duty Form reduces pillowing and safely allows for increased rate of pour. These forms are ideal for column forming and also for larger jobs when gang forming is advantageous.

Specs:

DuraCoat powder-coated finish resists rust and decreases clean up time
Rugged 60,000 psi rolled steel frame exceeds industry standards
2″x2″ angle iron cross bracing every 6″ allows for increased rate of pour
Dado slots for tie placement are located at 12″ on center
Wedge bolt and accessory slots located at 6″ on center
Manufactured to precise dimensions for consistent, accurate form alignment with no grout leakage
Backed by EMI world-class service
Allows for 2000 PSF pour rate up to 24″ and 1000 PSF for 36″ columns
Cross braces every 6″

Steel Plywood Accessories Variations

8. Steel Plywood Forming Ties

The Elite Heavy Duty Form will help today’s contractor increase his productivity and at the same time improve the quality of his workmanship. With 2"x2" cross bracing every 6", the Elite Heavy Duty Form reduces pillowing and safely allows for increased rate of pour. These forms are ideal for column forming and also for larger jobs when gang forming is advantageous.

Specs:

DuraCoat powder-coated finish resists rust and decreases clean up time
Rugged 60,000 psi rolled steel frame exceeds industry standards
2″x2″ angle iron cross bracing every 6″ allows for increased rate of pour
Dado slots for tie placement are located at 12″ on center
Wedge bolt and accessory slots located at 6″ on center
Manufactured to precise dimensions for consistent, accurate form alignment with no grout leakage
Backed by EMI world-class service
Allows for 2000 PSF pour rate up to 24″ and 1000 PSF for 36″ columns
Cross braces every 6″

Steel Plywood Forming Ties Variations

Anything you couldn’t find, or something you need help with? No time to browse?

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
24" x 10' Panel	149-2410	each	1	99.00	40
22" x 10' Filler	149-2210	each	1	94.00	40
20" x 10' Filler	149-2010	each	1	88.00	40
18" x 10' Filler	149-1810	each	1	82.00	40
16" x 10' Filler	149-1610	each	1	76.00	40
14" x 10' Filler	149-1410	each	1	70.00	40
12" x 10' Filler	149-1210	each	1	64.00	80
10" x 10' Filler	149-1010	each	1	58.00	80
8" x 10' Filler	149-0810	each	1	52.00	80
6" x 10' Filler	149-0610	each	1	46.00	80
5" x 10' Filler	149-0510	each	1	44.00	80
4" x 10' Filler	149-0410	each	1	42.00	80
2"x 10' Metal Filler	058-0210	each	1	30.00	100
1 1/2"x 10' Metal Filler	058-0110	each	1	27.00	100
1" x 10' Metal Filler	058-0010	each	1	24.00	100
6"x10' Inside Corner	057-0610	each	1	82.00	48
4"x10' Inside Corner	057-0410	each	1	62.00	60
10' Inside Bay Corner	057-2010	each	1	43.00	64
10' Outside Corner	059-0010	each	1	32.00	200
10' Outside Bay Corner	059-1110	each	1	98.00	24
10' Filler Angle	056-0010	each	1	14.00	200

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
24" x 9' Panel	149-2409	each	1	94.00	40
22" x 9' Filler	149-2209	each	1	84.00	40
20" x 9' Filler	149-2009	each	1	82.00	40
18" x 9' Filler	149-1809	each	1	80.00	40
16" x 9' Filler	149-1609	each	1	71.00	60
14" x 9' Filler	149-1409	each	1	68.00	60
12" x 9' Filler	149-1209	each	1	62.00	80
10" x 9' Filler	149-1009	each	1	55.00	80
8" x 9' Filler	149-0809	each	1	49.00	100
6" x 9' Filler	149-0609	each	1	44.00	100
5" x 9' Filler	149-0509	each	1	42.00	100
4" x 9' Filler	149-0409	each	1	39.00	100
2" x 9' Filler	058-0209	each	1	26.00	100
1-1/2" x 9' Metal Filler	058-0109	each	1	24.00	100
1" x 9' Metal Filler	058-0009	each	1	21.00	100
6" x 9' Inside Corner	057-0609	each	1	75.00	48
4" x 9' Inside Corner	057-0409	each	1	54.00	60
6" x 9' Inside Hinged	057-1609	each	1	73.00	50
9' Inside Bay Corner	057-2009	each	1	38.00	64
9' Outside Corner	059-0009	each	1	29.00	200
9' Outside Hinged	059-1009	each	1	32.00	100
9' Outside Bay Corner	059-1109	each	1	78.00	24
9' Filler Angle	056-0009	each	1	12.00	240

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
24" x 8' Panel	149-2408	each	1	88.00	40
22" x 8' Filler	149-2208	each	1	78.00	40
20" x 8' Filler	149-2008	each	1	74.00	40
18" x 8' Filler	149-1808	each	1	69.00	40
16" x 8' Filler	149-1608	each	1	66.00	60
14" x 8' Filler	149-1408	each	1	61.00	60
12" x 8' Filler	149-1208	each	1	57.00	80
10" x 8' Filler	149-1008	each	1	51.00	80
8" x 8' Filler	149-0808	each	1	45.00	100
6" x 8' Filler	149-0608	each	1	41.00	100
5" x 8' Filler	149-0508	each	1	39.00	100
4" x 8' Filler	149-0408	each	1	36.00	100
2" x 8' Metal Filler	058-0208	each	1	23.00	150
1-1/2" x 8' Metal Filler	058-0108	each	1	21.00	150
1" x 8' Metal Filler	058-0008	each	1	18.00	150
6" x 8' Inside Corner	057-0608	each	1	68.00	48
4" x 8' Inside Corner	057-0408	each	1	46.00	60
6" x 8' Inside Hinged	057-1608	each	1	64.00	50
8' Inside Bay Corner	057-2008	each	1	34.00	64
8' Outside Corner	059-0008	each	1	26.00	200
8' Outside Hinged	059-1008	each	1	30.00	100
8' Outside Bay Corner	059-1108	each	1	60.00	39
8' Filler Angle	056-0008	each	1	11.00	300
8' Pilaster Form	310-1608	each	1	86.00	24

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
24" x 6' Panel	149-2406	each	1	63.00	40
22" x 6' Filler	149-2206	each	1	59.00	40
20" x 6' Filler	149-2006	each	1	58.00	40
18" x 6' Filler	149-1806	each	1	52.00	40
16" x 6' Filler	149-1606	each	1	51.00	60
14" x 6' Filler	149-1406	each	1	48.00	60
12" x 6' Filler	149-1206	each	1	44.00	80
10" x 6' Filler	149-1006	each	1	39.00	80
8" x 6' Filler	149-0806	each	1	36.00	100
6" x 6' Filler	149-0606	each	1	32.00	100
5" x 6' Filler	149-0506	each	1	30.00	100
4" x 6' Filler	149-0406	each	1	27.00	100
2" x 6' Metal Filler	058-0206	each	1	17.00	150
1-1/2" x 6' Metal Filler	058-0106	each	1	15.00	200
1" x 6' Metal Filler	058-0006	each	1	13.00	200
6" x 6' Inside Corner	057-0606	each	1	52.00	48
4" x 6' Inside Corner	057-0406	each	1	37.00	60
6" x 6' Inside Hinged	057-1606	each	1	47.00	50
6' Inside Bay Corner	057-2006	each	1	25.00	64
6' Outside Corner	059-0006	each	1	18.00	200
6' Outside Hinged	059-1006	each	1	23.00	100
6' Outside Bay Corner	059-1106	each	1	46.00	45
6' Filler Angle	056-0006	each	1	8.00	300
6' Pilaster Form	310-1606	each	1	65.00	40

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
24" x 5' Panel	149-2405	each	1	55.00	40
22" x 5' Filler	149-2205	each	1	52.00	40
20" x 5' Filler	149-2005	each	1	49.00	40
18" x 5' Filler	149-1805	each	1	46.00	40
16" x 5' Filler	149-1605	each	1	43.00	60
14" x 5' Filler	149-1405	each	1	40.00	60
12" x 5' Filler	149-1205	each	1	36.00	80
10" x 5' Filler	149-1005	each	1	32.00	80
8" x 5' Filler	149-0805	each	1	27.00	100
6" x 5' Filler	149-0605	each	1	26.00	100
5" x 5' Filler	149-0505	each	1	24.00	100
4" x 5' Filler	149-0405	each	1	22.00	100
2" x 5' Metal Filler	058-0205	each	1	15.00	200
1-1/2" x 5' Metal Filler	058-0105	each	1	13.00	200
1" x 5' Metal Filler	058-0005	each	1	11.00	200
6" x 5' Inside Corner	057-0605	each	1	43.00	48
4" x 5' Inside Corner	057-0405	each	1	31.00	60
6" x 5' Inside Hinged	057-1605	each	1	42.00	50
5' Inside Bay Corner	057-2005	each	1	20.00	64
5' Outside Corner	059-0005	each	1	16.00	200
5' Outside Hinged	059-1005	each	1	19.00	100
5' Outside Bay Corner	059-1105	each	1	37.00	45
5' Filler Angle	056-0005	each	1	7.00	300
5' Pilaster Form	310-1605	each	1	52.00	50

Steel Plywood Forming

1. Elite series steel/Plywood Panels & Fillers

Winning Foundations start with elite Forming systems

Specs:

Elite series steel/Plywood Panels & Fillers Variations

2. Elite Series Steel/Plywood Panels & Fillers w/ Birch

Specs:

Elite Series Steel/Plywood Panels & Fillers w/ Birch Variations

3. HDO Plywood rePlaCeMent FaCing

Cleaner Facing, smoother Pours

EMI Elite 1/2" HDO 5-Ply premium plywood features a strong, long-lasting, smooth pouring surface that releases cleanly and resists chipping and nail breakout. Edges are sealed, resisting moisture, oil, alkali, and concrete adhesion.

Specs:

HDO Plywood Replacement Facing Variations

4. Birch Plywood Replacement Facing

Cleaner Facing, smoother Pours

Specs:

Birch Plywood Replacement Facing Variations

5. Elite Heavy Duty Form

Specs:

Elite Heavy Duty Form Variations

5. Elite Heavy Duty Form

Specs:

Elite Heavy Duty Form Variations

6. EMI Edge Seal

Specs:

EMI Edge Seal Variations

7. Steel Plywood Accessories

Specs:

Steel Plywood Accessories Variations

8. Steel Plywood Forming Ties

Specs:

Steel Plywood Forming Ties Variations

Anything you couldn’t find, or something you need help with? No time to browse?

Anything you couldn’t find, or something you need help with? No time to browse?

10' height - Elite series steel/Plywood Panels & Fillers

Anything you couldn’t find, or something you need help with? No time to browse?

10' height - Elite series steel/Plywood Panels & Fillers

Anything you couldn’t find, or something you need help with? No time to browse?

10' height - Elite series steel/Plywood Panels & Fillers

Anything you couldn’t find, or something you need help with? No time to browse?

10' height - Elite series steel/Plywood Panels & Fillers

Anything you couldn’t find, or something you need help with? No time to browse?

10' height - Elite series steel/Plywood Panels & Fillers

Anything you couldn’t find, or something you need help with? No time to browse?

10' height - Elite series steel/Plywood Panels & Fillers

Anything you couldn’t find, or something you need help with? No time to browse?

10' height - Elite series steel/Plywood Panels & Fillers

Anything you couldn’t find, or something you need help with? No time to browse?

2' Elite series steel/Plywood Panels & Fillers Variations

Who are we?

As a family-owned business, EMI Construction Products uses a hands-on approach to meet our customers' needs and expectations.
