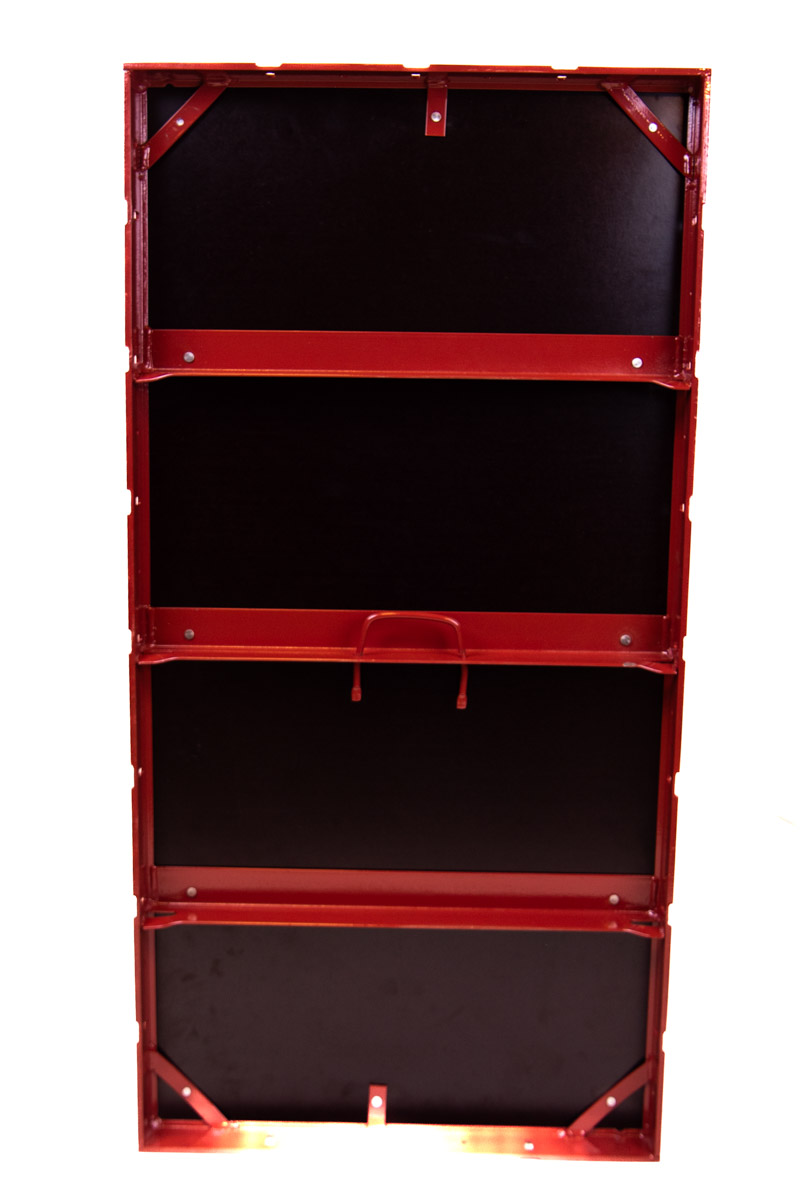

Elite Series Steel/Plywood Panels & Fillers w/ Birch

DuraCoat red powder-coated finish for faster clean-up, greater
weatherability. Additional colors may be available. Call for details.
100% Birch panel offering LONG and SHORT GRAIN face
directional veneer
Standard 220/220 Finnish PSF (Phenolic Saturated Film)
Exceptionally smooth uniform surface virtually eliminating
grain transfer
Engineered multi-ply lay-up, which provides exceptional panel flatness
Top two layers are fully wood patched, effectively eliminates
veneer collapse
Offers the lowest cost per pour of any architectural panel available

8' HEIGHT

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
24"x 8' Elite Pnl w/ Birch Wd	139-2408	each	1	88.00	40
22"x 8' Elite Pnl w/ Birch Wd	139-2208	each	1	78.00	40
20"x 8' Elite Pnl w/ Birch Wd	139-2008	each	1	74.00	40
18"x 8' Elite Pnl w/ Birch Wd	139-1808	each	1	69.00	40
16"x 8' Elite Pnl w/ Birch Wd	139-1608	each	1	66.00	60
14"x 8' Elite Pnl w/ Birch Wd	139-1408	each	1	61.00	60
12"x 8' Elite Pnl w/ Birch Wd	139-1208	each	1	57.00	80
10"x 8' Elite Pnl w/ Birch Wd	139-1008	each	1	51.00	80
8"x 8' Elite Pnl w/ Birch Wd	139-0808	each	1	45.00	100
6"x 8' Elite Pnl w/ Birch Wd	139-0608	each	1	41.00	100
5"x 8' Elite Pnl w/ Birch Wd	139-0508	each	1	39.00	100
4"x 8' Elite Pnl w/ Birch Wd	139-0408	each	1	36.00	100

6' HEIGHT

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
24"x 6' Elite Pnl w/ Birch Wd	139-2406	each	1	63.00	40
22"x 6' Elite Pnl w/ Birch Wd	139-2206	each	1	59.00	40
20"x 6' Elite Pnl w/ Birch Wd	139-2006	each	1	58.00	40
18"x 6' Elite Pnl w/ Birch Wd	139-1806	each	1	52.00	40
16"x 6' Elite Pnl w/ Birch Wd	139-1606	each	1	51.00	60
14"x 6' Elite Pnl w/ Birch Wd	139-1406	each	1	48.00	60
12"x 6' Elite Pnl w/ Birch Wd	139-1206	each	1	44.00	80
10"x 6' Elite Pnl w/ Birch Wd	139-1006	each	1	39.00	80
8"x 6' Elite Pnl w/ Birch Wd	139-0806	each	1	36.00	100
6"x 6' Elite Pnl w/ Birch Wd	139-0606	each	1	32.00	100
5"x 6' Elite Pnl w/ Birch Wd	139-0506	each	1	30.00	100
4"x 6' Elite Pnl w/ Birch Wd	139-0406	each	1	27.00	100

5' HEIGHT

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
24"x 5' Elite Pnl w/ Birch Wd	139-2405	each	1	55.00	40
22"x 5' Elite Pnl w/ Birch Wd	139-2205	each	1	52.00	40
20"x 5' Elite Pnl w/ Birch Wd	139-2005	each	1	49.00	40
18"x 5' Elite Pnl w/ Birch Wd	139-1805	each	1	46.00	40
16"x 5' Elite Pnl w/ Birch Wd	139-1605	each	1	43.00	60
14"x 5' Elite Pnl w/ Birch Wd	139-1405	each	1	40.00	60
12"x 5' Elite Pnl w/ Birch Wd	139-1205	each	1	36.00	80
10"x 5' Elite Pnl w/ Birch Wd	139-1005	each	1	32.00	80
8"x 5' Elite Pnl w/ Birch Wd	139-0805	each	1	27.00	100
6"x 5' Elite Pnl w/ Birch Wd	139-0605	each	1	26.00	100
5"x 5' Elite Pnl w/ Birch Wd	139-0505	each	1	24.00	100
4"x 5' Elite Pnl w/ Birch Wd	139-0405	each	1	22.00	100

4' HEIGHT

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
24"x 4' Elite Pnl w/ Birch Wd	139-2404	each	1	43.00	40
22"x 4' Elite Pnl w/ Birch Wd	139-2204	each	1	40.00	40
20"x 4' Elite Pnl w/ Birch Wd	139-2004	each	1	39.00	40
18"x 4' Elite Pnl w/ Birch Wd	139-1804	each	1	38.00	40
16"x 4' Elite Pnl w/ Birch Wd	139-1604	each	1	34.00	60
14"x 4' Elite Pnl w/ Birch Wd	139-1404	each	1	32.00	60
12"x 4' Elite Pnl w/ Birch Wd	139-1204	each	1	29.00	80
10"x 4' Elite Pnl w/ Birch Wd	139-1004	each	1	27.00	80
8"x 4' Elite Pnl w/ Birch Wd	139-0804	each	1	23.00	100
6"x 4' Elite Pnl w/ Birch Wd	139-0604	each	1	21.00	100
5"x 4' Elite Pnl w/ Birch Wd	139-0504	each	1	20.00	100
4"x 4' Elite Pnl w/ Birch Wd	139-0404	each	1	18.00	100

3' HEIGHT

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
24"x 3' Elite Pnl w/ Birch Wd	139-2403	each	1	36.00	40
22"x 3' Elite Pnl w/ Birch Wd	139-2203	each	1	31.00	40
20"x 3' Elite Pnl w/ Birch Wd	139-2003	each	1	28.00	40
18"x 3' Elite Pnl w/ Birch Wd	139-1803	each	1	27.00	40
16"x 3' Elite Pnl w/ Birch Wd	139-1603	each	1	25.00	60
14"x 3' Elite Pnl w/ Birch Wd	139-1403	each	1	22.00	60
12"x 3' Elite Pnl w/ Birch Wd	139-1203	each	1	21.00	80
10"x 3' Elite Pnl w/ Birch Wd	139-1003	each	1	20.00	80
8"x 3' Elite Pnl w/ Birch Wd	139-0803	each	1	17.00	100
6"x 3' Elite Pnl w/ Birch Wd	139-0603	each	1	15.00	100
5"x 3' Elite Pnl w/ Birch Wd	139-0503	each	1	14.00	100
4"x 3' Elite Pnl w/ Birch Wd	139-0403	each	1	13.00	100

2' HEIGHT

Description	Part Number	Unit	Sold As	Unit Wgt	Skid Qty
24"x 2' Elite Pnl w/ Birch Wd	139-2402	each	1	31.00	40
22"x 2' Elite Pnl w/ Birch Wd	139-2202	each	1	27.00	40
20"x 2' Elite Pnl w/ Birch Wd	139-2002	each	1	24.00	40
18"x 2' Elite Pnl w/ Birch Wd	139-1802	each	1	20.00	40
16"x 2' Elite Pnl w/ Birch Wd	139-1602	each	1	18.00	60
14"x 2' Elite Pnl w/ Birch Wd	139-1402	each	1	17.00	60
12"x 2' Elite Pnl w/ Birch Wd	139-1202	each	1	16.00	80
10"x 2' Elite Pnl w/ Birch Wd	139-1002	each	1	15.00	80
8"x 2' Elite Pnl w/ Birch Wd	139-0802	each	1	13.00	100
6"x 2' Elite Pnl w/ Birch Wd	139-0602	each	1	12.00	100
5"x 2' Elite Pnl w/ Birch Wd	139-0502	each	1	11.00	100
4"x 2' Elite Pnl w/ Birch Wd	139-0402	each	1	8.00	100
