Steel Plywood Forming Ties

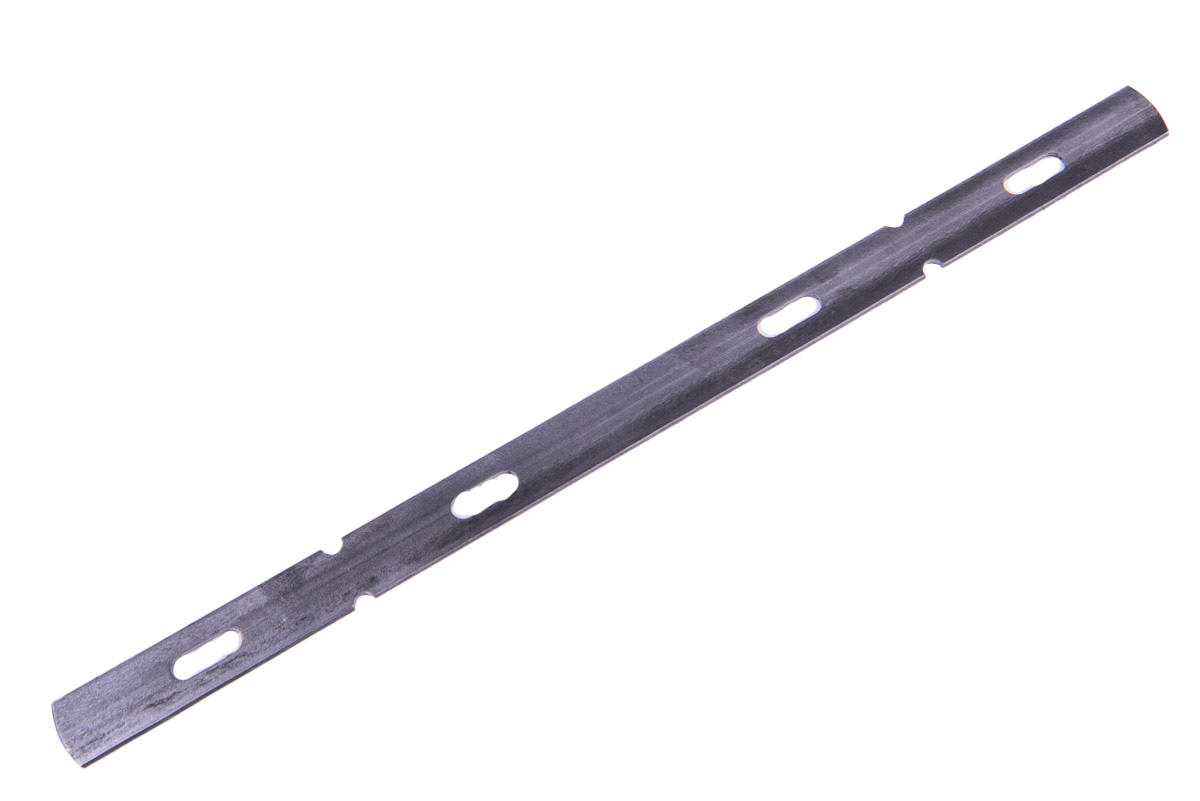

X-Flat Standard Wall Tie

ultimate load

6000 lbs

safety factor rating

2.0-to-1 (3000 lbs)

1/4" break back – rolled edges

Part Number	Description	Unit	Sold As	Unit Wgt (lbs.)	Skid Qty
001-0004	4" Std. X-Flat	box	100	20.00	10000
001-0006	6" Std. X-Flat	box	100	24.00	10000
001-0008	8" Std. X-Flat	box	100	29.00	10000
001-0010	10" Std. X-Flat	box	100	34.00	10000
001-0012	12" Std. X-Flat	box	100	40.00	10000
001-0014	14" Std. X-Flat	box	100	44.00	5000
001-0016	16" Std. X-Flat	box	100	48.00	5000
001-0018	18" Std. X-Flat	bundle	50	26.00	5000
001-0020	20" Std. X-Flat	bundle	50	29.00	2500
001-0022	22" Std. X-Flat	bundle	50	31.00	2500
001-0024	24" Std. X-Flat	bundle	50	34.00	2500
001-0026	26" Std. X-Flat	bundle	50	36.00	2500
001-0028	28" Std. X-Flat	bundle	50	39.00	2500
001-0030	30" Std. X-Flat	bundle	50	41.00	2500
001-0032	32" Std. X-Flat	bundle	50	43.00	2500
001-0034	34" Std. X-Flat	bundle	50	45.00	2500
001-0036	36" Std. X-Flat	bundle	50	48.00	2500
001-0038	38" Std. X-Flat	bundle	50	50.00	2500
001-0040	40" Std. X-Flat	bundle	50	52.00	2500
001-0042	42" Std. X-Flat	bundle	25	27.00	2500
001-0044	44" Std. X-Flat	bundle	25	29.00	2500
001-0046	46" Std. X-Flat	bundle	25	30.00	2500
001-0048	48" Std. X-Flat	bundle	25	32.00	2500

X-Flat Heavy Duty Wall Tie

ultimate load

7000 lbs

safety factor rating

2.0-to-1 (3500 lbs)

1/4" break back – rolled edges

Part Number	Description	Unit	Sold As	Unit Wgt (lbs.)	Skid Qty
002-0004	4" HD X-Flat	box	100	29.00	10000
002-0006	6" HD X-Flat	box	100	32.00	10000
002-0008	8" HD X-Flat	box	100	37.00	10000
002-0010	10" HD X-Flat	box	100	42.00	10000
002-0012	12" HD X-Flat	box	100	48.00	10000
002-0014	14" HD X-Flat	box	100	53.00	5000
002-0016	16" HD X-Flat	box	100	59.00	5000
002-0018	18" HD X-Flat	bundle	50	32.00	5000
002-0020	20" HD X-Flat	bundle	50	35.00	2500
002-0022	22" HD X-Flat	bundle	50	38.00	2500
002-0024	24" HD X-Flat	bundle	50	40.00	2500
002-0026	26" HD X-Flat	bundle	50	43.00	2500
002-0028	28" HD X-Flat	bundle	50	46.00	2500
002-0030	30" HD X-Flat	bundle	50	47.00	2500
002-0032	32" HD X-Flat	bundle	50	51.00	2500
002-0034	34" HD X-Flat	bundle	50	54.00	2500
002-0036	36" HD X-Flat	bundle	50	57.00	2500
002-0038	38" HD X-Flat	bundle	50	60.00	2500
002-0040	40" HD X-Flat	bundle	50	63.00	2500
002-0042	42" HD X-Flat	bundle	25	32.00	2500
002-0044	44" HD X-Flat	bundle	25	34.00	2500
002-0046	46" HD X-Flat	bundle	25	36.00	2500
002-0048	48" HD X-Flat	bundle	25	37.00	2500

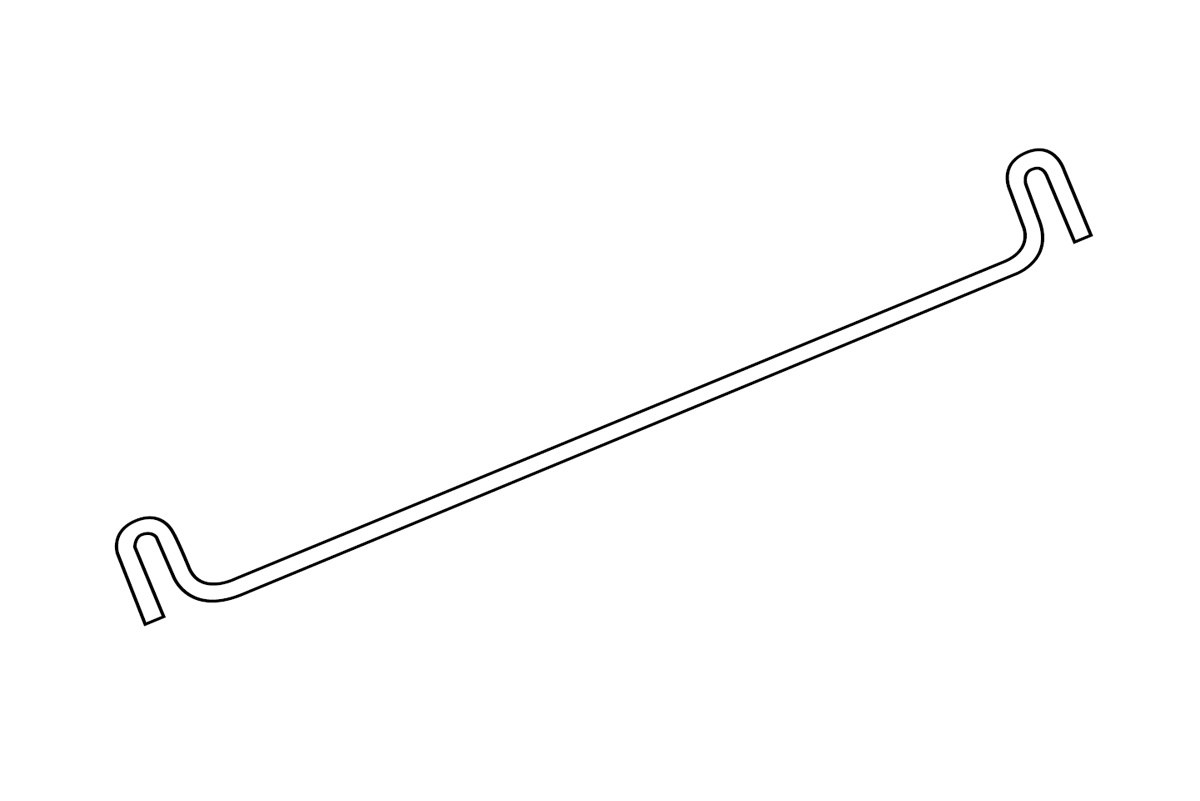

Wire S Base Wall Tie

ultimate load

3000 lbs

safety factor rating

2.0-to-1 1500 lbs)

Part Number	Description	Unit	Sold As	Unit Wgt (lbs.)	Skid Qty
004-0006	6" Wire S Base	box	100	16.00	10000
004-0008	8" Wire S Base	box	100	18.00	10000
004-0010	10" Wire S Base	each	100	20.00	10000
004-0012	12" Wire S Base	each	100	22.00	10000
004-0014	14" Wire S Base	box	100	24.00	7500
004-0016	16" Wire S Base	box	100	26.00	7500
004-0018	18" Wire S Base	box	100	28.00	7500
004-0020	20" Wire S Base	box	100	32.00	5000
004-0022	22" Wire S Base	box	100	34.00	5000
004-0024	24" Wire S Base	box	100	36.00	5000

Heavy Duty Loop Tie

ultimate load

6000 lbs

safety factor rating

2.0-to-1 3000 lbs)

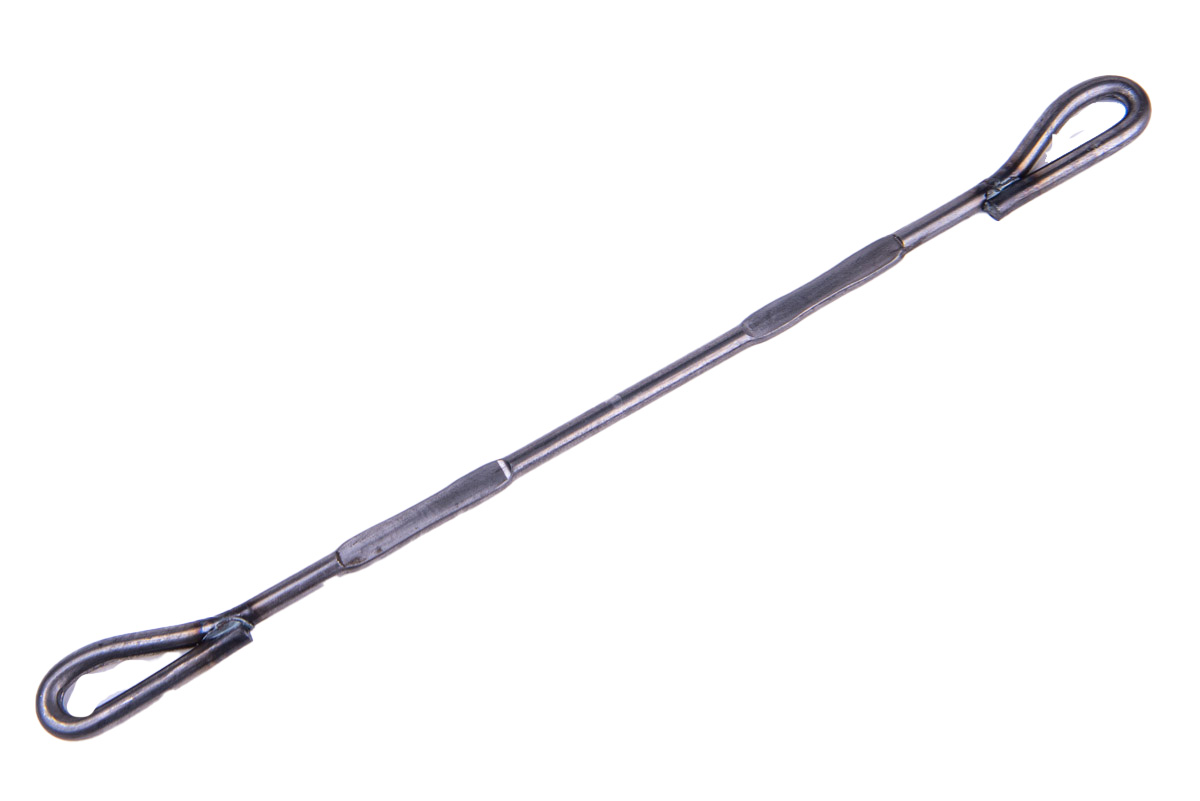

HEAVY DUTY LOOP TIE

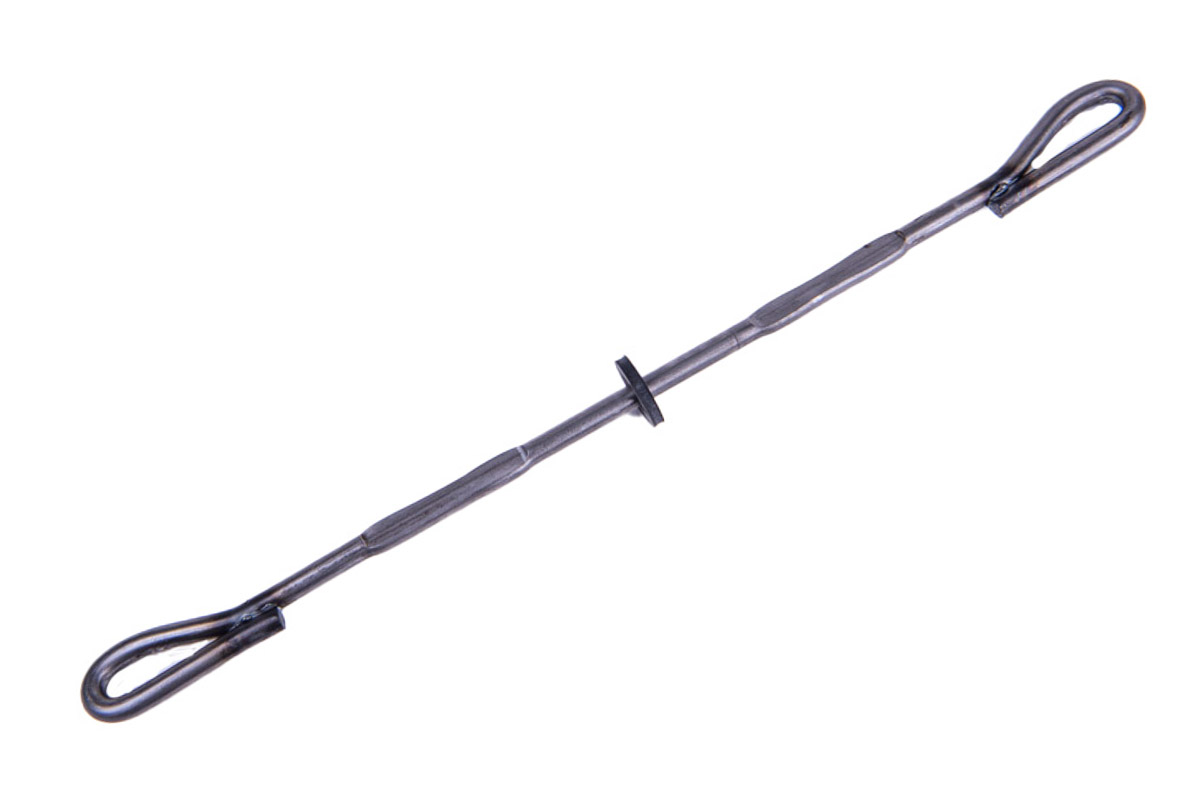

LOOP TIE W/ WATER SEAL

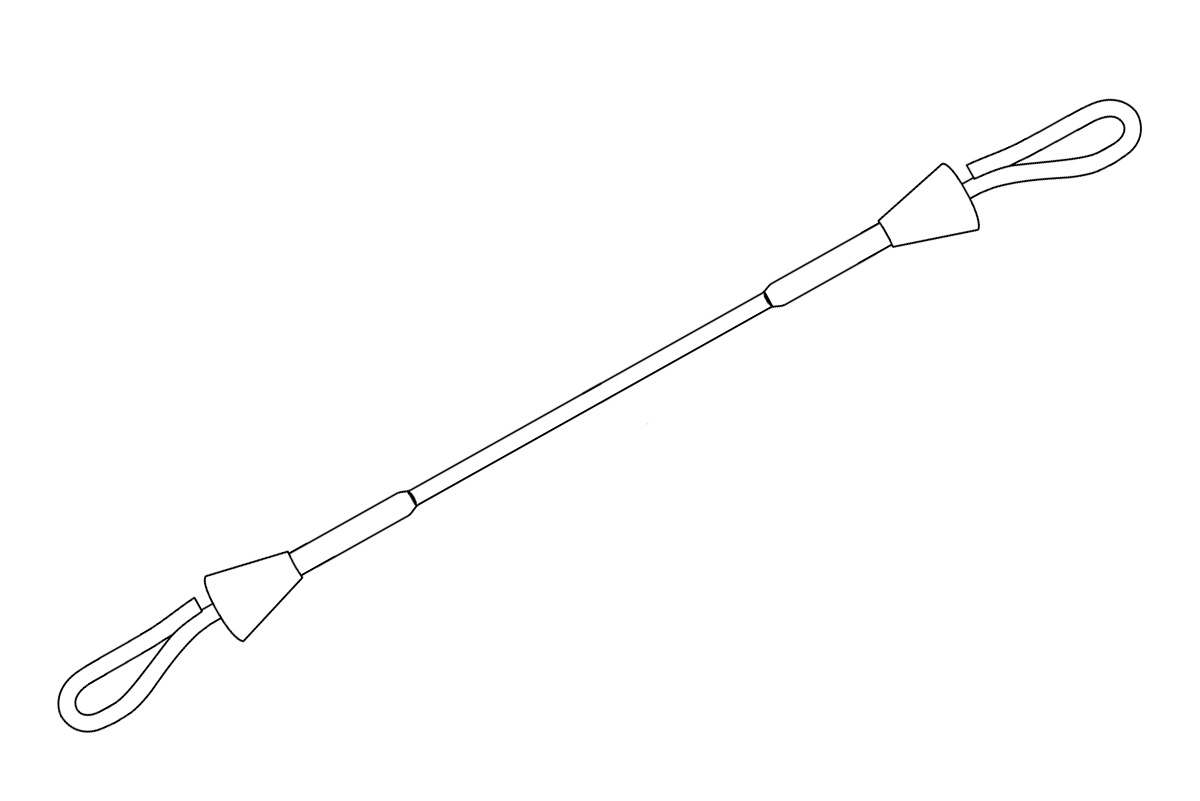

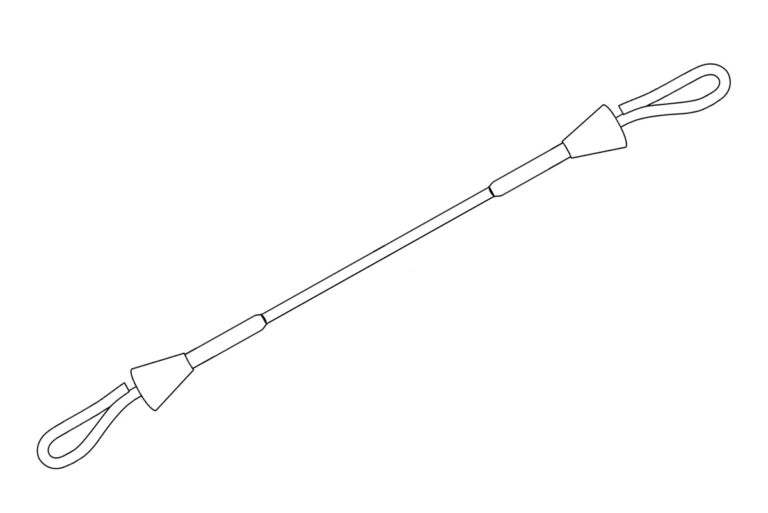

loop tie w/ cone

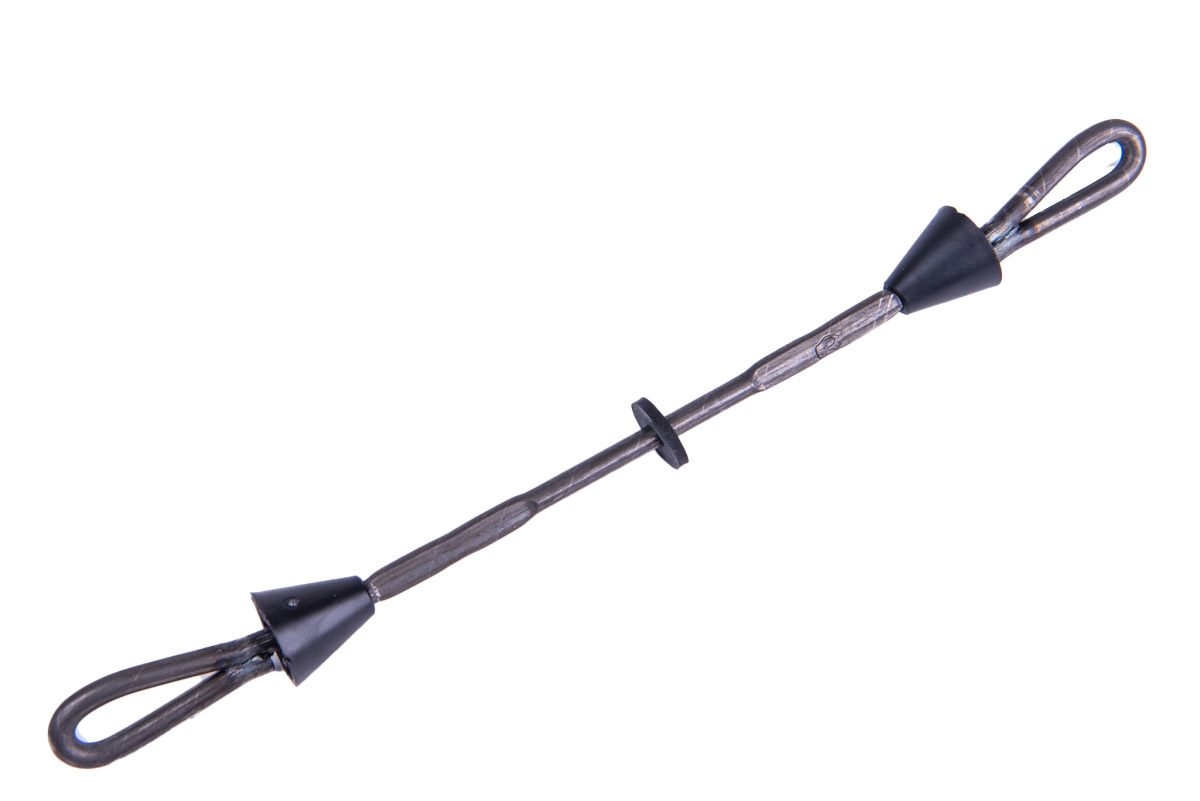

loop tie w/ cones and water seal

Part Number	Description	Unit	Sold As	Unit Wgt (lbs.)
024-0006	6" HD Loop Tie	box	100	20.00
024-0008	8" HD Loop Tie	box	100	22.00
024-0010	10" HD Loop Tie	box	100	25.00
024-0012	12" HD Loop Tie	box	100	28.00
024-0014	14" HD Loop Tie	box	100	31.00
024-0016	16" HD Loop Tie	box	100	33.00
024-0018	18" HD Loop Tie	box	100	36.00
024-0020	20" HD Loop Tie	box	100	40.00
024-0022	22" HD Loop Tie	box	100	42.00
024-0024	24" HD Loop Tie	box	100	44.00
024-1006	6" HD Loop Tie w Cone	each	50	11.00
024-1008	8" HD Loop Tie w Cone	box	50	12.00
024-1010	10" HD Loop Tie w Cone	box	50	13.00
024-1012	12" HD Loop Tie w Cone	box	50	15.00
024-1014	14" HD Loop Tie w Cone	box	50	16.00
024-1016	16" HD Loop Tie w Cone	box	50	17.00
024-1018	18" HD Loop Tie w Cone	box	50	19.00
024-1020	20" HD Loop Tie w Cone	box	50	20.00
024-1022	22" HD Loop Tie w Cone	box	50	21.00
024-1024	24" HD Loop Tie w Cone	box	50	23.00
024-0306	6" HD Loop Tie w Seal	box	100	21.00
024-0308	8" HD Loop Tie w Seal	box	100	23.00
024-0310	10" HD Loop Tie w Seal	box	100	26.00
024-0312	12" HD Loop Tie w Seal	box	100	29.00
024-0314	14" HD Loop Tie w Sea	box	100	32.00
024-0316	16" HD Loop Tie w Seal	box	100	34.00
024-0318	18" HD Loop Tie w Seal	box	100	37.00
024-0320	20" HD Loop Tie w Seal	box	100	41.00
024-0322	22" HD Loop Tie w Seal	box	100	43.00
024-0324	24" HD Loop Tie w Seal	box	100	45.00
024-1306	6" HD Loop Tie w C/WS	box	50	12.00
024-1308	8" HD Loop Tie w C/WS	box	50	13.00
024-1310	10" HD Loop Tie w C/WS	box	50	14.00
024-1312	12" HD Loop Tie w C/WS	box	50	16.00
024-1314	14" HD Loop Tie w C/WS	box	50	17.00
024-1316	16" HD Loop Tie w C/WS	box	50	18.00
024-1318	18" HD Loop Tie w C/WS	box	50	20.00
024-1320	20" HD Loop Tie w C/WS	box	50	21.00
024-1322	22" HD Loop Tie w C/WS	box	50	22.00
024-1324	24" HD Loop Tie w C/WS	box	50	23.00

Heavy Duty Gang Loop Tie

ultimate load

6000 lbs

safety factor rating

2.0-to-1 3000 lbs)

Part Number	Description	Unit	Sold As	Unit Wgt (lbs.)	Skid Qty
026-0006	6" HD Gang Loop	box	100	27.00	5000
026-0008	8" HD Gang Loop	box	100	30.00	5000
026-0010	10" HD Gang Loop	box	100	33.00	5000
026-0012	12" HD Gang Loop	box	100	36.00	5000
026-0014	14" HD Gang Loop	box	100	38.00	5000
026-0016	16" HD Gang Loop	box	100	42.00	4000
026-0018	18" HD Gang Loop	box	100	44.00	4000
026-0020	20" HD Gang Loop	box	100	47.00	4000
026-0022	22" HD Gang Loop	box	100	50.00	4000
026-0024	24" HD Gang Loop	box	100	52.00	4000
