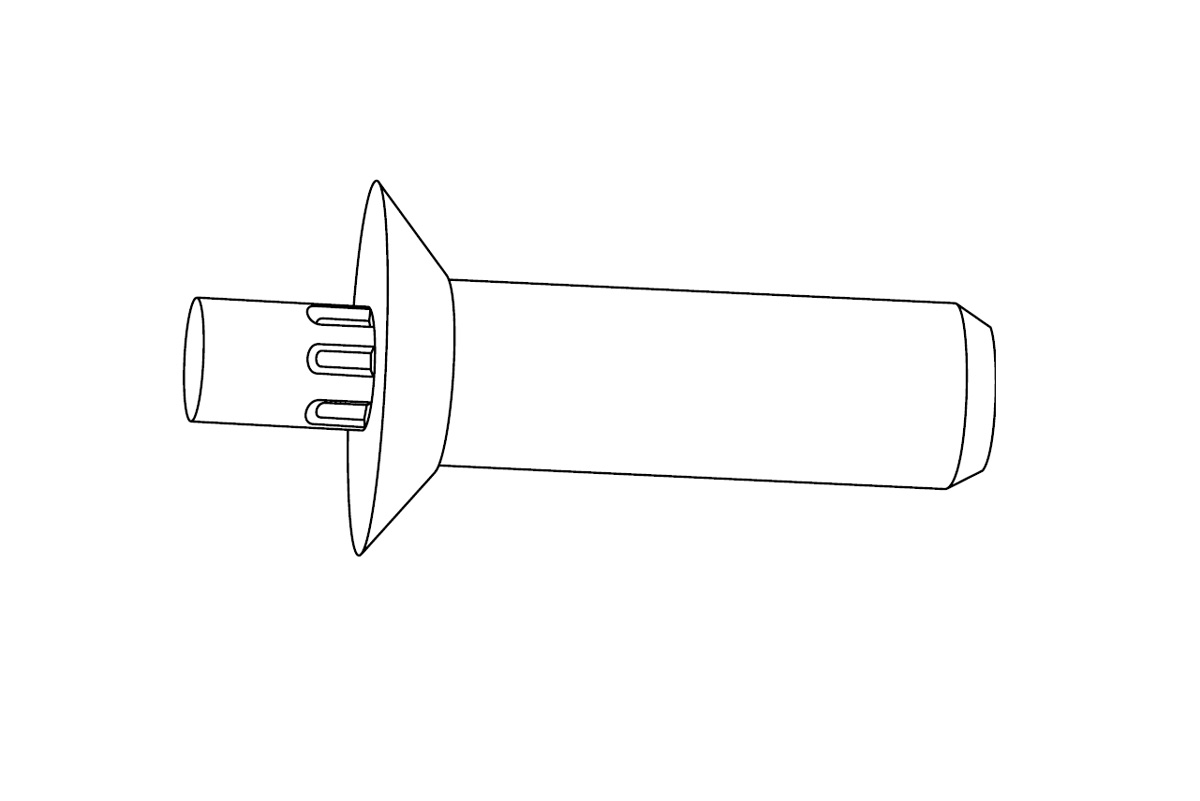

Drive Rivet
The EMI Drive Rivet is a rivet that allows the contractor to replace the HDO Plywood in his forms and fillers himself. Just put rivet in place and strike pin down with hammer to secure rivet.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 050-5002 | 1/2" Drive Rivet | box | 100 | 0.05 | 0 |
| 050-5003 | 5/8" Drive Rivet | box | 100 | 0.06 | 0 |
- Discounts available at 10,000 pieces

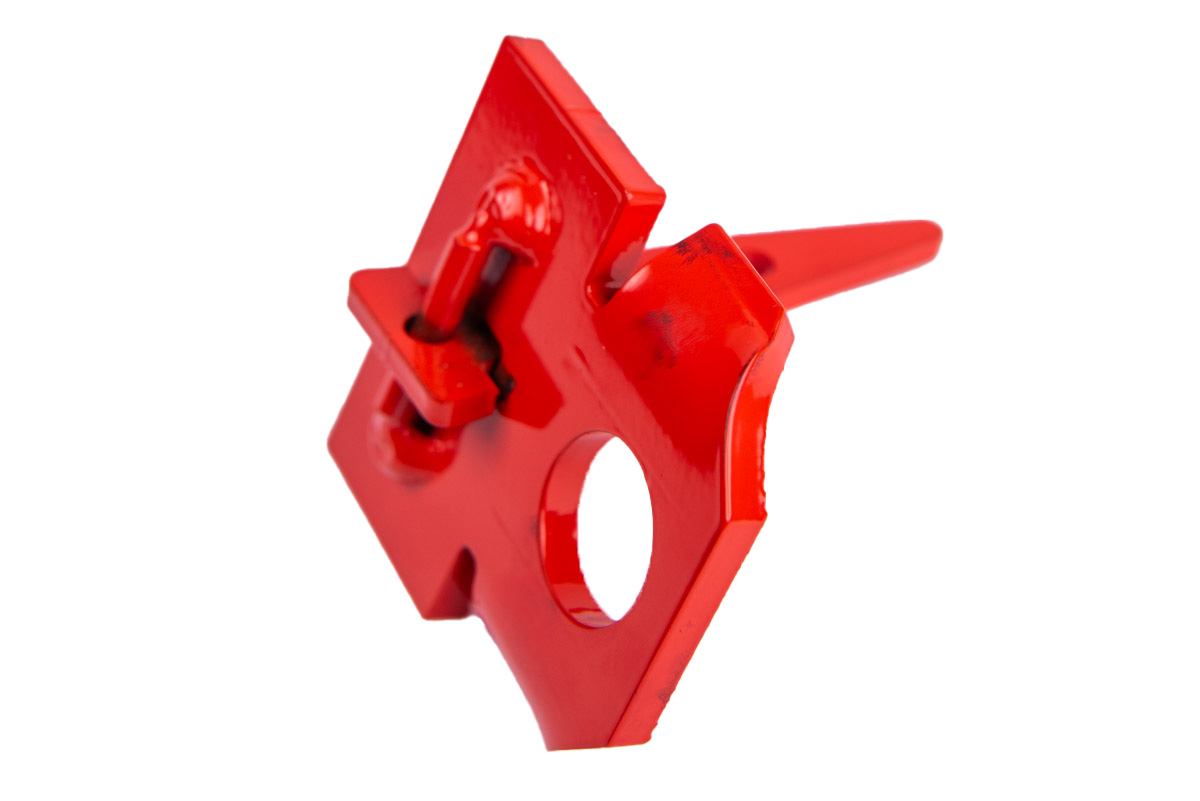

Safety Eye
Safety Eyes are attached to the vertical side rails for easy attachment of personal safety equipment during climbing.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 050-7000 | Safety Eye | each | 1 | 0.71 |

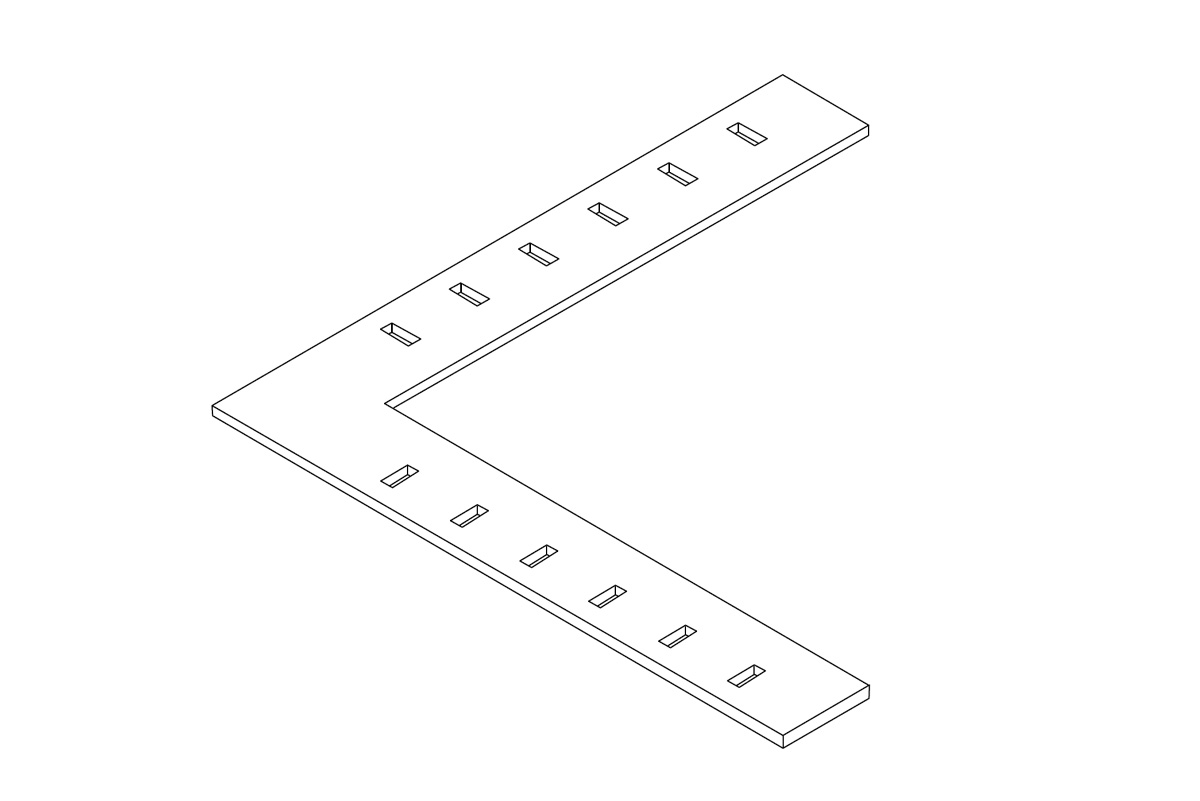

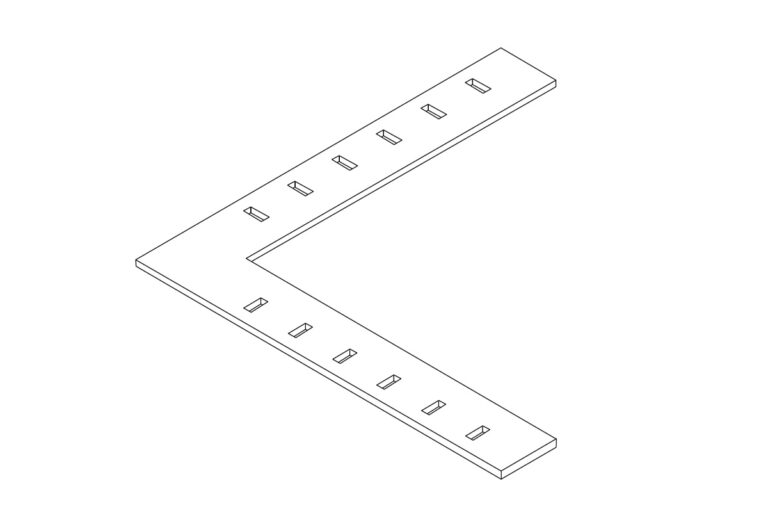

Footing Corner Bracket
The Footing Corner Bracket is used when forming footings, pads or slabs. Attached at the top and bottom of each corner the Footing Corner Bracket does a nice job reinforcing corners when laying down panels.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 051-2100 | Footing Corner Bracket | each | 1 | 4.40 |

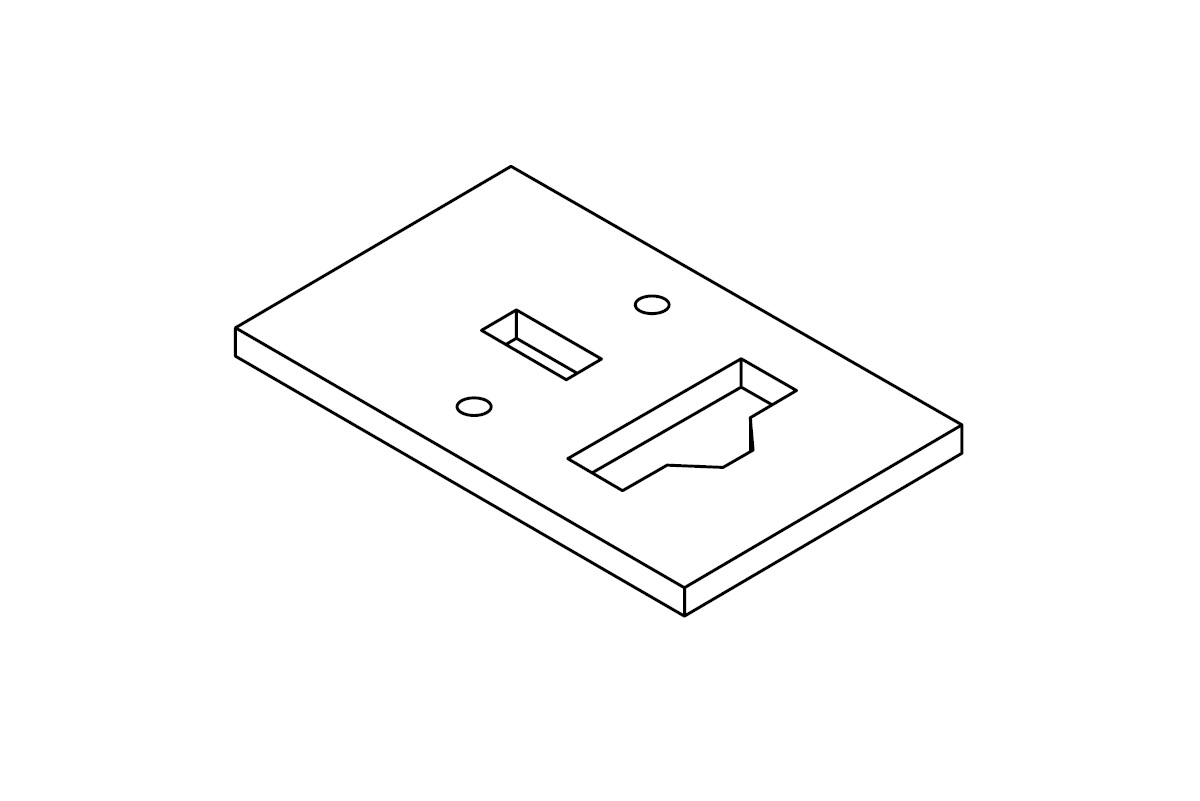

Stake Plate
The EMI Stake Plate makes laying down panels to pour footings very easy. Simply wedge bolt the stake plate to the top edge of the side rail. Pass a nail stake through the hole of the stake plate and drive the nail stake into the ground. The form will stand on edge by itself making it easier to set opposite form and installing base ties.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 051-2200 | Stake Plate | each | 1 | 0.47 |

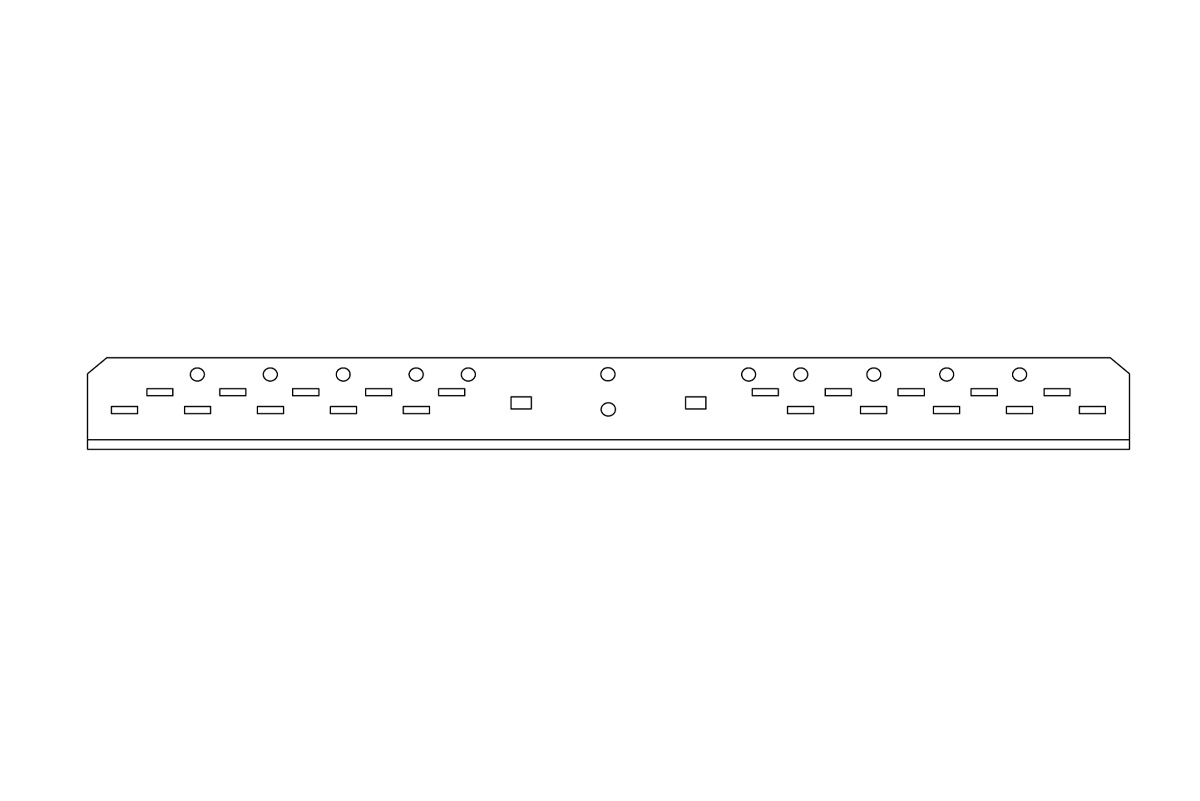

Bulkhead Bar
The Bulkhead Bars can be used for forming bulkheads in walls 4 to 24" wide. Standard wedge bolts attach bulkhead bars to siderails of panels fillers.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 055-3000 | Bulkhead Bar | each | 1 | 6.80 |

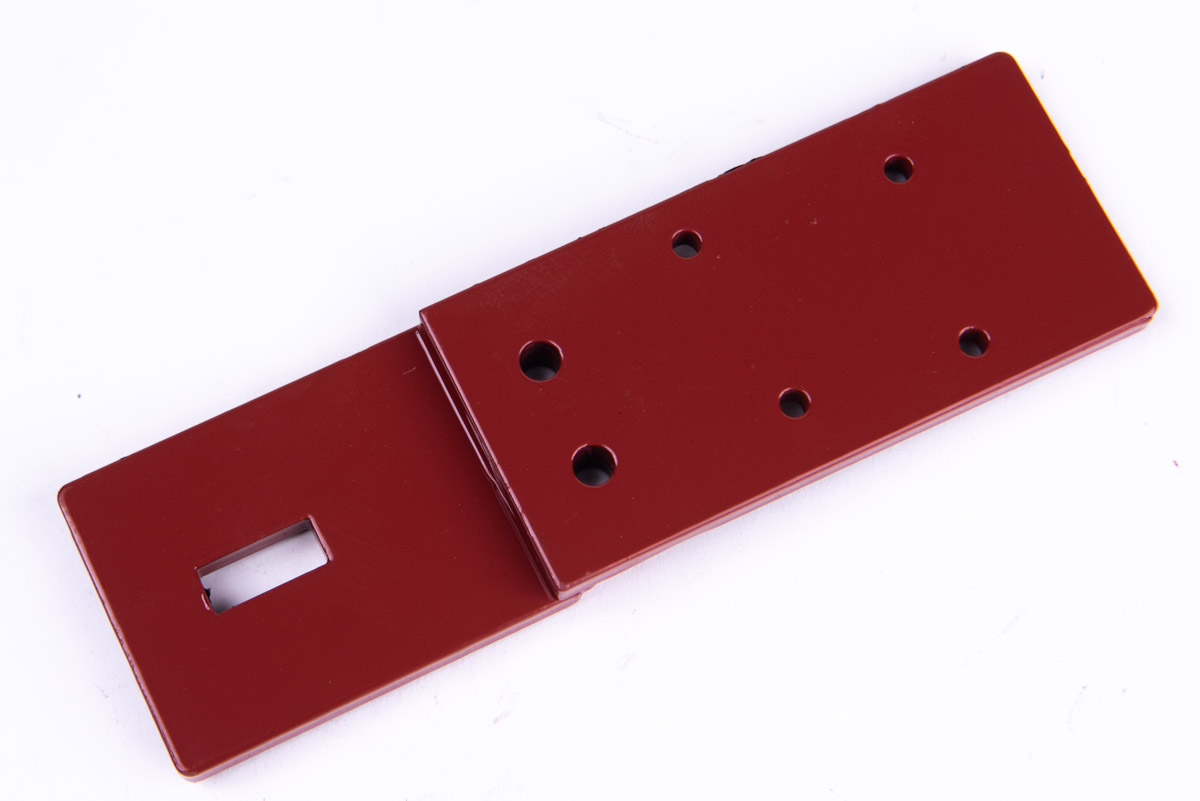

Steel / Plywood Brick Ledge Bracket
The EMI Brick Ledge Bracket wedge bolts to the top of forms and provides holes to nail lumber for a brick ledge. The bracket also allows for panels and fillers to be stacked on top of the brick ledge when grade is extremely sloped to save on lumber.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 055-2004 | Stl/Plywood Brick Ledge Brkt. | each | 1 | 1.00 |

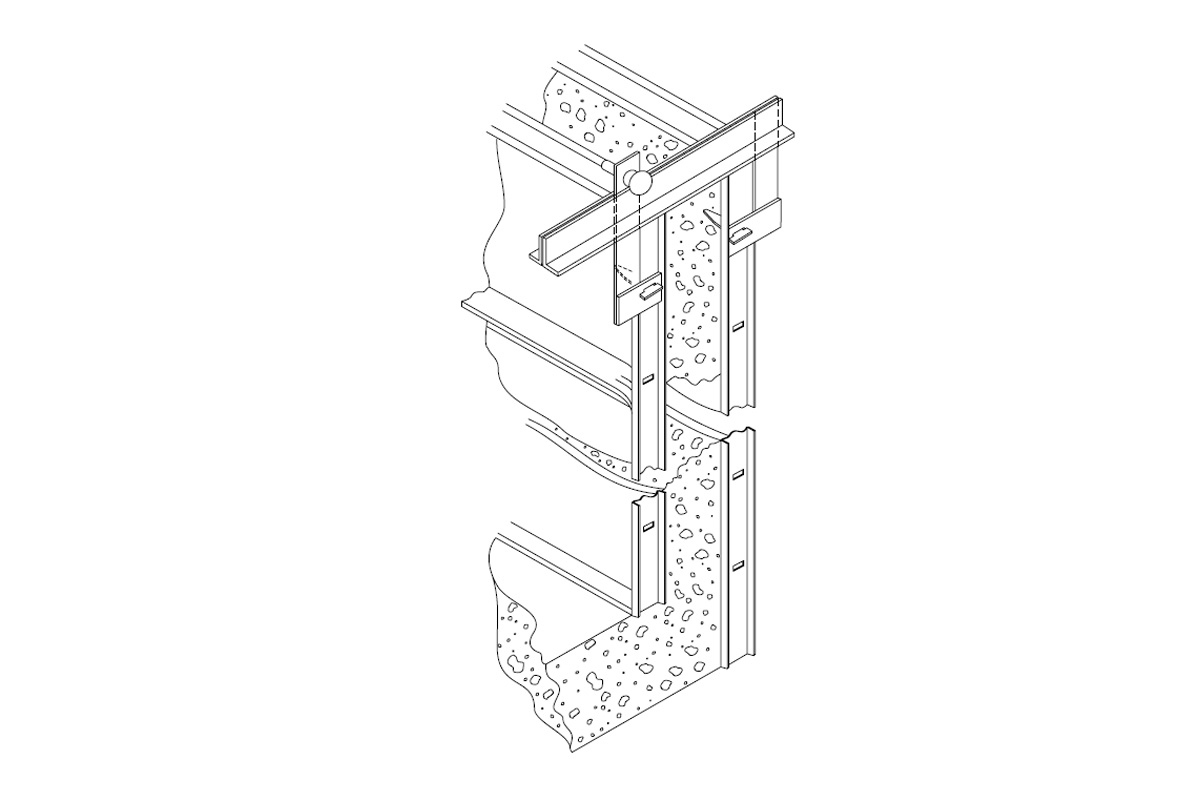

Cantilever Bracket
The EMI Cantilever Bracket is used to suspend a form on the opposite side of the wall so that a base slab can be monolithically poured with the wall. Maximum capacity is 700 lbs. Maximum spacing is 8' when panels are vertical and spacing is not to exceed panel length when forms are horizontal.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 051-6000 | Cantilever Bracket | each | 1 | 12.00 |

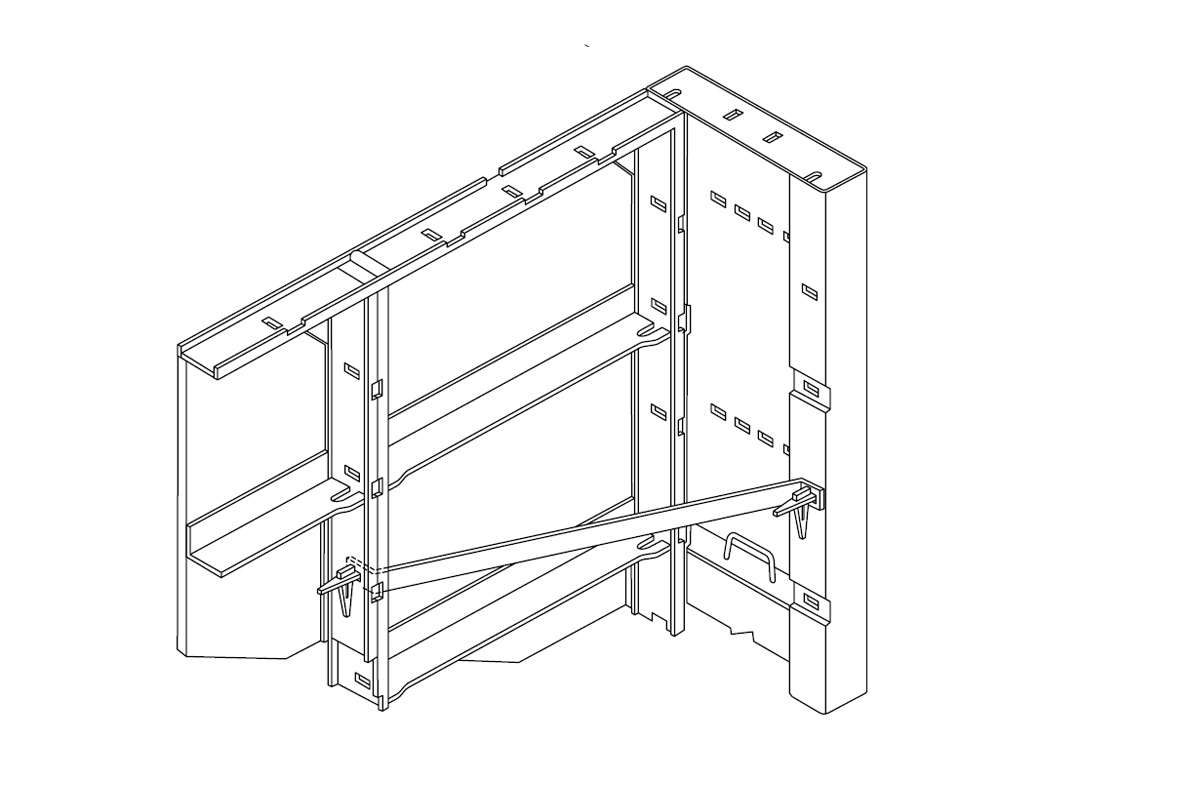

Pilaster Brace
The Pilaster Brace is used for bracing pilaster forms to the adjacent panel. Attach one brace 6-18 inches down from the top of the pilaster form and one brace 6-18 inches up from the bottom of the pilaster form. Pilaster Braces are needed only on one side of the pilaster.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 310-0001 | Pilaster Brace | each | 1 | 4.00 | 0 |
