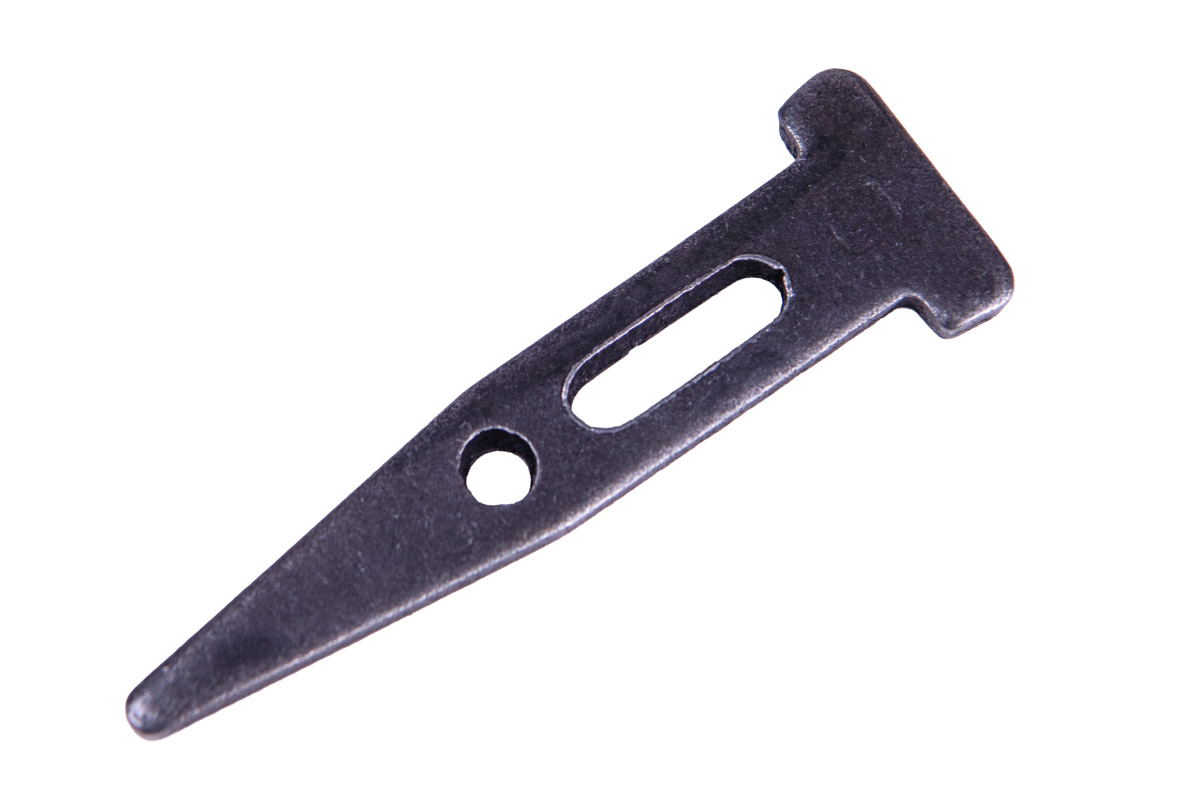

Standard Wedge Bolt
The Standard Wedge Bolt is the most common wedge bolt used to assemble forms.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 050-0001 | Std. Wedge Bolt | pail | 250 | 28.00 | 15000 |

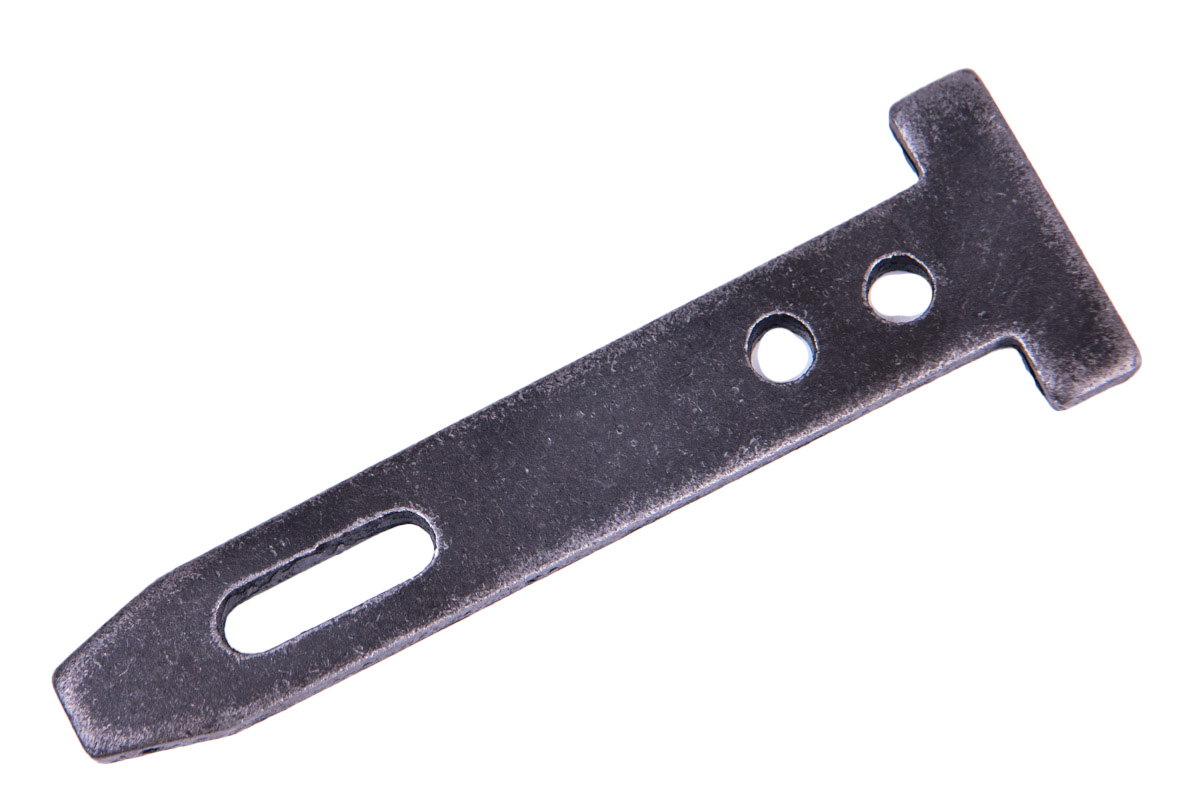

Long Wedge Bolt
The Long Wedge Bolt is used when attaching steel fillers to panels and fillers.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 050-0002 | Long Wedge Bolt | pail | 250 | 39.00 | 15000 |

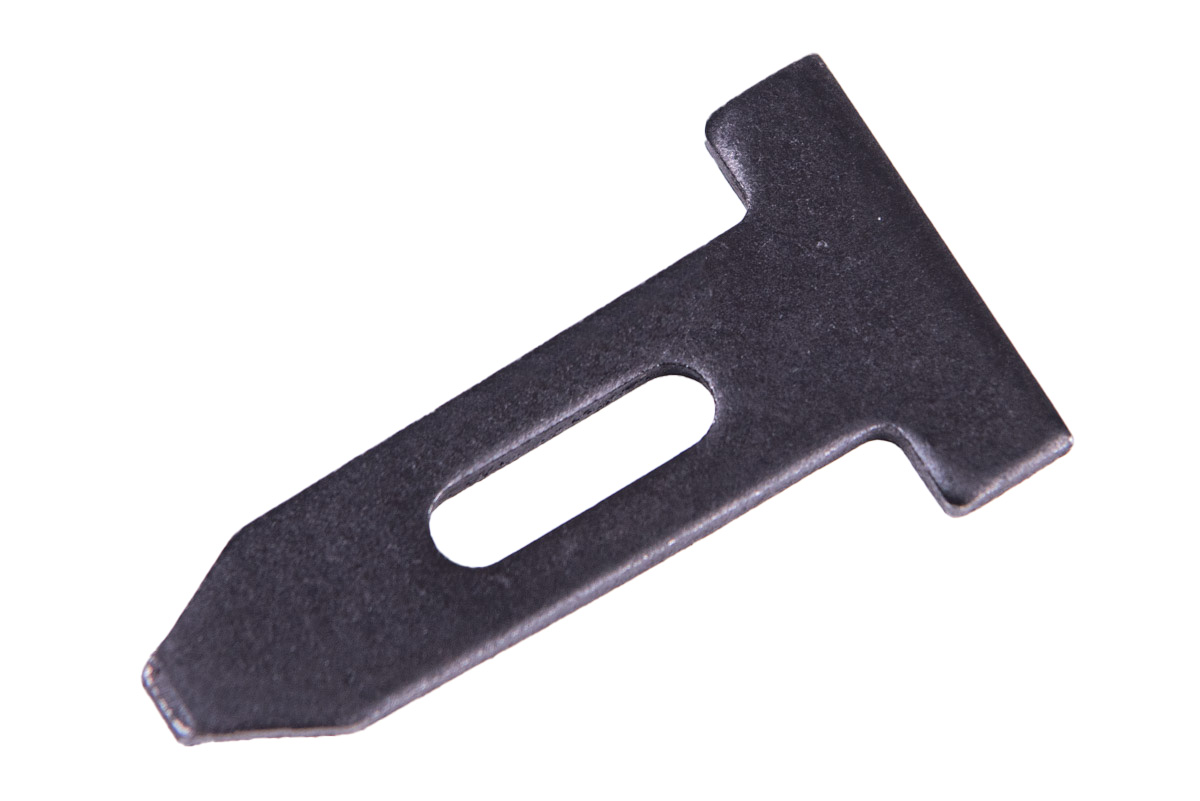

Short Wedge Bolt
The short bolt eliminates the need to short stop standard wedge bolts. Can be used to attach inside corners and pilaster forms to Steel/Plywood forms.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 050-1001 | Short Wedge Bolt | pail | 250 | 24.00 | 15000 |

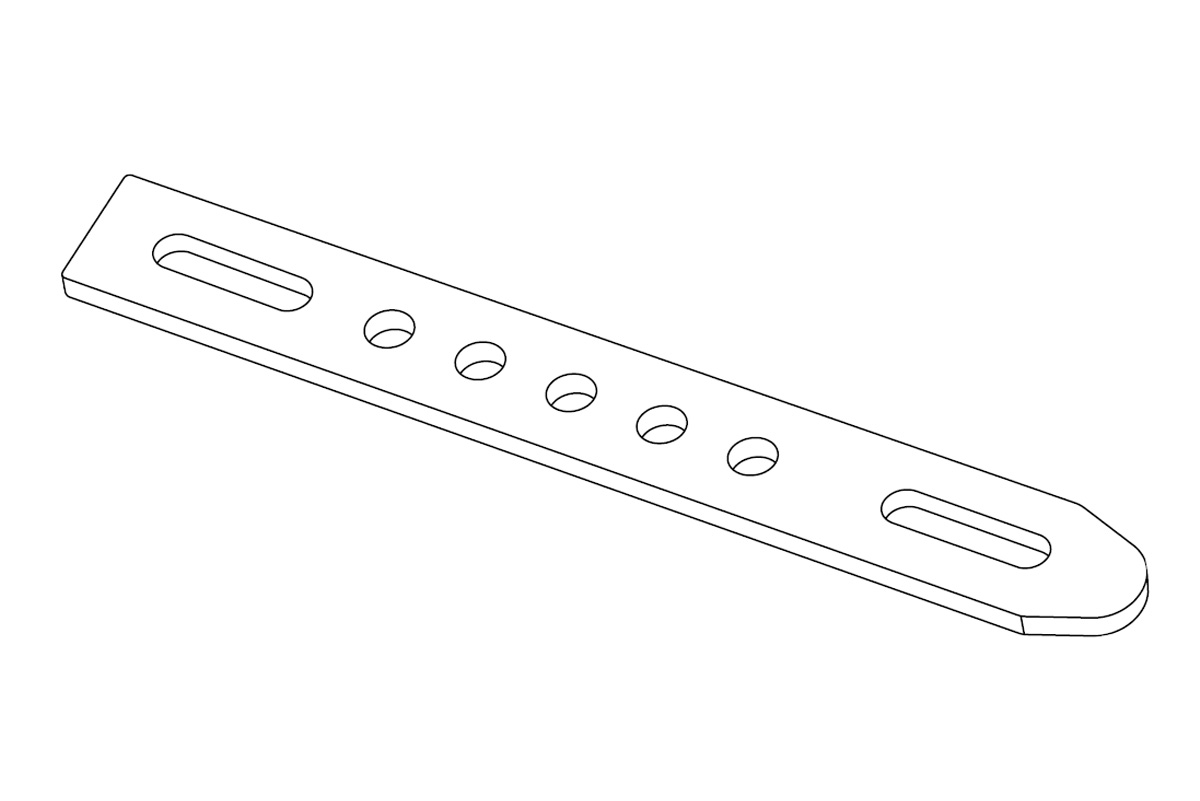

Adjustable Wedge Bolt
Adjustable Wedge Bolt is used to attach steel fillers to panels and fillers. Works well when 2 steel fillers are next to each other.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 054-2012 | Adjustable Wedge | box | 100 | 18.00 |

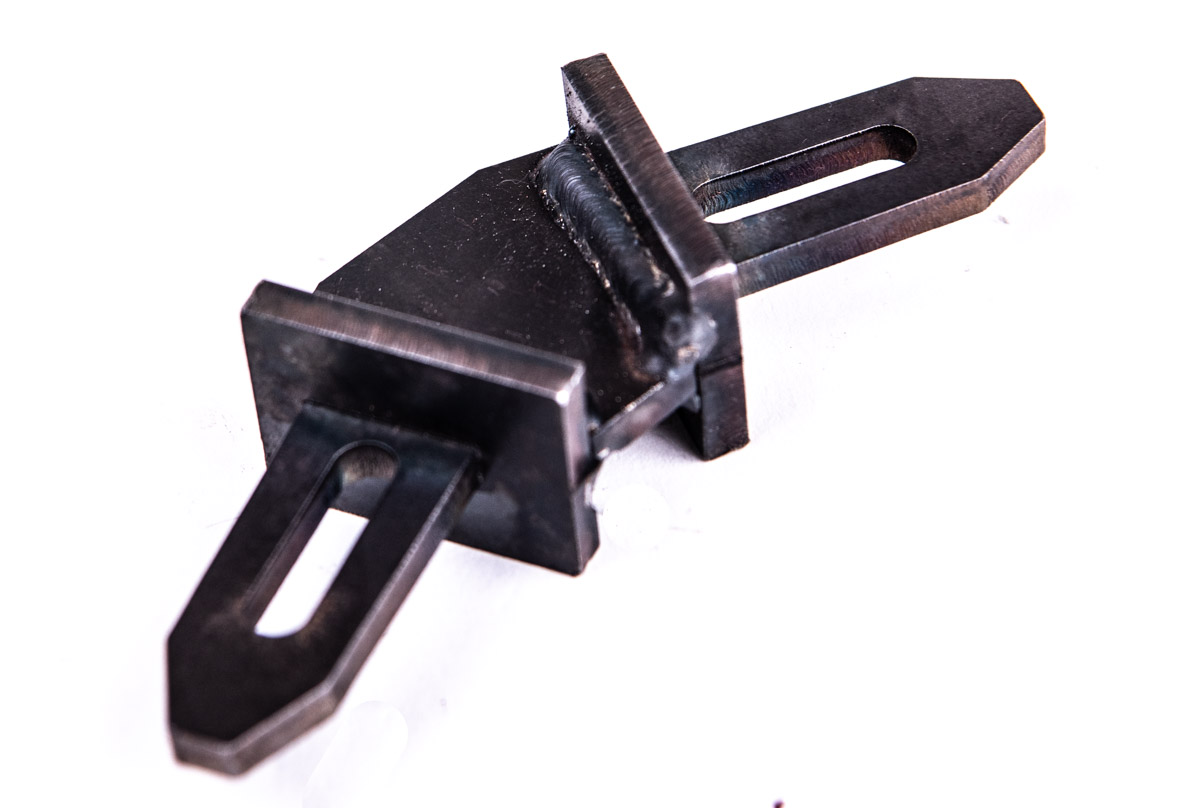

45 Degree Wedge Bolt
EMI’s 45 Degree Wedge Bolts are another way to connect panels at a 45 degree angle.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 050-6000 | 45º Wedge Bolt | each | 1 | 0.30 |

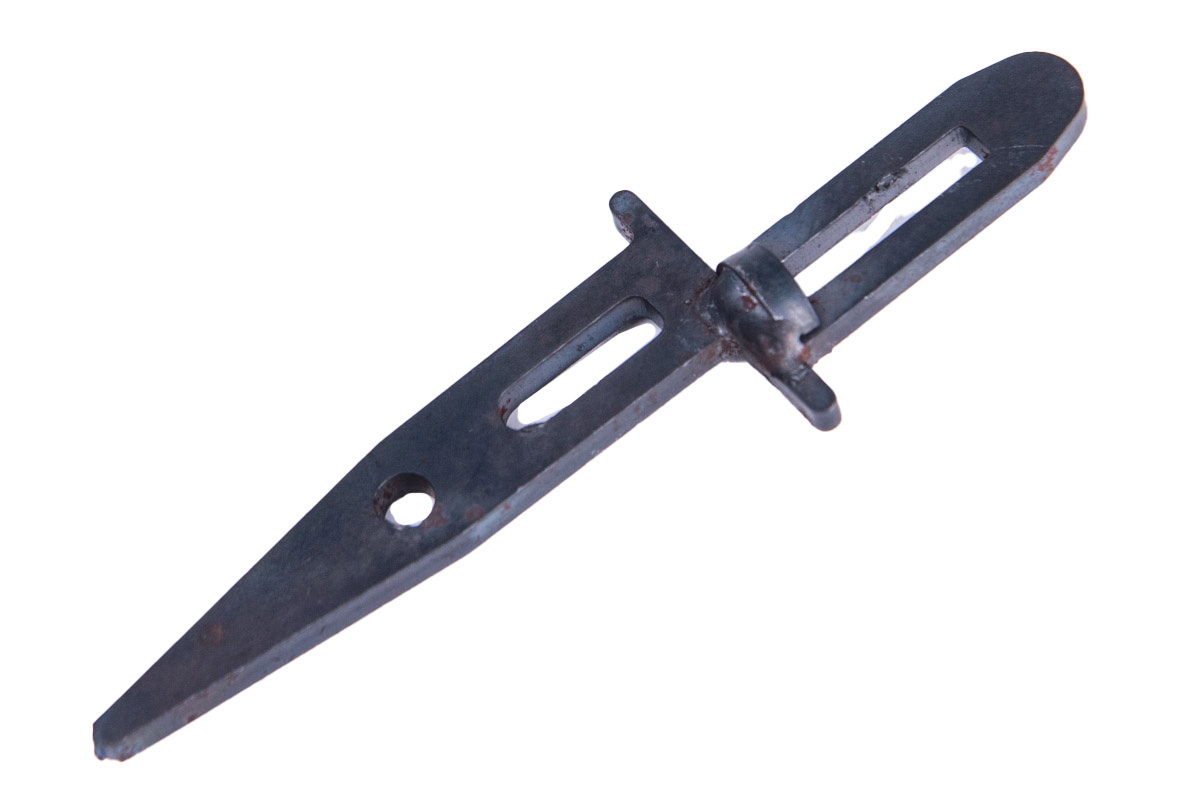

The Adapter Pin allows for Aluminum Forms to be attached to Elite Steel/Plywood Forms and Fillers.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 050-0651 | Connect Alum. to Stl/Plywood | each | 1 | 0.18 |

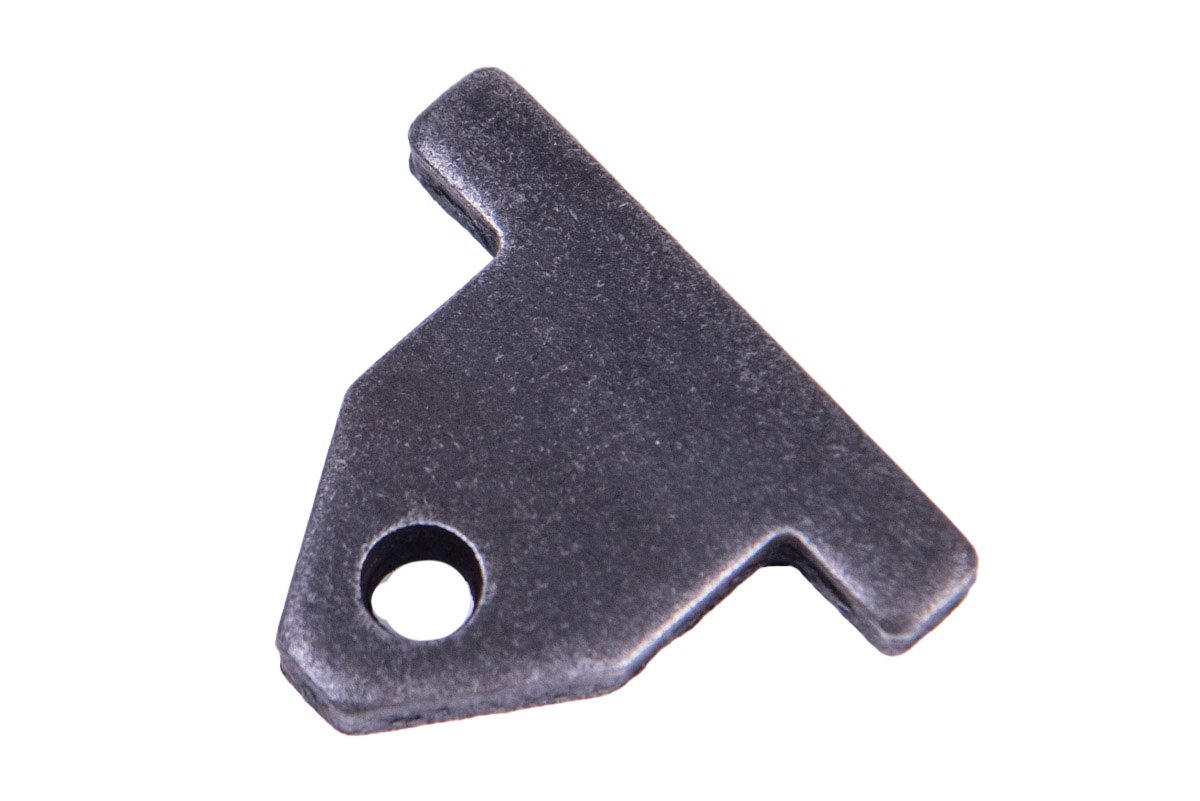

The Base Tie Wedge is used when a tie is required at the base of the forms.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 050-1003 | Base Tie Wedge | pail | 250 | 11.00 | 15000 |

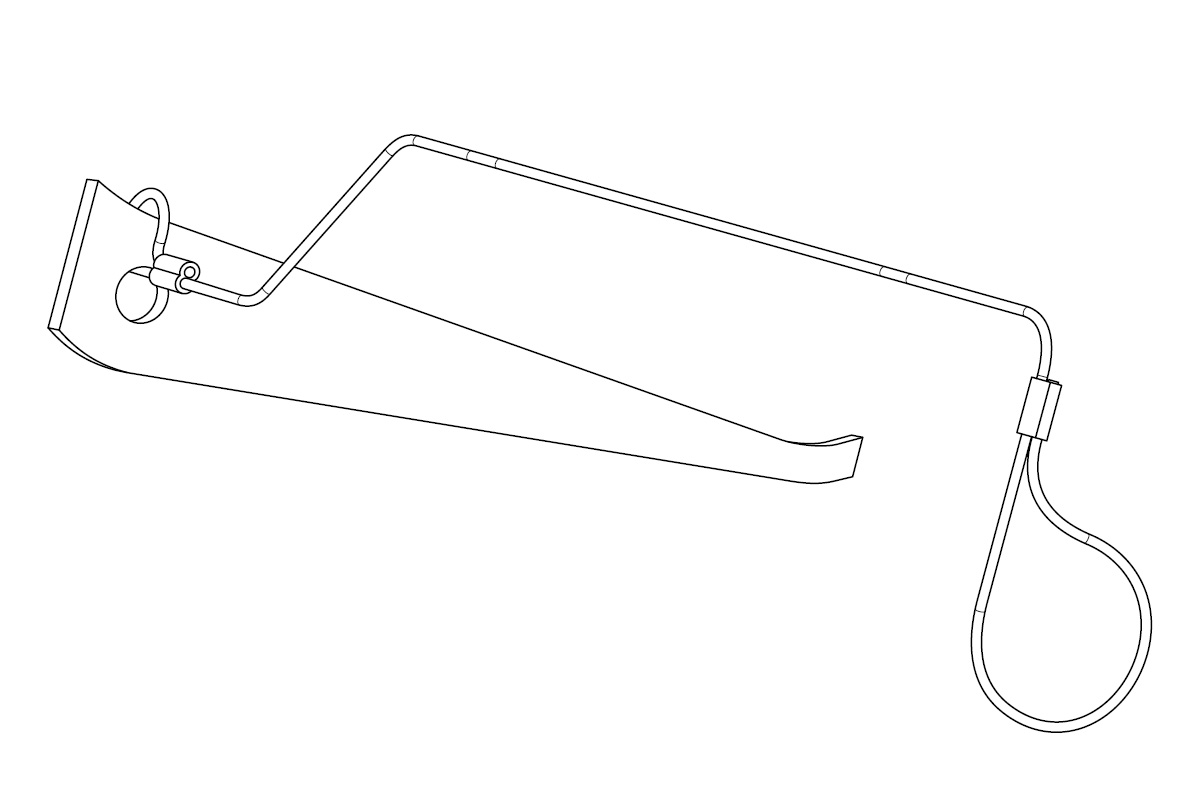

The S-Wedge is used to secure many Steel/Plywood accessories such as scaffold brackets, ply lags and base ties or anywhere those common slots are available.
*The S-Wedge Cable Kit comes with S-Wedge and crimped cable, ready to attach to a scaffold bracket.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 054-2011 | S-Wedge | pail | 250 | 44.00 | |
| 054-2011-CK | S-Wedge Cable Kit* | each | 1 | 0.19 |
Lift Bracket Bolt
Lift Bracket Bolt is used to attach double duty lift bracket.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 050-0003 | Lift Bracket Bolt | box | 50 | 8.00 |

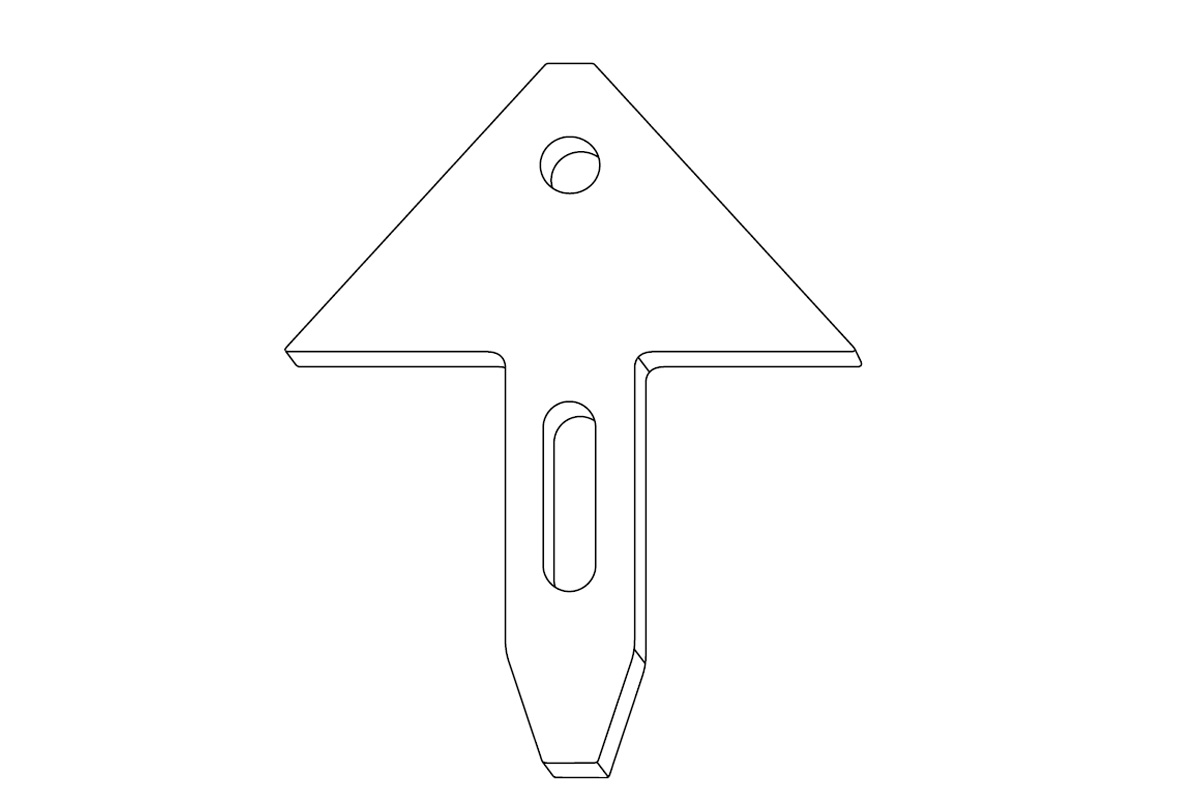

Guide Bolt
The Guide Bolt is used with the Adjustable Shear Wall Bracket. It locks the head plate slot of the Adjustable Shear Wall Bracket with a standard wedge bolt. The Guide Bolt provides a slope to help guide in ganged forms into the proper position.
| Part Number | Description | Unit | Sold As | Unit Wgt (lbs.) | Skid Qty |
|---|---|---|---|---|---|
| 051-2400 | Guide Bolt | each | 1 | 0.10 |
